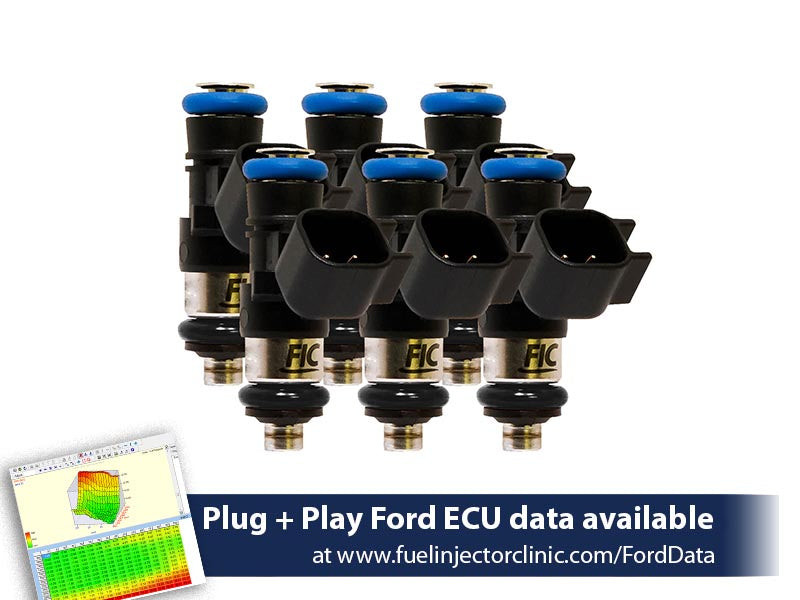

Fuel Injector Clinic 850cc Injector Set (is461-0850h) - 2011-2017 Ford Mustang V6
Upgrade the fueling capability of your 2011-2017 Ford Mustang V6 with the Fuel Injector Clinic 850cc high-impedance injector set. This matched set of six injectors flows 850cc/min, or 81 lbs/hr, at 43.5 PSI fuel pressure, providing increased fuel capacity for modified and higher-horsepower Mustang builds while maintaining the precise control needed for excellent drivability. Designed as a true drop-in solution for both injector size and electrical plug, the is461-0850h delivers straightforward installation without requiring an injector plug conversion.
Fuel Injector Clinic combines excellent linearity and short pulse width repeatability with its proprietary Data Match Technology to provide consistent fuel delivery across all six cylinders. Each injector is individually serial numbered, with detailed matching results supplied on the Data Match Sheet for accurate calibration. FIC flow tests and rates these injectors at 43.5 PSI / 3 Bar and 90 degrees F fuel temperature using CF-16B calibration fluid. Plug-and-play Ford ECU data is also available from Fuel Injector Clinic to help simplify the tuning process.
Specifications
- Part Number: is461-0850h
- Application: 2011-2017 Ford Mustang V6
- Injector Quantity: 6
- Flow Rate: 850cc/min
- Flow Rate at 43.5 PSI: 81 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Fitment: Drop-in for injector size and electrical plug
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 850cc/min high-impedance fuel injectors
- 81 lbs/hr flow rating at 43.5 PSI fuel pressure
- Designed for 2011-2017 Ford Mustang V6 applications
- Drop-in injector dimensions for straightforward installation
- Drop-in electrical plug with no connector conversion required
- Excellent linearity across the injector operating range
- Superior short pulse width control and repeatability
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Detailed Data Match Sheet provides flow matching and latency information
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Plug-and-play Ford ECU calibration data available from Fuel Injector Clinic
- Includes the O-rings required for the listed factory application
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Data Match Technology for Precise Fuel Delivery
Consistent fueling across all six cylinders is critical when increasing the performance of your Mustang V6. Fuel Injector Clinic uses its proprietary Data Match Technology to precisely match the injectors within each is461-0850h set. Every injector is individually serial numbered, and the supplied Data Match Sheet provides detailed flow matching and latency information. This gives your tuner accurate injector data for more precise calibration and consistent fuel delivery throughout the operating range.
More Fuel Capacity Without Sacrificing Control
The FIC 850cc injector provides significantly increased fuel capacity while retaining the characteristics needed for a responsive street-driven Mustang. Excellent linearity and superior short pulse width control help tuners accurately manage fuel delivery during idle and part-throttle operation while providing the additional flow required as engine load and horsepower increase. For performance builds that have outgrown the factory injectors, the is461-0850h delivers a strong balance of flow capacity, tunability, and drivability.
True Drop-In Mustang V6 Installation
The is461-0850h injector set is engineered as a drop-in solution for the listed 2011-2017 Ford Mustang V6 application. Both the injector dimensions and electrical plug are configured for the factory application, eliminating the need for a plug conversion. Fuel Injector Clinic also supplies the O-rings required for factory fitment, helping make this a straightforward upgrade for compatible factory fuel-system configurations.
Fitment
- 2011 Ford Mustang V6
- 2012 Ford Mustang V6
- 2013 Ford Mustang V6
- 2014 Ford Mustang V6
- 2015 Ford Mustang V6
- 2016 Ford Mustang V6
- 2017 Ford Mustang V6
Fitment Note: Fuel Injector Clinic configures these injectors with the O-rings required for the listed factory application. If your Mustang uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to confirm proper fitment.
FAQs
Are Fuel Injector Clinic is461-0850h injectors a drop-in fit for the 2011-2017 Mustang V6?
Yes. Fuel Injector Clinic specifies the is461-0850h as drop-in for both injector size and electrical plug on the listed Mustang V6 application, so no injector plug conversion is required.
What tuning information is available for the FIC is461-0850h injector set?
Each injector is individually serial numbered, and detailed flow matching and latency information is supplied on the Data Match Sheet. Fuel Injector Clinic also makes plug-and-play Ford ECU data available to help tuners accurately calibrate the injector set.
Why Buy from Beefcake Racing?
Beefcake Racing specializes in Ford performance and has the experience to help match your fuel system to your Mustang's power goals. Whether you are upgrading injectors for a naturally aspirated build, forced-induction combination, or complete fuel-system upgrade, our team can help you choose the right components for your setup.
Questions about Fuel Injector Clinic part number is461-0850h or your Mustang V6 fuel system? Email Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
