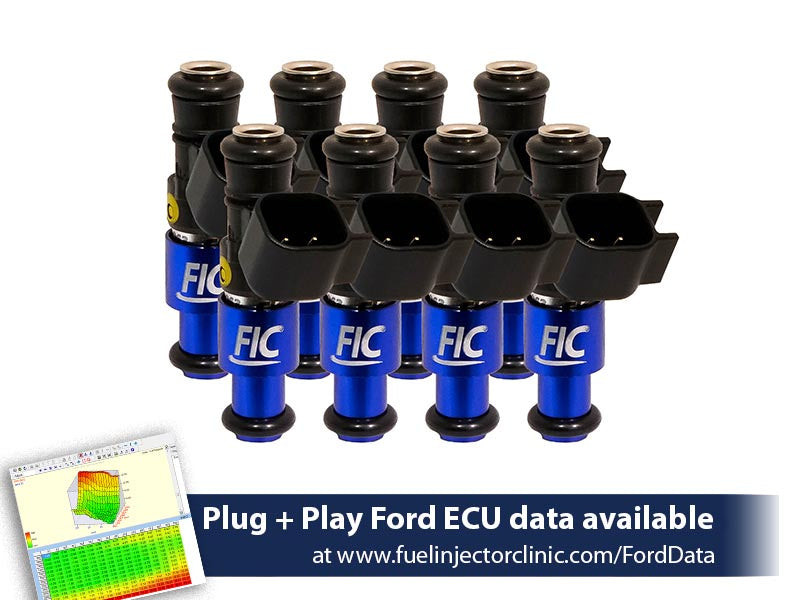

Fuel Injector Clinic 1440cc High-Z Injector Set (is404-1440h) - 2007-2014 Shelby GT500 / 2011-2023 Mustang Whipple, Loki, Odin / 2011-2020 F-150 Whipple, Loki, Odin
Give your high-horsepower Ford the fuel capacity it needs with the Fuel Injector Clinic 1440cc High-Z injector set. Designed for 2007-2014 Shelby GT500 applications as well as the title-listed Mustang and F-150 applications equipped with Whipple, Loki, or Odin supercharger setups, this matched set of eight injectors flows 1440cc/min, or 140 lbs/hr, at 43.5 PSI fuel pressure. The is404-1440h combines serious fuel capacity with excellent linearity, short pulse width control, and street-friendly injector behavior, making it a strong choice for builds that need substantial fueling capability without sacrificing tunability and drivability.
Fuel Injector Clinic's 1440cc high-impedance injector uses stainless alloy valve construction for broad fuel compatibility, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Every set is precisely matched using FIC's proprietary Data Match Technology, with each injector individually serial numbered and documented on the supplied Data Match Sheet. FIC flow tests and rates these injectors at 43.5 PSI / 3 Bar and 90 degrees F fuel temperature using CF-16B calibration fluid, while plug-and-play Ford ECU data is available to support accurate tuning.
Specifications
- Part Number: is404-1440h
- Injector Quantity: 8
- Flow Rate: 1440cc/min
- Flow Rate at 43.5 PSI: 140 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Valve Construction: Stainless alloy
- Connector: Factory-style electrical connector
- Installation: Drop-in electrical fitment with no plug conversion required
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for applicable factory configurations
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Eight 1440cc/min High-Z performance fuel injectors
- 140 lbs/hr flow rating at 43.5 PSI fuel pressure
- High-impedance saturated ball and seat injector design
- Substantial fuel capacity for high-horsepower Ford applications
- Excellent idle performance for a high-flow injector
- Excellent linearity throughout the injector operating range
- Superior short pulse width control and repeatability
- Stainless alloy valve construction for broad fuel compatibility
- Compatible with pump gasoline and E85
- Compatible with Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Detailed Data Match Sheet provides flow matching and latency information
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Plug-and-play Ford ECU calibration data available from Fuel Injector Clinic
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
1440cc Fuel Capacity for Serious Ford Performance
The FIC 1440cc injector fills the performance gap between the 1200cc and 1650cc offerings, giving high-output Ford combinations substantial fuel capacity without immediately stepping to the larger 1650cc injector. Excellent linearity and short pulse width control help the ECU accurately manage fueling during idle and part-throttle operation, while 1440cc/min of flow provides the additional capacity required as boost, engine load, and horsepower increase.
Data Match Technology for Precise Tuning
Consistent injector performance across all eight cylinders is critical in a high-horsepower supercharged combination. Fuel Injector Clinic precisely matches each is404-1440h set using proprietary Data Match Technology. Every injector is individually serial numbered, and its results are documented on the supplied Data Match Sheet. Detailed flow matching and latency information gives your tuner accurate injector data for consistent cylinder-to-cylinder fueling and precise calibration throughout the operating range.
Broad Fuel Compatibility
Stainless alloy valve construction gives the FIC 1440cc injector the versatility required for a wide range of street and competition fuels. These injectors are compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. That flexibility makes the is404-1440h an excellent option for performance builds where fuel choice may change as power goals evolve.
High Flow Without Sacrificing Drivability
Fuel Injector Clinic designed the 1440cc injector to deliver more than just peak fuel volume. Excellent idle performance, linearity, and superior short pulse width control allow a properly calibrated ECU to maintain precise fueling during low-load operation while still supplying the volume demanded by aggressive supercharged combinations. For street-driven performance vehicles, that balance between flow capacity and control is critical.
Fitment
- 2007 Ford Shelby GT500
- 2008 Ford Shelby GT500
- 2009 Ford Shelby GT500
- 2010 Ford Shelby GT500
- 2011 Ford Shelby GT500
- 2012 Ford Shelby GT500
- 2013 Ford Shelby GT500
- 2014 Ford Shelby GT500
- 2011 Ford Mustang with Whipple / Loki / Odin
- 2012 Ford Mustang with Whipple / Loki / Odin
- 2013 Ford Mustang with Whipple / Loki / Odin
- 2014 Ford Mustang with Whipple / Loki / Odin
- 2015 Ford Mustang with Whipple / Loki / Odin
- 2016 Ford Mustang with Whipple / Loki / Odin
- 2017 Ford Mustang with Whipple / Loki / Odin
- 2018 Ford Mustang with Whipple / Loki / Odin
- 2019 Ford Mustang with Whipple / Loki / Odin
- 2020 Ford Mustang with Whipple / Loki / Odin
- 2021 Ford Mustang with Whipple / Loki / Odin
- 2022 Ford Mustang with Whipple / Loki / Odin
- 2023 Ford Mustang with Whipple / Loki / Odin
- 2011 Ford F-150 with Whipple / Loki / Odin
- 2012 Ford F-150 with Whipple / Loki / Odin
- 2013 Ford F-150 with Whipple / Loki / Odin
- 2014 Ford F-150 with Whipple / Loki / Odin
- 2015 Ford F-150 with Whipple / Loki / Odin
- 2016 Ford F-150 with Whipple / Loki / Odin
- 2017 Ford F-150 with Whipple / Loki / Odin
- 2018 Ford F-150 with Whipple / Loki / Odin
- 2019 Ford F-150 with Whipple / Loki / Odin
- 2020 Ford F-150 with Whipple / Loki / Odin
Fitment Note: Fitment for Mustang and F-150 applications is intended for the title-listed Whipple, Loki, or Odin supercharger configurations. Because supercharger and fuel-system combinations can vary, contact Beefcake Racing before ordering if your vehicle uses an aftermarket fuel rail or another non-standard fuel-system configuration.
FAQs
What applications does the Fuel Injector Clinic is404-1440h fit?
The is404-1440h is intended for the title-listed 2007-2014 Shelby GT500 applications, 2011-2023 Mustangs equipped with Whipple, Loki, or Odin supercharger configurations, and 2011-2020 F-150s equipped with Whipple, Loki, or Odin supercharger configurations.
What fuels can the FIC is404-1440h 1440cc injectors use?
Fuel Injector Clinic's stainless alloy valve construction provides broad fuel compatibility. The 1440cc injectors are compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels.
Why Buy from Beefcake Racing?
Beefcake Racing specializes in Ford performance, supercharger combinations, and high-horsepower fuel-system upgrades. Whether you are building a Shelby GT500, supercharged Mustang, or boosted F-150, our experienced team can help you select injectors and supporting fuel-system components that match your combination, fuel choice, and performance goals.
Questions about Fuel Injector Clinic part number is404-1440h or your Ford fuel system? Email Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
