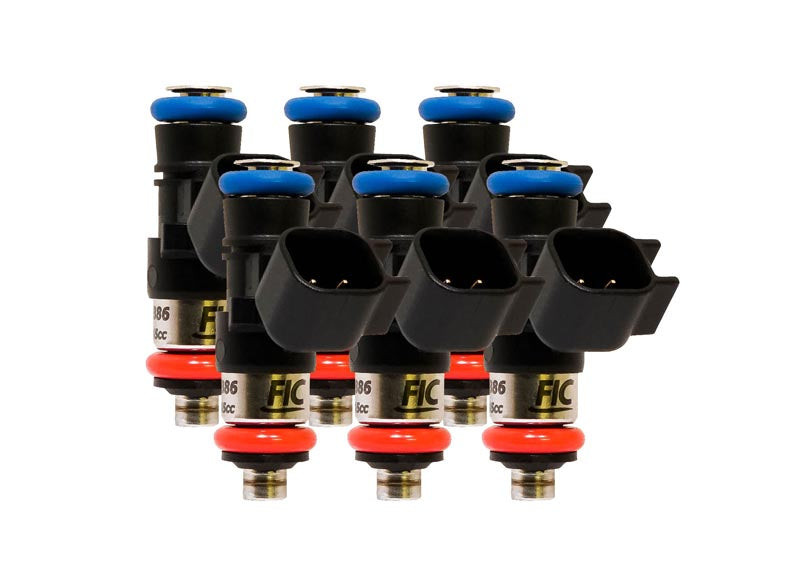

Fuel Injector Clinic 1650cc (180 lbs/hr at OE 58 PSI) Fuel Injector Set - High Z (Jeep 3.6L V6 Engines) (is232-1650h)
Give your Jeep 3.6L V6 the fuel capacity needed for a serious performance build with the Fuel Injector Clinic 1650cc High-Z Fuel Injector Set. Part number is232-1650h includes six saturated, high-impedance injectors rated at 1650cc/min (160 lbs/hr) at 43.5 PSI (3 Bar) and 1900cc/min (180 lbs/hr) at the OE 58 PSI (4 Bar) fuel pressure. Better yet, this injector set features easy-to-install, drop-in fitment with the factory-style connector, so no injector plug conversion is required. With massive flow capability, excellent idle performance, superior short pulse width control, and advanced Data Match Technology, these injectors are built to support high-horsepower combinations without sacrificing the precise fueling and drivability demanded by a street-driven Jeep.
The 1650cc high-impedance injector features stainless alloy valve construction for broad fuel compatibility, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Fuel Injector Clinic precisely matches each set using its proprietary Data Match Technology. Every injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information for the specific injectors in your set. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F using CF-16B calibration fluid.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is232-1650h
- Injector Quantity: 6
- Flow Rating at 43.5 PSI: 1650cc/min (160 lbs/hr)
- Flow Rating at OE 58 PSI: 1900cc/min (180 lbs/hr)
- OE Fuel Pressure: 58 PSI (4 Bar)
- Injector Type: Saturated / high impedance
- Valve Construction: Stainless alloy
- Matching: Fuel Injector Clinic Data Match Technology
- Plug Fitment: Drop-in factory-style connector, no plug conversion required
- FIC Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Seals: Includes the O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1650cc high-impedance fuel injectors for Jeep 3.6L V6 engines
- Flows 1650cc/min (160 lbs/hr) at 43.5 PSI (3 Bar)
- Flows 1900cc/min (180 lbs/hr) at the OE 58 PSI (4 Bar) fuel pressure
- Drop-in fitment with the factory-style electrical connector
- No injector plug conversion required
- High-flow design provides substantial fueling capability for high-horsepower applications
- Excellent idle performance makes these injectors well suited to powerful street-driven combinations
- Stainless alloy valve construction provides broad fuel compatibility
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Proprietary Data Match Technology provides precise injector set matching
- Each injector is individually serial numbered for identification and documentation
- Includes a Data Match Sheet with detailed flow matching and latency information
- Superior short pulse width control supports accurate low-flow fueling and excellent drivability
- State-of-the-art matching helps provide predictable injector behavior for accurate tuning
- Flow tested and rated at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F
- Testing performed using CF-16B calibration fluid
- Supplied with the O-rings required for the listed factory application
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Drop-In Installation
The is232-1650h injector set is designed for easy installation with drop-in fitment and a factory-style electrical connector, so no injector plug conversion is required for the listed factory application. Fuel Injector Clinic also configures the injectors with the O-rings required for proper factory fitment. If your Jeep uses an aftermarket fuel rail or another non-standard fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
Fitment
- Jeep 3.6L V6 Engines
FAQs
Why is the is232-1650h rated at both 1650cc and 1900cc?
Injector flow changes with fuel pressure. Fuel Injector Clinic rates this injector at 1650cc/min (160 lbs/hr) at its standard 43.5 PSI (3 Bar) test pressure. At the Jeep application's OE 58 PSI (4 Bar) fuel pressure, the injector flows 1900cc/min, or 180 lbs/hr.
Do the Fuel Injector Clinic is232-1650h injectors require wiring adapters or a plug conversion?
No. Fuel Injector Clinic specifies drop-in fitment with the factory-style connector for the is232-1650h Jeep 3.6L V6 injector set, so no injector plug conversion is required for the listed factory application.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing specializes in high-performance fuel system upgrades and can help you select the right injectors and supporting components for your Jeep 3.6L V6 build. Whether you have questions about injector sizing, fuel compatibility, fuel pressure, tuning requirements, or aftermarket fuel system fitment, our performance specialists can help you choose the correct components for your combination.
