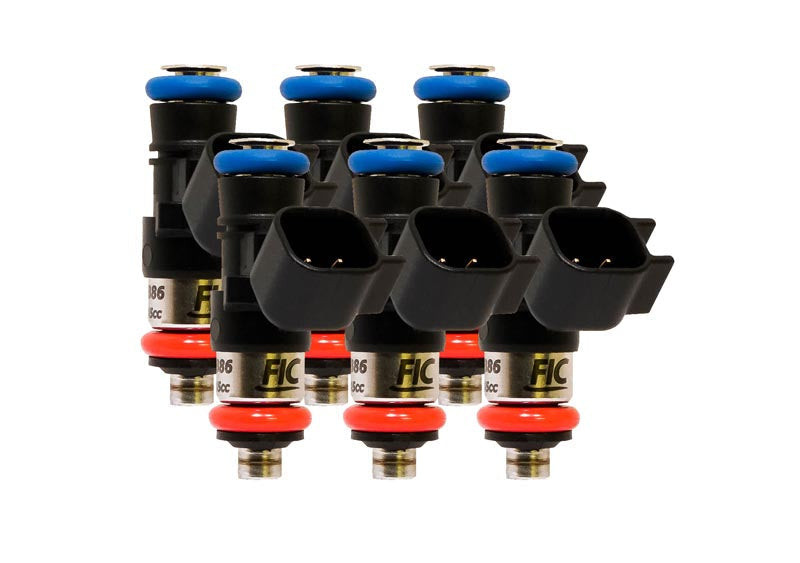

Fuel Injector Clinic 1000cc (100 lbs/hr at OE 58 PSI) Fuel Injector Set - High Z (Jeep 3.6L V6 Engines) (is232-1000h)
Give your Jeep 3.6L V6 the fuel delivery needed for a serious performance build with the Fuel Injector Clinic 1000cc High-Z Fuel Injector Set. Part number is232-1000h includes six saturated, high-impedance injectors rated at 1000cc/min (85 lbs/hr) at 43.5 PSI (3 Bar) and 1040cc/min (100 lbs/hr) at the OE 58 PSI (4 Bar) fuel pressure. With drop-in plug fitment, substantial flow capacity, superior short pulse width control, and advanced Data Match Technology, this set delivers the precise, repeatable fueling needed for accurate tuning without giving up the drivability that matters on the street.
Fuel Injector Clinic precisely matches the is232-1000h set using its proprietary Data Match Technology. Each injector is individually serial numbered, and the included Data Match Sheet provides detailed flow matching and latency information for the specific injectors in your set. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F using CF-16B calibration fluid. State-of-the-art matching and strong short pulse width control help provide predictable injector behavior from idle and part throttle through higher-load operation.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is232-1000h
- Injector Quantity: 6
- Flow Rating at 43.5 PSI: 1000cc/min (85 lbs/hr)
- Flow Rating at OE 58 PSI: 1040cc/min (100 lbs/hr)
- OE Fuel Pressure: 58 PSI (4 Bar)
- Injector Type: Saturated / high impedance
- Matching: Fuel Injector Clinic Data Match Technology
- Plug Fitment: Drop-in
- FIC Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Seals: Includes the O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1000cc high-impedance fuel injectors for Jeep 3.6L V6 engines
- Flows 1000cc/min (85 lbs/hr) at 43.5 PSI (3 Bar)
- Flows 1040cc/min (100 lbs/hr) at the OE 58 PSI (4 Bar) fuel pressure
- Drop-in plug fitment eliminates the need for injector connector conversion
- Proprietary Data Match Technology provides precise injector set matching
- Each injector is individually serial numbered for identification and documentation
- Includes a Data Match Sheet with detailed flow matching and latency information
- Superior short pulse width control supports accurate fueling at idle and part throttle
- State-of-the-art matching helps provide predictable injector behavior for accurate tuning
- High-flow capability provides increased fueling capacity for performance applications
- Flow tested and rated at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F
- Testing performed using CF-16B calibration fluid
- Supplied with the O-rings required for the listed factory application
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Drop-In Installation
The is232-1000h injector set features drop-in plug fitment for the listed Jeep 3.6L V6 application, eliminating the injector connector conversion required by some aftermarket injector sets. Fuel Injector Clinic also configures the injectors with the O-rings required for the factory application. If your Jeep uses an aftermarket fuel rail or another non-standard fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
Fitment
- Jeep 3.6L V6 Engines
FAQs
Why is the is232-1000h rated at both 1000cc and 1040cc?
Injector flow varies with fuel pressure. Fuel Injector Clinic rates this injector at 1000cc/min (85 lbs/hr) at its standard 43.5 PSI (3 Bar) test pressure. At the Jeep application's OE 58 PSI (4 Bar) fuel pressure, the injector flows 1040cc/min, or 100 lbs/hr.
Does the Fuel Injector Clinic is232-1000h require injector plug adapters?
No. Fuel Injector Clinic specifies drop-in plug fitment for the is232-1000h Jeep 3.6L V6 injector set. The injectors are also configured with the O-rings required for the listed factory application.
