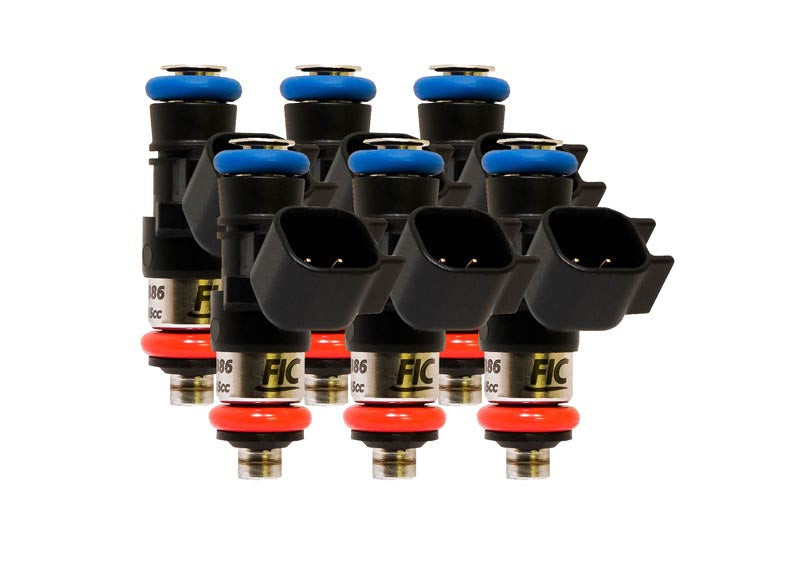

Fuel Injector Clinic 540cc (60 lbs/hr at OE 58 PSI) Fuel Injector Set - High Z (Jeep 3.6L V6 Engines) (is232-0540h)
Upgrade your Jeep 3.6L V6 fuel system with the Fuel Injector Clinic 540cc High-Z Fuel Injector Set. Part number is232-0540h includes six saturated, high-impedance injectors rated at 540cc/min (52 lbs/hr) at 43.5 PSI (3 Bar) and 625cc/min (60 lbs/hr) at the OE 58 PSI (4 Bar) fuel pressure. With drop-in plug fitment, excellent linearity, and repeatable short pulse width performance, this matched injector set provides increased fueling capability while retaining the precise control needed for accurate tuning and excellent drivability.
Fuel Injector Clinic precisely flow matches its high-performance injector sets to within 1%. Each injector is individually numbered, and the results for every injector are documented on the detailed flow sheet included with the set. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F using CF-16B calibration fluid. Superior short pulse width control and tight manufacturing tolerances help deliver consistent fueling across all six cylinders and predictable injector behavior throughout the operating range.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is232-0540h
- Injector Quantity: 6
- Flow Rating at 43.5 PSI: 540cc/min (52 lbs/hr)
- Flow Rating at OE 58 PSI: 625cc/min (60 lbs/hr)
- OE Fuel Pressure: 58 PSI (4 Bar)
- Injector Type: Saturated / high impedance
- Flow Matching: Precisely flow matched to within 1%
- Plug Fitment: Drop-in
- FIC Test Pressure: 43.5 PSI (3 Bar)
- Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Seals: Includes the O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 540cc high-impedance fuel injectors for Jeep 3.6L V6 engines
- Flows 540cc/min (52 lbs/hr) at 43.5 PSI (3 Bar)
- Flows 625cc/min (60 lbs/hr) at the OE 58 PSI (4 Bar) fuel pressure
- Drop-in plug fitment for straightforward installation
- Precisely flow matched to within 1% for consistent fuel delivery across all six cylinders
- Each injector is individually numbered for identification and documentation
- Includes a detailed flow sheet showing the results for each injector in the matched set
- Excellent linearity supports predictable injector operation and accurate tuning
- Superior short pulse width control helps maintain smooth idle and part-throttle drivability
- Tight manufacturing tolerances promote consistent injector performance
- Flow tested and rated at 43.5 PSI (3 Bar) with fuel temperature maintained at 90 degrees F
- Testing performed using CF-16B calibration fluid
- Supplied with the O-rings required for the listed factory application
- Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture
Drop-In Installation
The is232-0540h injector set features drop-in plug fitment for the listed Jeep 3.6L V6 application, eliminating the injector connector conversion required by some aftermarket injector sets. Fuel Injector Clinic also supplies the injectors with the O-rings required for the factory application. If your Jeep uses an aftermarket fuel rail or another non-standard fuel system configuration, contact Beefcake Racing before ordering to verify proper injector fitment.
Fitment
- Jeep 3.6L V6 Engines
FAQs
Why is the is232-0540h listed as both 540cc and 625cc?
Injector flow changes with fuel pressure. Fuel Injector Clinic rates this injector at 540cc/min (52 lbs/hr) at its standard 43.5 PSI (3 Bar) test pressure. At the Jeep application's OE 58 PSI (4 Bar) fuel pressure, the injector flows 625cc/min, or 60 lbs/hr.
Does the Fuel Injector Clinic is232-0540h require injector plug adapters?
No. Fuel Injector Clinic specifies drop-in plug fitment for this Jeep 3.6L V6 injector set. The injectors are also supplied with the O-rings required for the listed factory application.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Beefcake Racing specializes in high-performance fuel system upgrades and can help you select the right injectors and supporting components for your Jeep 3.6L V6 build. Whether you have questions about injector sizing, fuel pressure, tuning requirements, or compatibility with an aftermarket fuel system, our performance specialists can help you choose the correct components for your combination.
