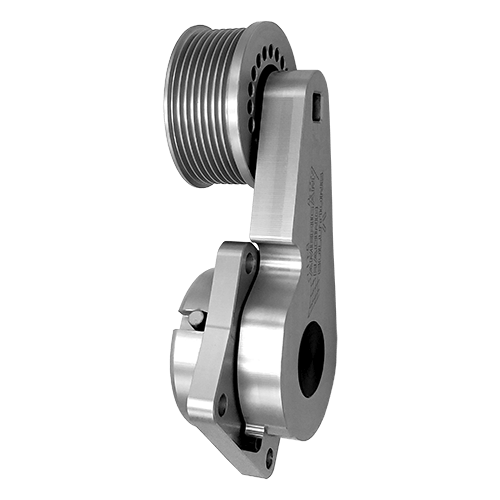

American Racing Solutions Racing Belt Tensioner (ARS9760A) - 2005-2010 Mustang GT / Shelby GT500
Built for extreme horsepower applications, the American Racing Solutions Racing Belt Tensioner is engineered for serious racers running high boost and large supercharger setups. Designed to outperform anything else on the market, this tensioner delivers unmatched strength, stability, and reliability in builds exceeding 1000 horsepower.
Precision machined from 6061-T6 billet aluminum and equipped with a heavy-duty proprietary spring rated between 58-62 lbs, this tensioner provides superior belt control under extreme load. Internally, it features a TGP shaft, hardened bushings, and thrust bearings to ensure smooth operation and long-term durability. Proven on the dyno and track at over 1500 RWHP, this tensioner is designed to reduce or eliminate belt slip, maximizing boost and horsepower.
Extreme Performance Design
This racing tensioner is built specifically for high-boost applications where factory and standard aftermarket tensioners fail. The extended boss design allows for the use of double bearing pulleys, increasing strength and stability under high tension and RPM.
Direct Bolt-On Upgrade
Engineered as a direct replacement for the factory unit, this tensioner installs without brackets, adapters, or modifications. It delivers race-proven performance with a straightforward installation.
Pulley Options
This listing is for the tensioner only. Compatible double bearing pulleys are available separately in 70mm, 76mm, and 90mm sizes, in both smooth and grooved configurations. Ceramic bearing upgrades are also available.
Features
- Designed for 2005-2010 Mustang GT high-performance applications
- Ideal for builds exceeding 1000 horsepower
- Machined from 6061-T6 billet aluminum for maximum strength
- Heavy-duty proprietary spring rated at 58-62 lbs
- Internal TGP shaft, hardened bushings, and thrust bearings
- Extended boss design supports double bearing pulleys
- Reduces or eliminates belt slip for increased boost and horsepower
- Direct bolt-on replacement with no modifications required
- Clear anodized finish for durability and corrosion resistance
- Tested on dyno and track at over 1500 RWHP
- Optional ceramic hybrid bearing upgrade available
- Lifetime guarantee against bending or breaking
Installation Notes
- Requires 1 5/8 inch clearance from mounting surface to front of tensioner
- Tensioner only, pulley sold separately
- Select appropriate pulley size and style for your application
Ceramic Bearing Benefits
- Up to 40 percent lighter than steel balls for reduced rotational mass
- Operates up to 50 percent faster than conventional bearings
- Reduced friction and rolling resistance for improved efficiency
- Significantly longer service life and durability
- Lower heat generation at high RPM
- Improved resistance to corrosion and thermal expansion
Fitment
- 2005 Ford Mustang GT
- 2006 Ford Mustang GT
- 2007 Ford Mustang GT
- 2008 Ford Mustang GT
- 2009 Ford Mustang GT
- 2010 Ford Mustang GT
- 2005 Ford Mustang Shelby GT500
- 2006 Ford Mustang Shelby GT500
- 2007 Ford Mustang Shelby GT500
- 2008 Ford Mustang Shelby GT500
- 2009 Ford Mustang Shelby GT500
- 2010 Ford Mustang Shelby GT500
- 2008 Ford Mustang Bullitt
- 2009 Ford Mustang Bullitt
- 1999 Ford Lightning
- 2000 Ford Lightning
- 2001 Ford Lightning
- 2002 Ford Lightning
- 2003 Ford Lightning
- 2004 Ford Lightning
