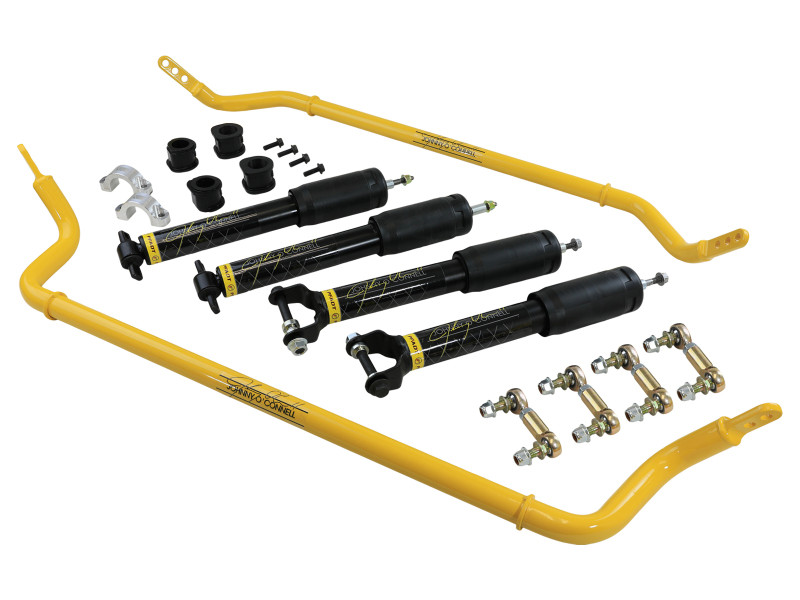

aFe Control Johnny O'Connell Stage 1 Suspension Performance Package (530-401002-J) - 2014-2019 C7 Corvette
Upgrade the handling and ride quality of your 2014-2019 Chevrolet C7 Corvette with the aFe Control Johnny O'Connell Stage 1 Suspension Performance Package. Developed with legendary Corvette racer and four-time Le Mans winner Johnny O'Connell, this package combines adjustable front and rear sway bars with a complete set of specially tuned shock absorbers to deliver improved cornering performance without sacrificing everyday drivability.
Featuring lightweight tubular alloy steel sway bars, heavy-duty end links, and revised shock damping, this bolt-on suspension package is engineered to provide precise handling, improved road holding, and a smoother ride on both the street and track.
Johnny O'Connell Tuned Suspension Package
The Johnny O'Connell Stage 1 Package was developed to balance race-inspired handling with the comfort expected from a street-driven Corvette. Both the sway bars and shock absorbers are tuned to Johnny O'Connell's specifications, providing improved responsiveness and control during cornering and rapid transitions.
The package is designed as a direct-fit suspension upgrade requiring no vehicle modifications for installation.
Adjustable Front and Rear Sway Bars
The Johnny O'Connell Series sway bars are constructed from lightweight, CNC-bent tubular alloy steel for strength and performance. Their adjustable design allows drivers to fine-tune the Corvette's handling characteristics to suit different driving conditions and preferences.
- Front Sway Bar: 35 mm tubular alloy steel with two adjustment positions
- Rear Sway Bar: 32 mm tubular alloy steel with three adjustment positions
- Finish: Signature Johnny O'Connell yellow powder coat
- Construction: Lightweight CNC-bent tubular alloy steel
The adjustable sway bars help improve cornering stability and responsiveness while allowing greater control over the vehicle's handling balance.
Heavy-Duty End Links and Premium Mounting Components
The package includes heavy-duty 1/2-inch heim joint end links with CNC-machined studs and articulation spacers. These components are designed to provide strength and articulation during suspension movement.
CNC-machined 6061-T6 aluminum rear brackets and front and rear polyurethane bushings complete the sway bar mounting system. The aluminum brackets provide a durable mounting solution, while the polyurethane bushings support precise sway bar operation.
Johnny O'Connell Signature Series Shocks
Complementing the adjustable sway bars is a complete set of Johnny O'Connell Signature Series shock absorbers. These shocks feature damping characteristics specifically revised to improve handling performance while maintaining a smooth, controlled ride.
The shock absorbers are tuned to provide the balance of road holding and street comfort intended for the Stage 1 suspension package.
Revised Damping Curve for Improved Ride and Handling
The Johnny O'Connell Signature Series shocks feature a completely revised damping curve designed to reduce the harsh high-speed ride characteristics associated with the factory dampers.
At the same time, the revised damping provides increased suspension platform control to help keep the Corvette planted during cornering and rapid directional changes, including slalom maneuvers and road course driving.
Direct-Fit Bolt-On Installation
The Johnny O'Connell Stage 1 Suspension Performance Package is engineered as a direct-fit upgrade for compatible C7 Corvette models. The sway bars and shocks install without requiring modifications to the vehicle.
Important: Vehicles equipped with Magnetic Ride Control electronic shock absorbers require an additional ride height simulator/delete kit, aFe POWER part number 436-401006-B.
Features
- Complete Stage 1 suspension performance package tuned by four-time Le Mans winner Johnny O'Connell
- Designed for improved cornering performance, handling precision, and street comfort
- 35 mm CNC-bent tubular alloy steel front sway bar
- Two front sway bar adjustment positions
- 32 mm CNC-bent tubular alloy steel rear sway bar
- Three rear sway bar adjustment positions
- Lightweight tubular alloy steel sway bar construction
- Signature Johnny O'Connell yellow powder coat finish
- Heavy-duty 1/2-inch heim joint end links
- CNC-machined end link studs and articulation spacers
- CNC-machined 6061-T6 aluminum rear sway bar brackets
- Front and rear polyurethane sway bar bushings
- Complete set of Johnny O'Connell Signature Series shock absorbers
- Revised shock damping curve for improved ride quality and handling
- Reduces harsh high-speed ride characteristics associated with OEM dampers
- Increased suspension platform control during cornering and rapid transitions
- Suitable for street driving and road course applications
- Direct-fit bolt-on installation with no vehicle modifications required
Specifications
- Brand: aFe Control
- Product Series: Johnny O'Connell Stage 1
- Part Number: 530-401002-J
- Product Type: Suspension Performance Package
- Front Sway Bar Diameter: 35 mm
- Front Sway Bar Adjustability: 2-Way
- Rear Sway Bar Diameter: 32 mm
- Rear Sway Bar Adjustability: 3-Way
- Sway Bar Material: Tubular Alloy Steel
- Sway Bar Finish: Johnny O'Connell Yellow Powder Coat
- Sway Bar Bushings: Polyurethane
- Rear Bracket Material: CNC-Machined 6061-T6 Aluminum
- End Links: Heavy-Duty 1/2-Inch Heim Joint Rod Ends
- End Link Hardware: CNC-Machined Studs and Articulation Spacers
- Shock Absorbers: Complete Johnny O'Connell Signature Series Set
- Shock Damping: Revised Performance Damping Curve
- Installation: Direct Fit, No Modifications Required
Fitment
- 2014 Chevrolet Corvette Stingray (C7) 6.2L V8
- 2015 Chevrolet Corvette Stingray (C7) 6.2L V8
- 2016 Chevrolet Corvette Stingray (C7) 6.2L V8
- 2017 Chevrolet Corvette Stingray (C7) 6.2L V8
- 2018 Chevrolet Corvette Stingray (C7) 6.2L V8
- 2019 Chevrolet Corvette Stingray (C7) 6.2L V8
- 2015 Chevrolet Corvette Z06 (C7) 6.2L Supercharged V8
- 2016 Chevrolet Corvette Z06 (C7) 6.2L Supercharged V8
- 2017 Chevrolet Corvette Z06 (C7) 6.2L Supercharged V8
- 2018 Chevrolet Corvette Z06 (C7) 6.2L Supercharged V8
- 2019 Chevrolet Corvette Z06 (C7) 6.2L Supercharged V8
Important Fitment and Installation Notes
Magnetic Ride Control: Vehicles equipped with factory Magnetic Ride Control (Mag Ride) electronic shock absorbers require an additional ride height simulator/delete kit. Order aFe POWER part number 436-401006-B separately.
Installation: This package is designed for direct-fit installation without modifications to the vehicle. Confirm factory suspension equipment before ordering.
Emissions Disclaimer: This product does not require a CARB Executive Order (EO) number.
CA Residents: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
