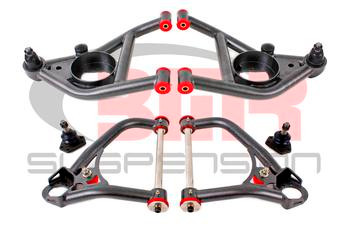

BMR Tubular Upper and Lower A-Arm Kit (AA029H) - 67-69 F-Body / 68-74 X-Body
A-arms are one of the most important, yet overlooked suspension components, serving as the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. Fabricated from heavy-duty 1.25-inch and 1.625-inch DOM steel tubing with laser-cut, CNC-formed plate steel braces, deflection is completely eliminated with this complete upper and lower A-arm kit from BMR Suspension. The kit features upper arms equipped with CNC-machined nickel-plated dual-offset cross-shafts, stainless bushing retainers, new upper ball joints, and polyurethane bump stops, while the lowers come pre-assembled with new lower ball joints.
Engineered for street performance, drag racing, handling, and pro-touring applications, the AA029H kit combines greasable, internally fluted 95-durometer polyurethane bushings with high-strength tubing to eliminate deflection and improve steering response. The upper arms provide two additional degrees of positive caster, revised cross-shaft geometry, and extra header clearance. Note: This specific kit is designed for cars with bump stops installed on the front side of the lower A-arm—please verify your sub-frame configuration before ordering. Finished in a durable black hammertone powdercoat, installation typically takes 4–5 hours.
Note: Control arm hardware kit RH006 (includes upper and lower control arm hardware) is highly recommended for complete installation.
Featuress
- Complete front upper and lower tubular A-arm kit
- Eliminates upper and lower A-arm deflection for precise alignment and handling
- Improves steering feel, response, and high-speed stability
- Fabricated from heavy-duty 1.25-inch and 1.625-inch DOM steel tubing
- Laser-cut, CNC-formed plate steel braces for extra strength
- CNC-machined, nickel-plated, dual-offset cross-shafts with stainless bushing retainers
- Built-in 2 degrees of additional positive caster in the uppers
- Revised geometry and shorter overall length require less shim stack for negative camber
- Provides additional header clearance for larger primary tubes
- Pre-assembled with greasable, internally fluted high-durometer polyurethane bushings
- Includes new upper and lower ball joints and polyurethane bump stops
- Designed for applications with bump stops on the front side of the lower A-arm
- Durable black hammertone powdercoat finish
- 4–5 hour installation time
- Proudly designed and built in the USA
Fitment
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
- 1967 Pontiac Firebird
- 1968 Pontiac Firebird
- 1969 Pontiac Firebird
- 1968 Chevrolet Chevy II
- 1969 Chevrolet Nova
- 1970 Chevrolet Nova
- 1971 Chevrolet Nova
- 1972 Chevrolet Nova
- 1973 Chevrolet Nova
- 1974 Chevrolet Nova
- 1971 Chevrolet Ventura
- 1972 Chevrolet Ventura
- 1973 Chevrolet Ventura
- 1974 Chevrolet Ventura
- 1973 Buick Apollo
- 1974 Buick Apollo
- 1973 Oldsmobile Omega
- 1974 Oldsmobile Omega
