Whipple IAT Harness Kit (20152023 Mustang 5.0L) WHK-15MUSIAT
Overview
The Whipple IAT Harness Kit is designed for supercharged 20152023 Ford Mustang 5.0L owners running non-Whipple calibrations who want accurate intake air temperature readings after the intercooler. From the factory, many setups read IAT from the MAF sensor before the superchargerdata that doesnt reflect true charge air temps once boost and heat are introduced.
This plug-and-play Whipple pigtail relocates the temperature signal to the manifold, allowing your aftermarket tuner to monitor post-intercooler air temperatures for safer, more precise calibration. Its a must-have upgrade for Whipple or Roush supercharger systems that are not using Whipple or Roush-supplied tuning.
Why Post-Intercooler IAT Matters
Accurate IAT data is critical on boosted Coyote engines. Reading temperatures after the intercooler allows your tuner to properly manage spark, fueling, and knock control based on the actual air entering the enginenot the cooler air measured ahead of the supercharger.
By relocating the IAT signal, this harness helps unlock more consistent performance while improving engine safety under real-world driving and high-load conditions.
Performance Highlights
- Reads manifold air temperature after the intercooler
- Improves tuning accuracy for boosted applications
- Essential for non-Whipple and non-Roush calibrations
- Works with Whipple and Roush supercharger systems
Plug-and-Play Design

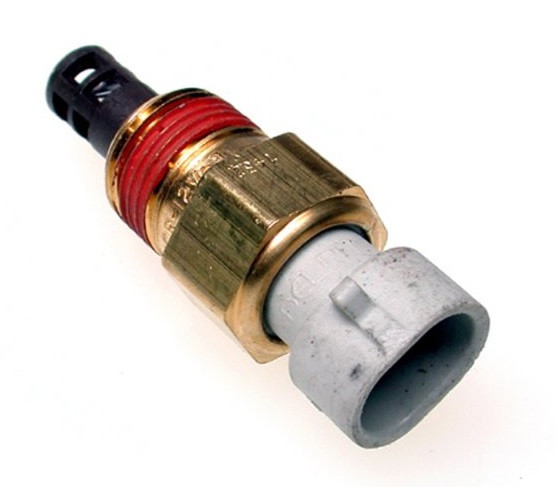

The Whipple IAT harness connects directly to the factory MAF sensor and reroutes the temperature input downstream of the intercooler. The kit includes a brass GM-style IAT sensor, which replaces the factory Ford GT500-style sensor for reliable, consistent readings.
The harness is intentionally built longer than stock to allow universal fitment across a wide range of supercharger layouts, making installation straightforward whether youre working in a home garage or professional shop.
Quick Specs
- Part Number: WHK-15MUSIAT
- Application: 20152023 Mustang 5.0L
- Function: Relocates IAT reading to post-intercooler
- Compatibility: Whipple and Roush supercharger kits
- Sensor Included: Brass GM-style IAT sensor
- Installation: Plug-and-play harness
- Tuning Required: Yes (aftermarket calibration)
Fitment
- 2015 Ford Mustang GT 5.0L
- 2016 Ford Mustang GT 5.0L
- 2017 Ford Mustang GT 5.0L
- 2018 Ford Mustang GT 5.0L
- 2019 Ford Mustang GT 5.0L
- 2020 Ford Mustang GT 5.0L
- 2021 Ford Mustang GT 5.0L
- 2022 Ford Mustang GT 5.0L
- 2023 Ford Mustang GT 5.0L
FAQs
Does this work with the factory Ford tune?
No. This harness requires an aftermarket calibration to function correctly. It is intended for custom-tuned vehicles only.
Is this compatible with Whipple or Roush tuning?
This kit is designed for Whipple or Roush supercharger systems that are not using Whipple or Roush-supplied calibrations. If you are running their factory tuning, this harness is not required.
