Whipple Superchargers Stage 2 No Flash Tool Upgrade Kit Gen 6 3.0L (20162023 Hellcat / Demon / Redeye) WK-3500-S2-30-NFT
Whipple Gen 6 3.0L Stage 2 Supercharger Upgrade for Hellcat, Demon & Redeye

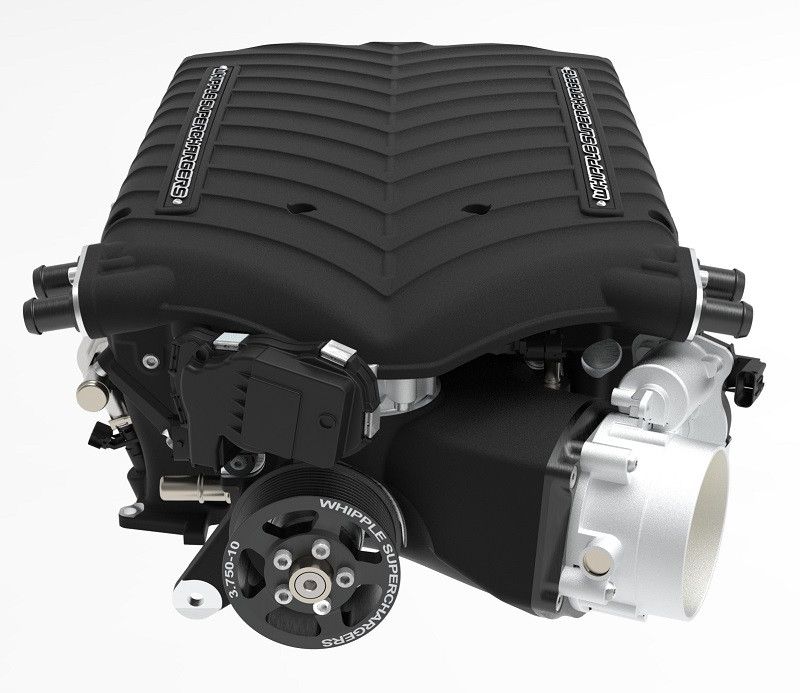

The Whipple Gen 6 3.0L Stage 2 No Flash Tool (NFT) Supercharger Upgrade Kit is the ultimate 50-state-legal bolt-on supercharger upgrade for 20162023 Dodge Hellcat, Demon, and Redeye platforms. Designed for maximum airflow and cooling capacity, the Stage 2 system adds substantial power headroom beyond the factory supercharger while retaining OEM-level fitment and drivability.
This is a No Flash Tool (NFT) configuration. The kit includes NO calibration, NO tuning credits, and NO flash tool. Custom PCM tuning is required.
Built around Whipples industry-leading Gen 6 3.0L twin-screw supercharger, the Stage 2 system includes a billet 112mm throttle body and billet -8AN fuel rails, delivering over 500 horsepower of airflow capacity beyond the factory Hellcat 2.4L supercharger and more than 300 horsepower of additional capacity over the Hellaphant 3.0Lwith no expensive porting required.
Stage 2 Configuration with 112mm Billet Throttle Body
The Stage 2 system is configured for maximum airflow, featuring a billet 112mm throttle body paired with billet -8AN fuel rails and fittings. This setup is engineered for high-horsepower applications where airflow and fuel delivery become critical.
The 112mm inlet opening ensures unrestricted airflow into the supercharger, making this system an ideal foundation for extreme power builds while maintaining emissions compliance.
Patented Dual-Pass, Dual-Core Intercooling Technology
Whipples patented dual-pass, dual-core intercooler system provides unmatched cooling for the supercharged 6.2L HEMI platform. Each intercooler core is 2 inches thick, with dual-pass airflow creating an effective 4 inches of cooling depthdelivering twice the cooling area of any other positive-displacement supercharger in this category.
The inverted supercharger design allows for this massive intercooler layout, while dual-inlet and dual-outlet coolant routing increases water flow and thermal efficiency under sustained load.
Gen 6 Twin-Screw Efficiency and Durability
The Gen 6 Whipple supercharger utilizes precision-machined billet rotors manufactured in the USA, offering superior strength, efficiency, and reduced heat generation compared to cast rotors. This results in cooler charge air temperatures, reduced parasitic loss, and consistent power delivery across the entire RPM range.
A high-flow cold air intake system is included, and the system installs cleanly under the factory hood for an OEM-quality appearance.
Performance Highlights
- Gen 6 3.0L Whipple twin-screw supercharger
- Stage 2 configuration with billet 112mm throttle body
- Billet -8AN fuel rails and fittings included
- Over 500 HP airflow capacity beyond factory Hellcat 2.4L
- Over 300 HP airflow capacity beyond Hellaphant 3.0L
- Patented dual-pass, dual-core intercooler technology
- Inverted supercharger design with massive cooling area
- Cold air intake system included
- No porting or internal engine modifications required
- CARB-certified and 50-state legal hardware
Quick Specs
- Part Number: WK-3500-S2-30-NFT
- Supercharger Displacement: 3.0L
- Supercharger Type: Twin-screw, positive displacement
- Stage: Stage 2 (112mm billet throttle body)
- Inlet Size: 112mm
- Fuel Rails: Billet -8AN rails included
- Intercooling: Dual-core, dual-pass air-to-water
- Cold Air Intake: Included
- Configuration: No Flash Tool (NFT)
- Tuning: NOT included
- Emissions: CARB EO D-231-100
Fitment
- 2016 Dodge Challenger SRT Hellcat 6.2L
- 2017 Dodge Challenger SRT Hellcat 6.2L
- 2018 Dodge Challenger SRT Hellcat 6.2L
- 2019 Dodge Challenger SRT Hellcat / Redeye 6.2L
- 2020 Dodge Challenger SRT Hellcat / Redeye 6.2L
- 2021 Dodge Challenger SRT Hellcat / Redeye 6.2L
- 2022 Dodge Challenger SRT Hellcat / Redeye 6.2L
- 2023 Dodge Challenger SRT Hellcat / Redeye 6.2L
- 2018 Dodge Challenger SRT Demon 6.2L
FAQs
Does this Stage 2 kit include tuning or a flash tool?
No. This is a No Flash Tool (NFT) kit and includes no calibration, no tuning credits, and no flash device. Custom PCM tuning is required.
What makes Stage 2 different from Stage 1?
The Stage 2 system adds a billet 112mm throttle body and billet -8AN fuel rails for increased airflow and fueling capacity, making it better suited for higher horsepower builds.
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized Whipple Superchargers dealer with deep expertise in Hellcat, Demon, and Redeye performance platforms. Our team ensures you select the correct configuration and provides expert support before and after the sale.
