Whipple Stage 2 Gen 6 3.0L Supercharger No Flash Tool Kit (20242026 Mustang GT / Dark Horse)
Overview
The Whipple Stage 2 Gen 6 3.0L Supercharger No Flash Tool (NFT) Kit is the highest-output hardware-only supercharger system available for the 20242026 Ford Mustang S650 GT and Dark Horse. Designed for builders pursuing maximum airflow and power with custom calibration control, this Stage 2 configuration adds upgraded inlet and throttle body hardware to the already dominant Gen 6 platform.
This is a true No Flash Tool (NFT) system. It includes NO calibration, NO tuning credits, and NO flash tool. Custom PCM tuning or standalone engine management is required.

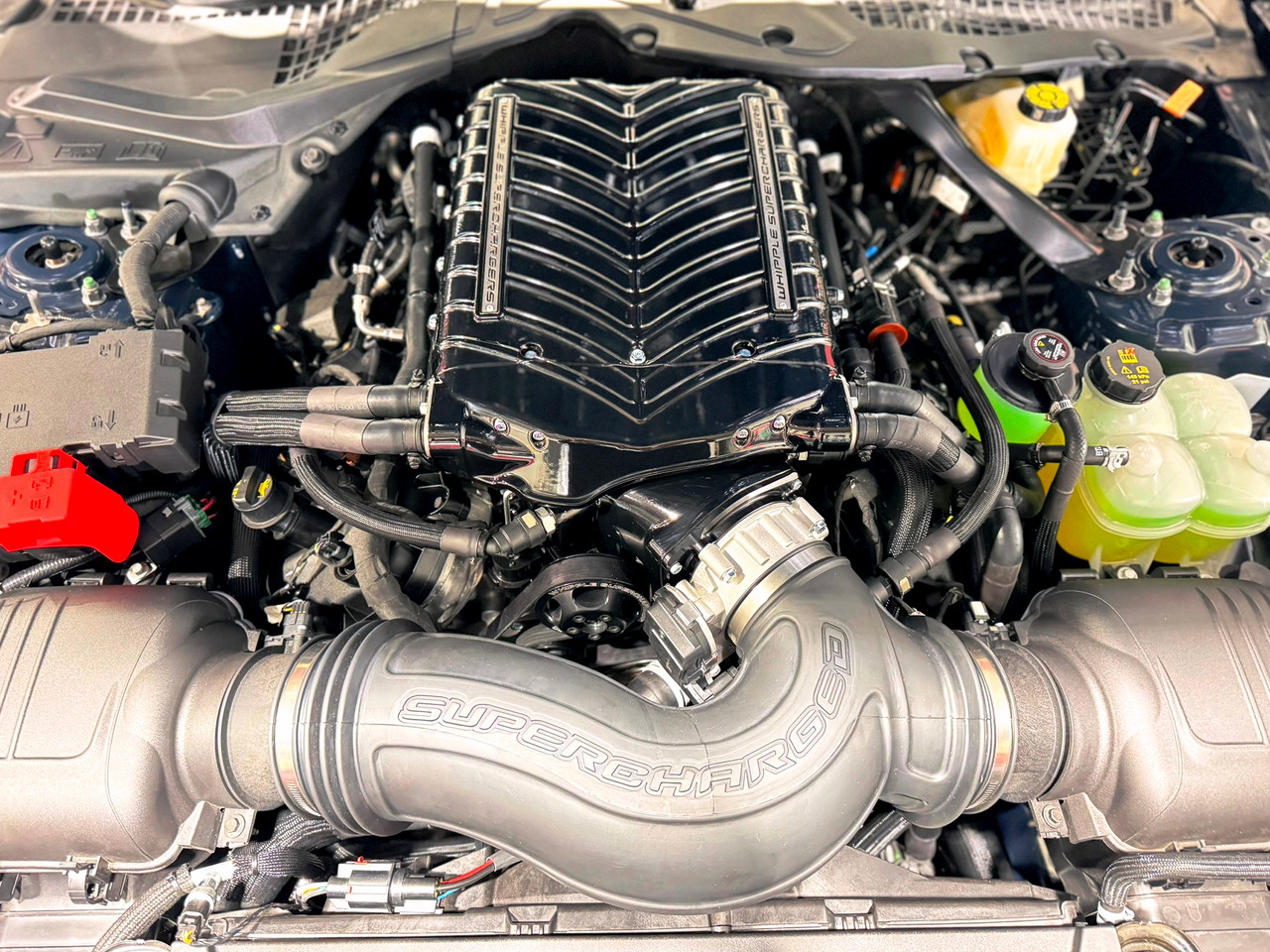

Gen 6 3.0L Twin-Screw Supercharger
At the core of the system is Whipples Gen 6 3.0L twin-screw supercharger, featuring the advanced 3x4 rotor combination, optimized discharge port, and reduced parasitic loss. The inverted layout places the supercharger deep in the engine valley, improving airflow efficiency while fitting cleanly under the factory hood.
Billet 112mm Throttle Body & 120mm Intake
Stage 2 airflow is increased through a billet 112mm Whipple throttle body paired with a massive 120mm Crusher Y-tube intake system. Dual high-flow air filters evenly feed the supercharger, minimizing inlet restriction and supporting higher RPM operation and increased top-end airflow for high-horsepower custom-tuned builds.
Industry-Leading Intercooler Capacity
This system features Whipples patented dual-core, dual-pass intercooler, routing compressed air through each core twice for dramatically improved heat rejection. Combined with Whipples largest heat exchanger and a high-flow intercooler pump, the system maintains stable intake air temperatures during repeated pulls and sustained high-load operation.
Important NFT Notes
- No flash tool included
- No calibration included
- No tuning credits included
- Custom PCM tuning or standalone engine management required
- Hardware-only supercharger system
Performance Highlights
- Gen 6 3.0L twin-screw supercharger with 3x4 rotors
- Billet 112mm throttle body for increased airflow
- 120mm Crusher Y-tube intake with dual high-flow filters
- Patented dual-core, dual-pass intercooler system
- Designed for high-output, custom-tuned S650 builds
Quick Specs
- Part Number: WK-2640-S2-30NFT
- Vehicle Platform: Ford Mustang S650
- Engine: 5.0L Coyote V8
- Model Years: 2024, 2025, 2026
- Supercharger: Whipple Gen 6
- Displacement: 3.0L
- Throttle Body: 112mm billet
- Inlet Size: 120mm Crusher Y-tube
- Intercooling: Dual-core, dual-pass air-to-water
Fitment
- 2024 Ford Mustang GT 5.0L
- 2025 Ford Mustang GT 5.0L
- 2026 Ford Mustang GT 5.0L
- 2024 Ford Mustang Dark Horse 5.0L
- 2025 Ford Mustang Dark Horse 5.0L
- 2026 Ford Mustang Dark Horse 5.0L
FAQs
Does this kit include tuning or a flash device?
No. This is a No Flash Tool (NFT) kit and does not include a calibration, tuning credits, or a flash tool.
Is this kit emissions legal out of the box?
Emissions compliance depends entirely on the tuning solution used. This hardware-only NFT system does not include a CARB-approved calibration.
