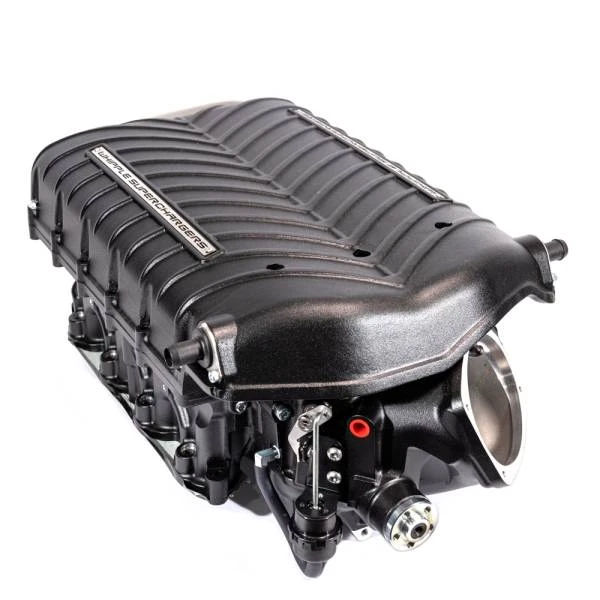

Whipple Stage 2 Competition Supercharger Kit Gen 6 3.0L (20242026 Ford F-150 5.0L w/ Power Onboard) WK-2317-STG2-30DC
Overview
The Whipple Stage 2 Competition Supercharger Kit WK-2317-STG2-30DC is a purpose-built, off-road/competition-only supercharger system engineered specifically for 20242026 Ford F-150 5.0L Coyote trucks equipped with Ford Power Onboard (dual alternator). This kit delivers extreme airflow, unmatched cooling capacity, and the structural clearance required to retain the factory dual alternator configuration.
At the heart of this system is Whipples Gen 6 3.0L twin-screw supercharger, combined with a 132mm billet Roval throttle body, billet fuel rails, and Whipples industry-leading dual-core, dual-pass intercooler system. When paired with proper fueling and custom calibration, this platform supports up to 805 horsepower and 685 lb-ft of torque* for serious racing and off-road builds.
Performance Highlights
- Stage 2 Competition System Supports up to 805 HP / 685 TQ*
- Whipple Gen 6 3.0L Twin-Screw Supercharger with advanced 3x4 rotor profile
- 132mm Billet Roval Throttle Body for maximum airflow and throttle response
- Billet Fuel Rails ready for high-horsepower fuel systems
- Patented Dual-Core, Dual-Pass Intercooler cools charge air twice per pass
- Oversized Dual-Pass Heat Exchanger with high-flow intercooler pump
- 150mm Crusher inlet for unrestricted air volume
Power OnboardSpecific Engineering
The WK-2317-STG2-30DC kit is uniquely engineered to work with Fords dual alternator (Power Onboard) configuration. Whipple redesigned mounting, accessory clearance, and component routing to ensure a clean, factory-style fit under the stock hood while maintaining belt alignment and reliability under extreme load.
Unmatched Cooling Technology
Whipples patented dual-core, dual-pass intercooler system routes intake air through each intercooler core twice, dramatically reducing intake air temperatures during sustained boost. Combined with the largest dual-pass heat exchanger in its class and a high-flow intercooler pump, this system delivers consistent, repeatable power for racing, towing competition, and off-road abuse.
Whats Included
- Gen 6 3.0L Whipple Twin-Screw Supercharger
- 132mm billet Roval throttle body
- Billet fuel rails
- Built-in air-to-water dual-core intercooler system
- Oversized dual-pass heat exchanger
- High-flow intercooler pump
- Billet idler system, pulleys, plug-and-play wiring, and mounting hardware
Quick Specs
- Part Number: WK-2317-STG2-30DC
- Vehicle: Ford F-150
- Engine: 5.0L Coyote V8
- Model Years: 2024, 2025, 2026
- Power Onboard: Yes (Dual Alternator Compatible)
- Supercharger: Whipple Gen 6 3.0L Twin-Screw
- Throttle Body: 132mm Billet Roval
- Inlet Size: 150mm Crusher
- Intercooler: Dual-core, dual-pass air-to-water
- Cooling: Oversized heat exchanger + high-flow pump
- Emissions: Competition only not CARB certified
Important Competition Use Notice
This Stage 2 Competition kit does NOT include fuel injectors, tuning device, or PCM calibration. Custom tuning and appropriate fuel system upgrades are required to safely achieve advertised power levels.
This product is intended strictly for off-road and sanctioned competition use. It is not legal for sale or use on pollution-controlled motor vehicles.
FAQs
Does this kit work with Ford Power Onboard?
Yes. The WK-2317-STG2-30DC is specifically engineered for dual alternator Power Onboard-equipped F-150s.
Is this system street legal?
No. This is a competition-only supercharger system and is not CARB certified.
Fitment
- 2024 Ford F-150 5.0L w/ Power Onboard
- 2025 Ford F-150 5.0L w/ Power Onboard
- 2026 Ford F-150 5.0L w/ Power Onboard
