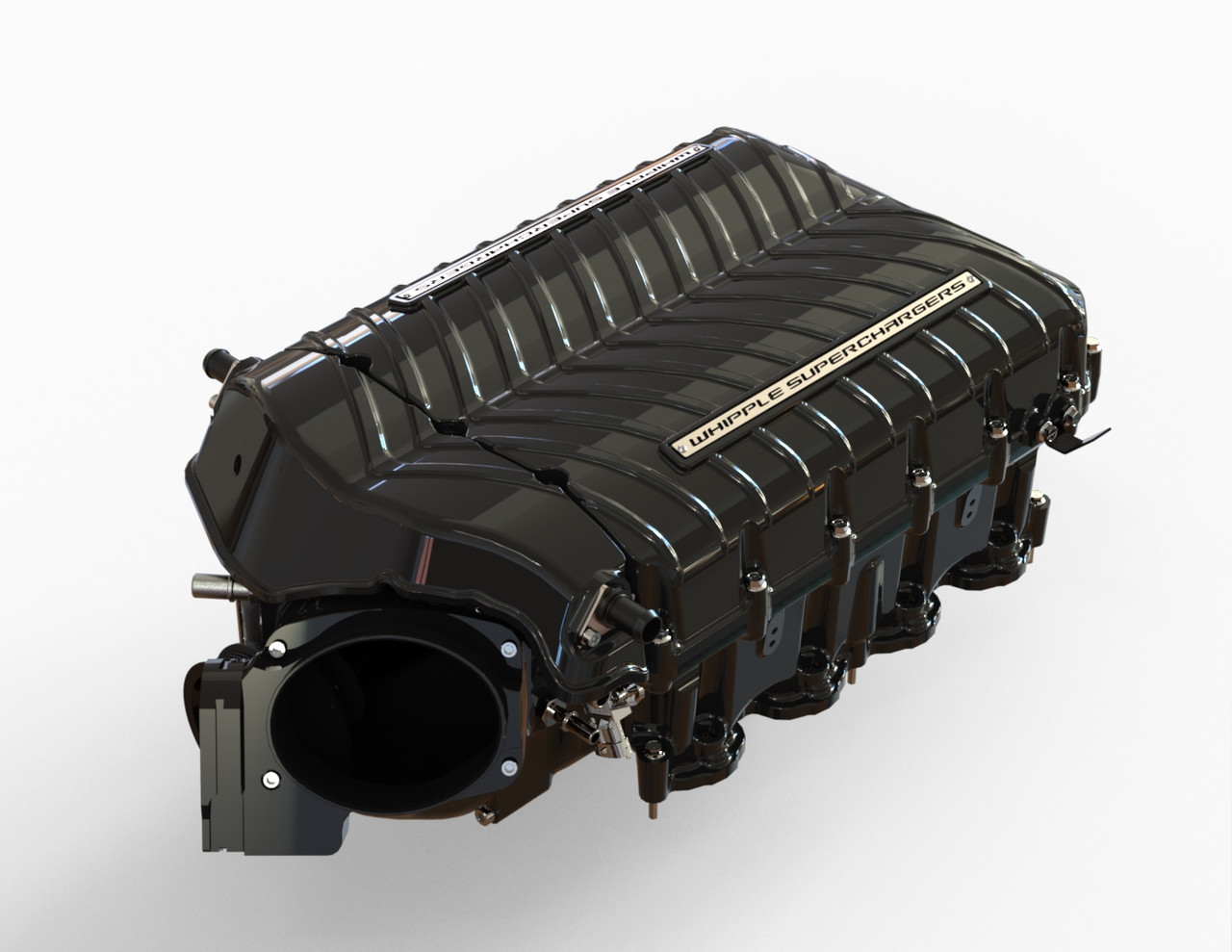

Whipple Supercharger Stage 1R Dual Alternator Gen 6x 3.0L (20212023 Ford F-150 5.0L)
Overview
The Whipple Stage 1R Dual Alternator Supercharger Kit is engineered specifically for 20212023 Ford F-150 5.0L Power Onboard trucks equipped with the factory dual alternator setup. This system delivers brutal, repeatable power while retaining full factory functionality, emissions compliance, and everyday drivability.
Built around Whipples latest Gen 6x W185RF 3.0L twin-screw supercharger, the Stage 1R configuration bridges the gap between Stage 1 and Stage 2, pushing output beyond 765 horsepower and 665 lb-ft of torque on 91+ octane fuel all without cutting, grinding, or hood modifications.
Performance Highlights
- Over 765 HP and 665 lb-ft of torque on 91+ octane
- Designed specifically for Power Onboard dual alternator trucks
- Instant boost with a flat, torque-heavy powerband
- More power per pound of boost than competing systems
Gen 6x Supercharger Technology
At the heart of the system is the Gen 6x W185RF 3.0L Whipple twin-screw supercharger, featuring a redesigned housing, inlet, and pulley system for improved airflow efficiency. The exclusive 3x4 rotor pack increases RPM capacity while minimizing leak paths, delivering stronger airflow under the curve and cooler discharge temperatures.
The massive Crusher 150mm inlet dramatically reduces restriction and rotor cavitation, allowing the engine to make more power at lower boost levelsideal for pump-gas reliability and long-term durability.
Industry-Leading Intercooling
Whipples patented dual-pass, dual-core intercooler system is unmatched in the industry. Each intercooler core is utilized twice, effectively doubling the cooling surface area without increasing packaging size. The result is dramatically lower intake air temperatures and resistance to heat soak under sustained load.
Paired with the largest dual-pass heat exchanger on the market and a high-flow intercooler pump, this system delivers consistent, repeatable power whether towing, daily driving, or wide-open throttle.
Fueling, Calibration & Control
The Stage 1R Dual Alternator kit includes GT500 Bosch dual-beam fuel injectors to safely support increased airflow and power. Calibration is handled through the included Whipple Tomahawk V2 flash tool, giving you:
- Emissions-compliant Whipple PCM calibration
- Ability to read and clear diagnostic trouble codes
- Wheel, tire, and axle ratio calibration support
- Retention of factory drive modes and transmission behavior
Quick Specs
- Part Number: WK-2316-STG1R-30D
- Supercharger: Gen 6x W185RF 3.0L Twin-Screw
- Inlet: Crusher 150mm
- Intercooling: Dual-core, dual-pass air-to-water
- Fuel Injectors: GT500 Bosch dual-beam
- Belt Drive: Proven 6-rib system with adjustable idler
- Tuning: Whipple Tomahawk V2 flash tool included
- Emissions: CARB EO D-231-144 (50-state legal)
FAQs
What makes this kit different from the standard Stage 1R?
This version is specifically designed for Power Onboard dual alternator F-150s, retaining full factory electrical functionality while delivering the same Stage 1R power levels.
Does this system require any permanent vehicle modifications?
No. The kit is fully bolt-on and fits under the factory hood with no cutting, grinding, or irreversible modifications required.
Fitment
- 2021 Ford F-150 5.0L (Dual Alternator / Power Onboard)
- 2022 Ford F-150 5.0L (Dual Alternator / Power Onboard)
- 2023 Ford F-150 5.0L (Dual Alternator / Power Onboard)
Why Buy from Beefcake Racing?
Beefcake Racing is a trusted Whipple Superchargers partner with deep experience in late-model Ford performance. Our team helps ensure proper fitment, supporting modifications, and long-term reliability. Call 1-855-827-7223 or email sales@beefcakeracing.com for expert assistance before and after your purchase.
