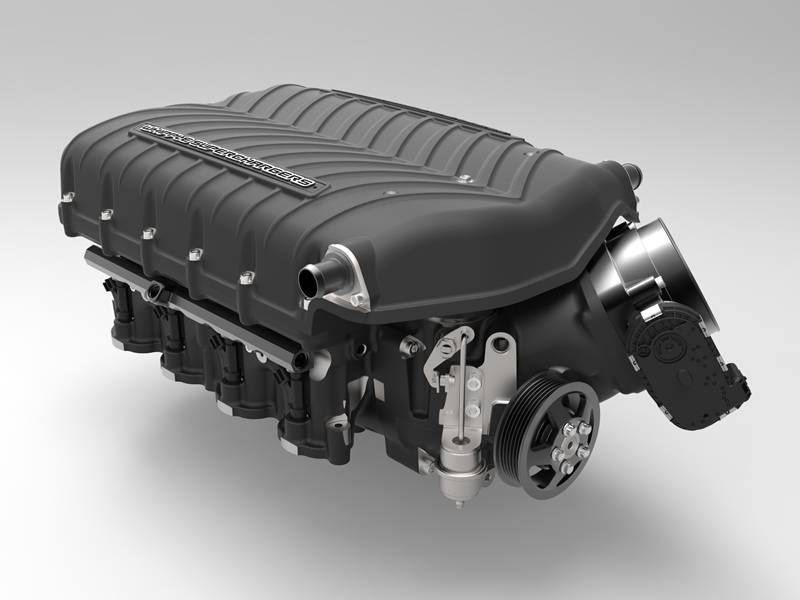

Whipple Supercharger Stage 1 Kit W185RF 3.0L Gen 6 Dual Alternator (20212023 F-150 5.0L) WK-2316-STG1-30-D
Overview
The Whipple Stage 1 Gen 6 Supercharger Kit with Dual Alternator support is engineered specifically for 20212023 Ford F-150 5.0L trucks equipped with the factory Power Onboard dual-alternator system. This is the go-to solution for owners who want serious, repeatable horsepower gains while retaining OEM charging capability, factory drive modes, towing functionality, and full emissions compliance.
Powered by Whipples latest Gen 6 W185RF 3.0L twin-screw supercharger and oversized Crusher 150mm inlet, this Stage 1 system delivers an incredible 725+ flywheel horsepower and 650+ lb-ft of torque on 91+ octane fuelall in a true bolt-on package with no cutting or grinding required.
Performance Highlights
- Over 725 HP and 650 lb-ft of torque on 91+ octane
- Designed for Power Onboard dual-alternator F-150 models
- Instant boost with massive torque from tip-in to redline
- Flat, useable torque curve for towing and daily driving
- OEM-level drivability with extreme power gains
Gen 6 Supercharger Technology
At the heart of the system is Whipples Gen 6 W185RF 3.0L twin-screw supercharger, featuring an all-new housing, inlet, and pulley design for increased airflow efficiency. The exclusive 3x4 rotor combination improves sealing, raises RPM capability, and reduces heatallowing Whipple to deliver more power per pound of boost than competing roots-style systems.
The inverted, front-entry design allows Whipple to package an intercooler system that simply cannot fit with traditional layouts, giving this kit unmatched thermal efficiency and consistency under load.
Cooling & Thermal Control
Whipples patented dual-core, dual-pass intercooler system routes intake air through each intercooler core twice, effectively doubling cooling efficiency compared to conventional designs. Combined with the industrys largest dual-pass heat exchanger and a high-flow intercooler pump, intake air temperatures stay stable even during hard use.
The result is consistent power delivery, improved knock resistance, and the ability to safely run aggressive timing on pump gas.
Tuning & Transmission Integration
Each kit includes the Whipple Tomahawk V2 flash tool loaded with Whipples proprietary calibration, developed using factory-level software. The calibration reconfigures fuel, spark, torque management, knock control, throttle mapping, and transmission behavior to deliver smooth, controlled power.
The advanced 10-speed automatic transmission is recalibrated to keep the engine in its optimal torque band while retaining all factory drive modes including tow, eco, sport, and off-road. Wheel, tire, and axle ratio adjustments are supported directly through the Tomahawk tool.
Quick Specs
- Part Number: WK-2316-STG1-30-D
- Engine: 5.0L Coyote V8
- Supercharger: Whipple Gen 6 W185RF 3.0L Twin-Screw
- Peak Output: 725+ HP / 650+ lb-ft (flywheel)
- Inlet: Crusher 150mm
- Intercooler: Dual-core, dual-pass air-to-water
- Tuning Device: Whipple Tomahawk V2
- Fuel Requirement: 91+ octane
- Emissions: 50-State Legal, CARB EO D-231-144
Fitment
- 2021 Ford F-150 5.0L with Power Onboard Dual Alternator
- 2022 Ford F-150 5.0L with Power Onboard Dual Alternator
- 2023 Ford F-150 5.0L with Power Onboard Dual Alternator
FAQs
Is this kit compatible with factory Power Onboard systems?
Yes. This Stage 1 kit is specifically engineered to retain the factory dual-alternator Power Onboard system without modifications.
Are engine or fuel system upgrades required?
No. At the included power level, the system is designed to work with a stock engine and fuel system while maintaining OEM-level reliability.
