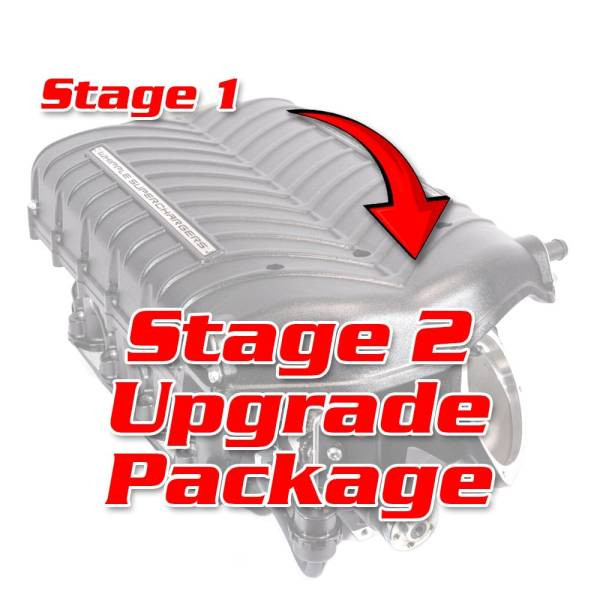

Whipple Stage 1 to Stage 2 Upgrade Kit (2021–2026 Ford F-150) 72-70149
Overview
The Whipple Stage 1 to Stage 2 Upgrade Kit is the complete, bolt-on solution for 2021–2026 Ford F-150 owners running a Whipple Stage 1 supercharger system who want more power, more boost, and more airflow—without replacing their entire kit. This upgrade package converts your existing setup into a true Stage 2 configuration, unlocking additional horsepower and torque with factory-like drivability.
By combining increased boost, major airflow upgrades, fueling enhancements, and an updated Whipple calibration, this kit allows your Gen 6 supercharger to deliver its full performance potential.
Stage 2 Power Gains
With the included billet supercharger pulley, airflow components, and revised calibration, this upgrade delivers up to an additional 50 horsepower and 20 lb-ft of torque over the Stage 1 system when running 93 octane or higher. Boost is increased by approximately 1 PSI, improving throttle response, mid-range punch, and top-end power.
Massive Airflow Improvements
At the heart of this upgrade is Whipple’s billet 132mm Roval throttle body paired with a matching 132mm inlet air tube. This combination dramatically reduces inlet restriction, allowing the supercharger to move more air efficiently at higher RPM and boost levels.
The result is stronger airflow, improved throttle response, and headroom for future performance upgrades.
Fueling & Boost Enhancements
To safely support the added airflow and boost, this kit includes a full set of Bosch 55 lb/hr high-flow fuel injectors. These injectors provide the additional fueling capacity required to maintain proper air/fuel ratios under increased load.
The included billet Whipple supercharger pulley increases boost by approximately 1 PSI, while maintaining belt control and reliability.
Updated Whipple Calibration
An updated Whipple Stage 2 calibration is included, optimized for increased boost, airflow, and fueling. The tune also raises RPM, airflow, and speed limits where applicable, ensuring the upgraded hardware works together safely and effectively.
Note: Calibration only is supplied. Your existing Whipple Tomahawk flash tool can be reused with the same VIN.
Performance Highlights
- Converts Whipple Stage 1 system to full Stage 2
- Up to +50 HP and +20 lb-ft torque*
- Billet 132mm Whipple Roval throttle body
- 132mm high-flow inlet air tube
- Billet supercharger pulley for ~1 PSI boost increase
- Bosch 55 lb/hr high-flow fuel injectors included
- Updated Whipple Stage 2 calibration
- 100% bolt-on upgrade
Quick Specs
- Part Number: 72-70149
- Application: 2021–2026 Ford F-150 (Whipple Stage 1 equipped)
- Upgrade Type: Stage 1 to Stage 2
- Throttle Body: Billet 132mm Whipple Roval
- Inlet Tube Size: 132mm
- Fuel Injectors: Bosch 55 lb/hr
- Boost Increase: ~1 PSI
- Fuel Requirement: 93 octane recommended
- Tuning: Updated Whipple calibration (reuse existing Tomahawk)
FAQs
Is this upgrade compatible with a Stage 1R system?
No. This kit is designed specifically for standard Whipple Stage 1 systems. Stage 1R systems use a different upgrade path.
Do I need to purchase a new flash tool?
No. The calibration is provided only. Your existing Whipple Tomahawk flash tool can be reused if it is paired to the same VIN.
Fitment
- 2021 Ford F-150 (Whipple Stage 1)
- 2022 Ford F-150 (Whipple Stage 1)
- 2023 Ford F-150 (Whipple Stage 1)
- 2024 Ford F-150 (Whipple Stage 1)
- 2025 Ford F-150 (Whipple Stage 1)
- 2026 Ford F-150 (Whipple Stage 1)
