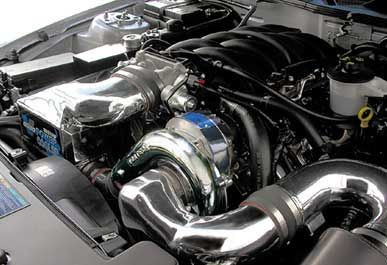

Vortech Tuner Kit - V-3 Si-Trim & Charge Cooler - Black (2010 Mustang GT) 4FU218-204L
Black V-3 Si-Trim Tuner Supercharger Kit for 2010 Mustang GT
The Vortech Superchargers Tuner Kit (PN 4FU218-204L) is engineered for 2010 Ford Mustang GT 4.6L owners pursuing custom-tuned, high-performance forced-induction builds. This tuner configuration pairs Vortech's proven V-3 Si-Trim centrifugal supercharger with an efficient Charge Cooler system, delivering strong boost capability, excellent thermal control, and the flexibility required for aftermarket fuel systems and custom calibration.
Unlike complete systems, this tuner kit omits fuel system upgrades and ECM reprogramming, allowing racers and experienced tuners to tailor supporting components to their specific power goals. For reference, the complete system for the 2010 Mustang GT boosts a stock vehicle to 492 HP; this tuner kit provides the same core hardware foundation for custom setups.
V-3 Si-Trim Supercharger Technology
- V-3 Si-Trim compressor with 3.60" drive pulley
- Manifold boost pressure: 10 psig @ redline on a stock engine
- High contact ratio, precision helical gear-driven design for near-silent operation
- Advanced, computer-designed impeller and housing developed in Vortech's supercharger test cell
Charge Cooler System
- Molded silicone discharge elbow with Bosch compressor bypass valve
- Silicone sleeves and premium stainless steel clamps
- Charge cooler surge tank with hoses, clamps, and plumbing
- High-flow Bosch water circulation pump for closed-loop cooling
- Exclusive, large-capacity dual-pass water cooler for superior heat rejection during extended heavy throttle operation
Air Inlet & Mounting Hardware
- High-flow roto-molded inlet ducts
- Silicone sleeves with stainless steel clamps
- 98 mm MAF meter housing and filter with heat shield
- Replacement engine coolant pipes and hose assemblies
- Billet aluminum supercharger mounting bracket assembly
- Includes idlers, drive belt, and all required mounting hardware
- Hardware kit 4FU100-001 with spare/replacement bolts and mounting hardware
Tuner Kit Configuration & Options
Tuner kits are identical to complete systems except they do not include fuel system upgrades or ECM reprogramming. This allows custom tuners to select injectors, pumps, and calibration strategies best suited to their application. Vortech also offers alternate supercharger options for different racing styles and sustained-boost use; consult Vortech technical resources for available upgrades.
Installation Notes
- Estimated installation time: approximately 12 hours
- Custom tuning and fuel system components required
- Professional installation recommended
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FU218-204L
- Vehicle: Ford Mustang GT
- Engine: 4.6L 3V
- System Type: Tuner Supercharger Kit
- Supercharger: V-3 Si-Trim
- Charge Cooling: Charge Cooler
- Finish: Black
- Boost: 10 psig @ redline (stock engine)
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- Tuner kits are for off-road and competition use only
- Installation on vehicles driven on public roads may violate U.S. federal emissions law (42 U.S.C. 7522(A)(3))
Fitment
- 2010 Ford Mustang GT 4.6L
