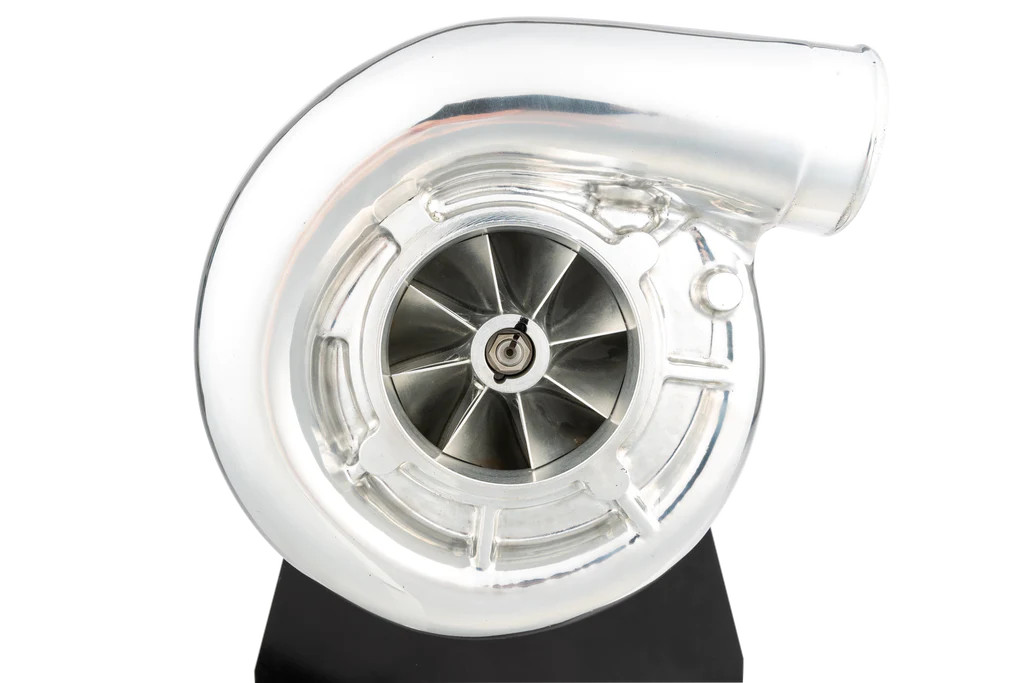

Vortech V-13 94C Supercharger Head Unit CCW Rotation Polished Finish 2Q129-018
Polished V-13 94C Centrifugal Supercharger Head Unit with CCW Rotation
The Vortech V-13 94C Supercharger Head Unit (PN 2Q129-018) delivers extreme horsepower capability in a compact, high-efficiency centrifugal supercharger package configured for counter-clockwise (CCW) rotation. Designed as the next logical upgrade beyond the legendary V-7 platform, the V-13 94C provides big power in a compact compressor while maintaining the durability, efficiency, and engineering excellence that have defined Vortech for generations.
This head unit features an all-billet, heavy-duty gear case and incorporates compressor technology derived directly from Vortechs proven V-30 94C race supercharger. The result is a universal-fit centrifugal supercharger capable of supporting extreme airflow, boost pressure, and horsepower levels with excellent efficiency.
V-13 94C Performance Capabilities
Engineered for aggressive street, strip, and race applications, the V-13 94C delivers massive airflow and power potential while maintaining high efficiency across its operating range.
- Maximum Power Capability: 1,500+ HP
- Maximum Boost: 35+ PSI
- Maximum Airflow: 1,950+ CFM
- Peak Efficiency: 78%
- Maximum Supercharger Speed: 65,000 RPM
- Internal Step-Up Ratio: 3.45:1
Billet Gear Case & Internal Upgrades
The V-13 94C incorporates critical internal enhancements to ensure stability and reliability at high RPM and elevated horsepower levels:
- Billet-machined gear case and cover
- Larger impeller shaft for improved stability at higher RPM
- Larger impeller bearings designed for higher horsepower loads
- Impeller design shared with Vortechs proven V-30 94C race supercharger
- Straight-cut spur gear drive for strength and power transfer
Universal Fit & Compatibility
The V-13 is a universal-fit supercharger that shares the same bolt pattern as all previously manufactured Vortech and Paxton small gearcase superchargers. This allows it to serve as a direct upgrade for nearly every application that does not use a supercharger-mounted belt tensioner.
This head unit is configured for counter-clockwise (CCW) rotation and is available only with straight discharge.
Dimensions
- Discharge Outlet Diameter: 3.0"
- Inlet Diameter: 4.0"
- Inducer Diameter: 3.70"
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 2Q129-018
- Supercharger Model: V-13 94C
- Rotation: Counter-Clockwise (CCW)
- Discharge Style: Straight Discharge
- Gear Type: Straight-Cut Spur Gear
- Finish: Polished
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
