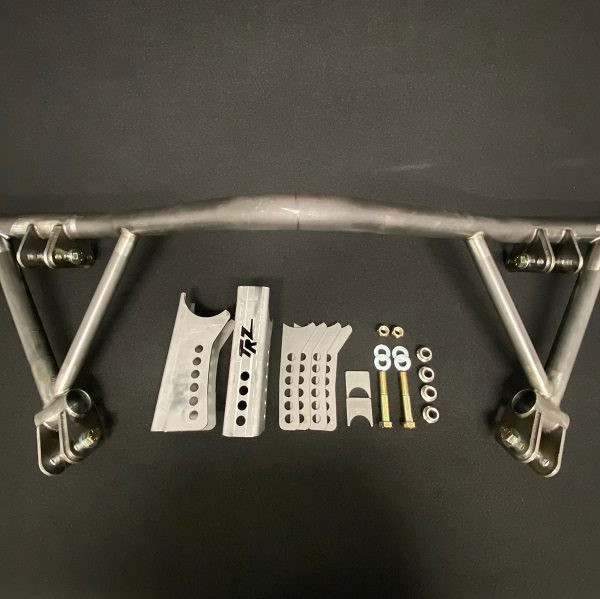

TRZ Motorsports Solid Axle Conversion Crossmember w/ Adjustable LCA Mounts (Doublers Not Welded) - (2015 - 2023 Mustang S550) - S550-204 & 209-32
Adjustable Solid Axle Conversion Crossmember for S550 Mustangs
The TRZ Motorsports Solid Axle Conversion Crossmember with Adjustable LCA Mounts (Part #S550-204 & 209-32) allows 2015 - 2023 Mustang S550 owners to convert the factory IRS setup into a proven Fox Body - style triangulated 4-link. This version includes adjustable lower control arm mounts with doublers supplied but not welded, giving builders full control over final LCA geometry and structural placement.
The kit comes complete with the crossmember plus upper and lower control arm hardware and inserts for existing 3/4? rod ends. While the crossmember bolts to the factory frame locations for alignment, it must be fully welded into the chassis. Proper installation requires reinforcing the upper and lower torque box areas and tying the crossmember into additional cage structure. A 25.5 MINIMUM chassis is required for safe use.
The adjustable design allows tuning via multi-hole UCA and LCA mounts and works with both 9? and 8.8 housings. Centered and stock pinion offset locations are both acceptable. Housing-side LCA brackets must be relocated to 32.5? - 34? on center, and TRZ offers weld-on brackets that can be added via the dropdown menu.
This conversion requires Fox Body - length upper and lower control arms. TRZ recommends:
- 8.8 Housing: TRZ Bolt-In Double Adjustable Rear Upper Control Arms
- 9? or 8.8 Housing: TRZ Bolt-In Dual Rod-End Rear Lower Control Arms
Performance Features
- Converts S550 IRS to Fox Body - style triangulated 4-link
- Includes adjustable LCA mounts with doublers (not welded)
- Crossmember includes UCA/LCA hardware and 3/4? rod-end inserts
- Bolts in for locating, requires welding for full chassis integration
- 25.5-minimum chassis required
- Multi-hole upper & lower control arm mounts for geometry tuning
- Works with 9? and 8.8 housings
- Accepts centered or OEM pinion offset
- Housing LCA brackets must be relocated to 32.5? - 34? on center
- Requires Fox Body - length UCA/LCA
- Compatible with TRZ adjustable UCAs and LCAs
Quick Specs
- Vehicle: 2015 - 2023 Mustang S550
- Conversion: IRS ? Fox Body triangulated 4-link
- Chassis Requirement: 25.5 minimum
- Included: Crossmember, hardware, rod-end inserts, adjustable LCA mounts
- Housing Compatibility: 9? and 8.8
- Pinion Offset: Centered or stock offset
- LCA Bracket Spacing: 32.5? - 34? on center
- Control Arms Needed: Fox Body - length UCAs & LCAs
- Part Numbers: S550-204 & 209-32
Fitment
- 2015 Ford Mustang
- 2016 Ford Mustang
- 2017 Ford Mustang
- 2018 Ford Mustang
- 2019 Ford Mustang
- 2020 Ford Mustang
- 2021 Ford Mustang
- 2022 Ford Mustang
- 2023 Ford Mustang
Frequently Asked Questions
Do the adjustable LCA mounts come welded to the crossmember?
No. The doublers and adjustable mounts are supplied loose so builders can position and weld them exactly where needed.
Does this conversion require special control arm lengths?
Yes. Fox Body - length upper and lower control arms are required. TRZ offers compatible adjustable arms for both 9? and 8.8 housings.
