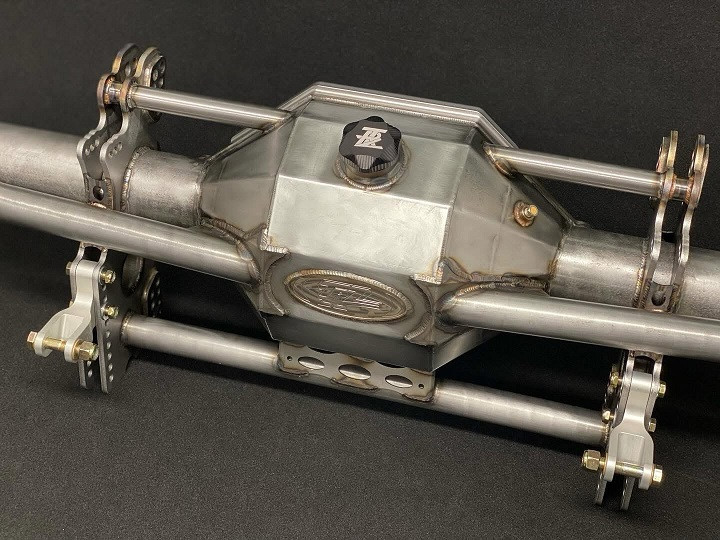

TRZ Motorsports Billet Faceplate 4130 9" Builders Kit - With Sheet Metal Back Brace - 650-BKSB
High-Strength 4130 Billet 9-Inch Builders Kit with Sheet Metal Back Brace
The TRZ Motorsports Billet Faceplate 4130 9? Builders Kit with Sheet Metal Back Brace (Part #650-BKSB) is engineered for fabricators who want a lightweight, ultra-rigid base for building a custom 9-inch rear-end. This kit brings together a pocketed 4130 billet faceplate, billet tube caps, chromoly shell pieces, reinforcing gussets, ARP hardware, and a formed sheet metal 4130 back brace for exceptional rigidity.
The billet faceplate features blind 3rd member hardware holes, weight-saving machining, and integrated vent and drain ports. TRZ's billet axle tube caps locate 3.5? axle tubes internally before welding, ensuring precise alignment during fabrication. The 3-piece chromoly rear shell includes a centered fill cap opening and an anodized high-grip fill cap with welded bung.
The kit also includes internal housing gussets, a full set of ARP studs, nuts, and washers, plus drain and vent fittings. Fabricators can fully weld the faceplate and tube caps prior to fitting the shell, allowing a controlled and predictable build process.
Important: Designed for 3.5? axle tubes with a centered pinion. TRZ specifies RTV sealant only - not a gasket. If a gasket is used, matching shims must be added during the build to maintain the correct stack height.
Performance Features
- Pocketed 4130 billet faceplate for optimized strength-to-weight
- Minimum 7/16" faceplate thickness
- Blind 3rd member hardware holes
- Integrated vent and drain ports
- Sheet metal 4130 back brace for added rigidity
- Billet axle tube caps for precise tube alignment
- 3-piece chromoly housing shell with centered fill cap opening
- Anodized high-grip fill cap with welded bung
- Internal housing gussets (2)
- Includes ARP 3rd member studs, nuts, and washers
- Includes drain plug and vent
- RTV sealant required (shim if using a gasket)
Quick Specs
- Material: 4130 chromoly
- Back Brace Style: Sheet metal 4130
- Axle Tube Diameter: 3.5"
- Pinion: Centered
- Faceplate Thickness: 7/16" minimum
- Shell: 3-piece chromoly
- Includes: Tube caps, gussets, fill cap, ARP hardware, vent, drain plug
- Assembly: Tubes/caps may be welded before shell installation
- Sealant: RTV only
- Part Number: 650-BKSB
Frequently Asked Questions
Why choose the sheet metal back brace over the tubular version?
The sheet metal brace offers excellent rigidity with slightly reduced weight and a profile that may better suit certain chassis layouts.
Can I use a traditional gasket when assembling the 3rd member?
RTV is required; however, if you choose to run a gasket, you must shim the assembly to match the gasket's thickness.
