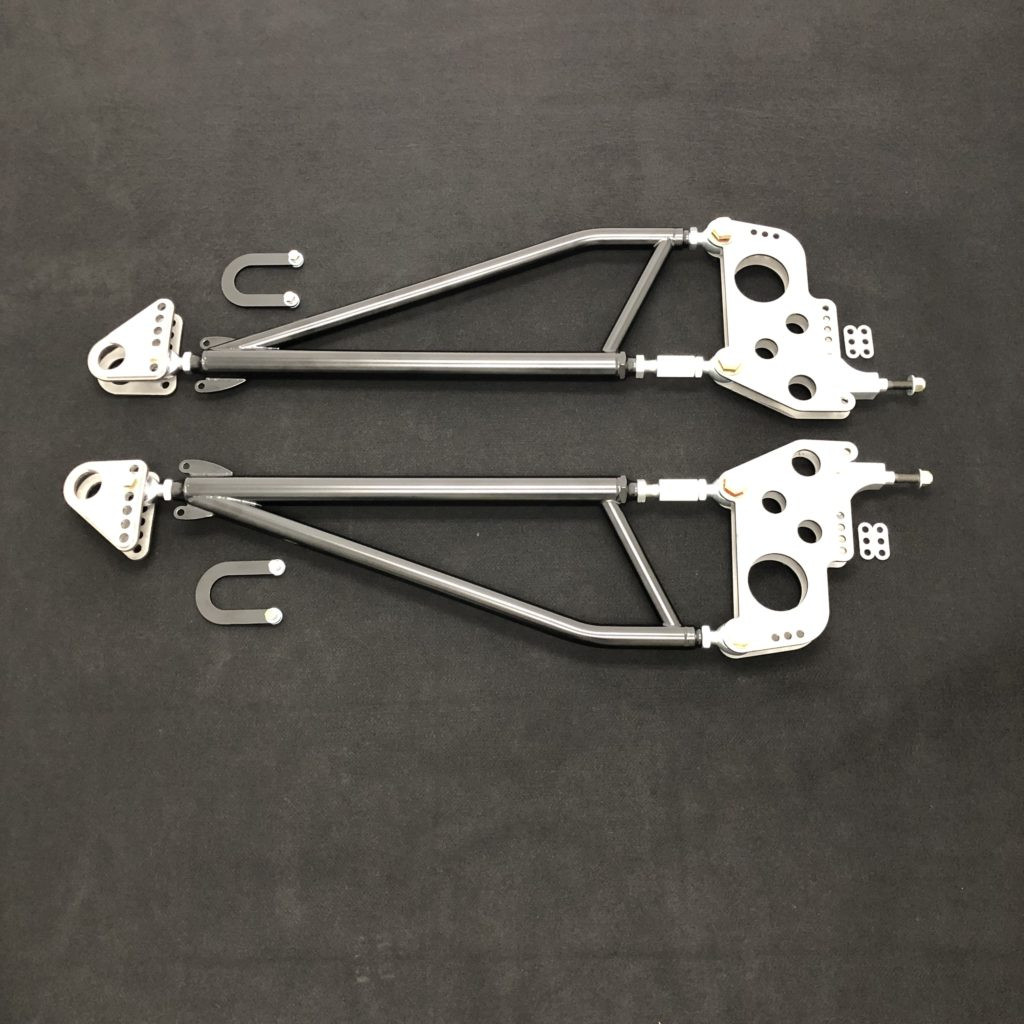

TRZ Motorsports HD Ladder Bar Kits - 36" - 3.50" Axle Tube Diameter - 600-36-350
Heavy-Duty Chrome-Moly Ladder Bar Kit
The TRZ Motorsports HD Ladder Bar Kit is purpose-built for high-horsepower drag racing environments where chassis stability, traction, and predictability are critical. Constructed entirely from chrome-moly tubing and 100% TIG welded, this system provides exceptional strength and the rigidity needed for hard launches and consistent performance pass after pass.
This model pairs a durable 1-1/4" upper bar with a reinforced 1-5/8" lower bar, ensuring maximum structural stability under extreme load conditions. Oversized 3/4" Teflon-lined chrome-moly rod ends at the front pivot points deliver smooth articulation and long-lasting reliability. TRZ enhances the setup with a precision CNC'd 6061 billet coil-over shock mount, three selectable anti-roll bar mounting positions, and integrated lower wheelie bar mounts, making this a complete solution for serious competitors.
This version includes 3.50" axle tube diameter brackets. Other available bracket sizes include 2.70", 3.00", and 3.25". Ladder bar lengths from 32" to 36" - measured from axle center to rod-end center - can be selected at checkout. Optional rear-locating components such as the 600-TL Track Locator Kit or 600-WB Wishbone Assembly are sold separately.
Performance Features
- All chrome-moly tubing for maximum durability
- Selectable ladder bar lengths: 32" - 36"
- 1-1/4" upper bar and 1-5/8" lower bar
- Fully TIG welded for race-ready strength
- 3/4" Teflon-lined chrome-moly rod ends (front)
- CNC 6061 billet coil-over shock mount
- Three anti-roll bar mounting hole options
- Integrated lower wheelie bar mounts
- Includes 3.50" axle tube diameter brackets
- Compatible with 600-TL and 600-WB locator kits (sold separately)
Quick Specs
- Kit Type: HD Chrome-Moly Ladder Bar Kit
- Length: 36" (32" - 36" selectable)
- Upper Bar Diameter: 1-1/4"
- Lower Bar Diameter: 1-5/8"
- Rod Ends: 3/4" Teflon-lined chrome-moly
- Shock Mount: CNC'd 6061 billet aluminum
- Anti-Roll Bar Mounts: 3 positions
- Wheelie Bar Mounts: Integrated
- Axle Tube Diameter: 3.50"
- Part Number: 600-36-350
Frequently Asked Questions
Is this ladder bar kit strong enough for extreme drag racing builds?
Absolutely. The chrome-moly construction, TIG welding, and heavy-duty Teflon-lined rod ends make it ideal for high-horsepower applications.
Does this kit include a track locator or wishbone system?
No. The 600-TL Track Locator Kit and 600-WB Wishbone Assembly are optional components that must be purchased separately.
Why Buy from Beefcake Racing?
Beefcake Racing provides genuine TRZ Motorsports components, backed by expert support and fast delivery. For guidance on choosing the correct ladder bar length, axle bracket diameter, or supporting components, contact sales@beefcakeracing.com or call 1-855-827-7223.
