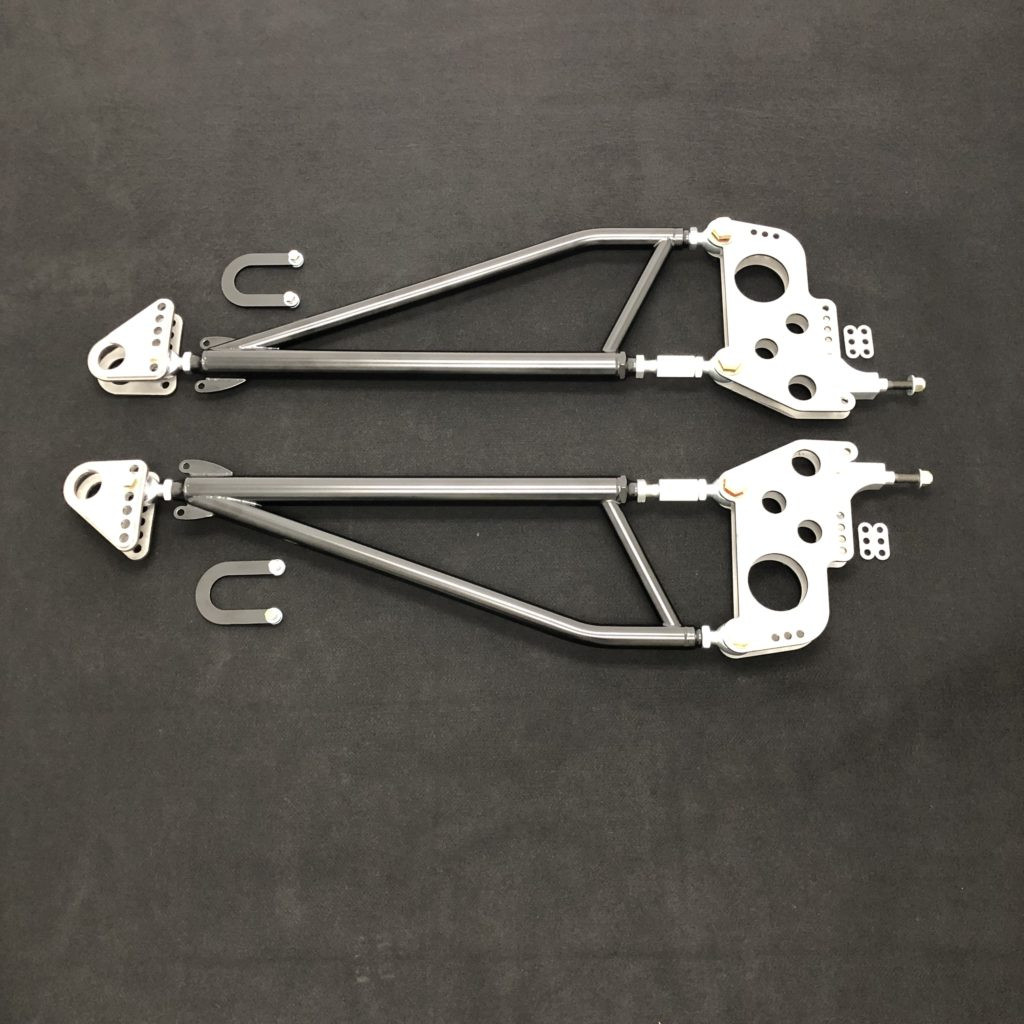

TRZ Motorsports HD Ladder Bar Kits - 35" - 3.00" Axle Tube Diameter - 600-35-300
Heavy-Duty Chrome-Moly Ladder Bar Kit
The TRZ Motorsports HD Ladder Bar Kit is designed for high-horsepower drag racing applications where maximum traction, rock-solid stability, and precise suspension geometry are essential. Built from all chrome-moly tubing and 100% TIG welded, this ladder bar setup delivers the durability and rigidity required for consistent, hard-launch performance.
This configuration uses a strong 1-1/4" upper bar and a heavy-duty 1-5/8" lower bar to maintain chassis control under extreme loads. The bars pivot on oversized 3/4" Teflon-lined chrome-moly rod ends, offering smooth articulation and long-lasting performance. TRZ integrates several race-ready components, including a CNC-machined 6061 billet coil-over shock mount, three selectable anti-roll bar mounting holes, and integrated lower wheelie bar mounts for a complete competition-grade rear suspension foundation.
This version includes 3.00" axle tube brackets, one of four available sizes (2.70", 3.25", and 3.50" also offered). Ladder bar lengths ranging from 32" to 36", measured from axle centerline to front rod-end center, may be selected during checkout. Optional rear-end locating components such as the 600-TL Track Locator Kit and 600-WB Wishbone Assembly are available separately.
Performance Features
- Chrome-moly construction for maximum strength
- Available in 32" - 36" lengths (select at checkout)
- 1-1/4" upper bar and 1-5/8" lower bar
- 100% TIG welded for superior durability
- 3/4" Teflon-lined chrome-moly front rod ends
- CNC'd 6061 billet coil-over shock mount
- Three anti-roll bar mounting holes
- Integrated lower wheelie bar mounts
- Includes 3.00" axle tube diameter brackets
- Compatible with 600-TL and 600-WB locator kits (sold separately)
Quick Specs
- Kit Type: HD Chrome-Moly Ladder Bar Kit
- Length: 35" (selectable 32" - 36" range)
- Upper Bar Diameter: 1-1/4"
- Lower Bar Diameter: 1-5/8"
- Rod Ends: 3/4" Teflon-lined chrome-moly
- Shock Mount: CNC 6061 billet aluminum
- ARB Mount Positions: 3
- Wheelie Bar Mounts: Integrated
- Axle Tube Diameter: 3.00"
- Part Number: 600-35-300
Frequently Asked Questions
Is this ladder bar kit suited for extreme horsepower?
Yes. Its chrome-moly construction, TIG welding, and oversized rod ends make it ideal for serious drag racing and high-power builds.
Does this kit include a track locator or wishbone?
No. The 600-TL Track Locator Kit and 600-WB Wishbone Assembly are optional components sold separately.
Why Buy from Beefcake Racing?
Beefcake Racing provides genuine TRZ Motorsports components with fast shipping and expert support. For help selecting the right axle bracket size, ladder bar length, or supporting hardware, contact sales@beefcakeracing.com or call 1-855-827-7223.
