TRZ Motorsports C5 - C6 Corvette Outlaw Front Suspension w/ Motor Mount Pads & Billet Aluminum Spindle Upgrade (1997 - 2013 Corvette C5 / C6) - 400-5BS & MM
Ultimate Outlaw Front Suspension for 1997 - 2013 Corvette C5/C6 with Motor Mount Pads & Billet Spindles
The TRZ Motorsports Outlaw Front Suspension w/ Motor Mount Pads & Billet Aluminum Spindle Upgrade is the most complete, lightweight, drag-race-focused front suspension package available for the 1997 - 2013 Corvette C5 and C6 platform. Built for racers who demand maximum strength, weight reduction, adjustability, and braking compatibility, this system replaces the entire factory front assembly with premium chrome-moly and billet aluminum components.

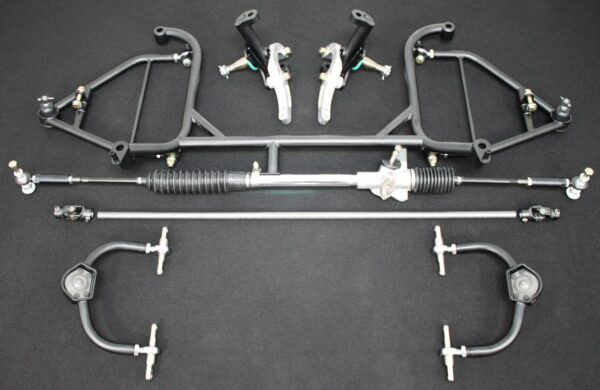

The kit features a fully engineered chrome-moly K-member, upper and lower A-arms with teflon-lined rod ends throughout, and the upgraded billet aluminum spindle set. These billet spindles reduce rotating mass while maintaining compatibility with Strange GT spindle-mount brakes and select standard hub-style brake kits.
Steering performance is optimized with Pinto-style rack-and-pinion mounts and an included custom-length manual rack kit. This rack setup includes 6061 aluminum LH/RH tie-rod adjusters (bump steer kit), a steering shaft, two chrome-moly U-joints, and a steering column adapter - delivering the precise geometry needed for consistent, stable straight-line operation.
This system is designed for drag racing only and sheds up to 95 lbs from the front of the vehicle. The geometry narrows track width by approximately 1 inch per side and incorporates 8 - 10 degrees of positive caster to improve launch stability. It is intended for coil-over shocks with 4? or 5? stroke depending on ride height, using lower mounts that are 1? wide with a 1/2? ID bearing.
This configuration includes motor mount pads (pads only; motor mounts not included), giving you proper mounting locations for engine installation. Brake and hub compatibility includes Strange 5x4.75 hubs (B4154WC), Strange spindle-mount combinations (B4597WC), and TBM spindle-mount setups (TBM-001-0204). Some Strange caliper brackets may require light grinding for proper clearance.
This system does not work with OEM C5/C6 A-arms, brakes, spindles, or steering components. If your brake kit fits a factory C5/C6 spindle, it will not fit this TRZ spindle design.
Performance Features
- Full chrome-moly K-member with upper and lower A-arms
- Billet Aluminum Spindle Upgrade included for lighter weight and improved drag performance
- Spindles accept Strange GT spindle-mount brakes or compatible hub-style brake systems
- 6061 billet aluminum steering arms for rigidity and precise steering input
- Pinto-style rack-and-pinion mounts for a lightweight and responsive steering system
- Manual rack kit includes tie-rod adjusters, U-joints, steering shaft, and adapter
- Reduces front-end weight by up to 95 lbs
- Narrows track width by ~1? per side for improved weight transfer
- Built-in 8 - 10 degrees of positive caster
- Works with 4? or 5? stroke coil-over shocks (1? wide x 1/2? ID bearing lower mounts)
- Compatible with Strange B4154WC, Strange B4597WC, and TBM TBM-001-0204 brake systems
- Includes motor mount pads (pads only)
- OEM C5/C6 components are not compatible
Quick Specs
- Fitment: 1997 - 2013 Corvette C5/C6
- K-member Material: Chrome-moly
- A-Arms: Chrome-moly w/ teflon-lined rod ends
- Spindles: BILLET ALUMINUM upgrade included
- Steering System: Custom-length manual rack w/ aluminum tie-rod adjusters
- Weight Savings: Up to 95 lbs
- Track Width: Approx. 1? narrower per side
- Caster Angle: 8 - 10 degrees positive
- Shock Compatibility: 4? or 5? coil-over stroke
- Brake Compatibility: Strange B4154WC / Strange B4597WC / TBM TBM-001-0204
- Motor Mount Pads: Included (pads only)
- Part Number: 400-5BS & MM
Fitment
- 1997 Chevrolet Corvette C5
- 1998 Chevrolet Corvette C5
- 1999 Chevrolet Corvette C5
- 2000 Chevrolet Corvette C5
- 2001 Chevrolet Corvette C5
- 2002 Chevrolet Corvette C5
- 2003 Chevrolet Corvette C5
- 2004 Chevrolet Corvette C5
- 2005 Chevrolet Corvette C6
- 2006 Chevrolet Corvette C6
- 2007 Chevrolet Corvette C6
- 2008 Chevrolet Corvette C6
- 2009 Chevrolet Corvette C6
- 2010 Chevrolet Corvette C6
- 2011 Chevrolet Corvette C6
- 2012 Chevrolet Corvette C6
- 2013 Chevrolet Corvette C6
Frequently Asked Questions
What benefits do the billet aluminum spindles provide?
Billet spindles reduce weight, improve weight transfer, and maintain compatibility with select Strange and TBM drag brake systems. They also reduce rotating mass for cleaner launches.
Does this kit include complete motor mounts?
No. It includes motor mount pads only - the mounting locations for your engine. Full motor mounts must be sourced separately.
Why Buy from Beefcake Racing?
Beefcake Racing offers genuine TRZ Motorsports products, fast shipping, and real tech support for drag racers. For help with brake compatibility, spindle selection, or coil-over requirements, contact us at sales@beefcakeracing.com or call 1-855-827-7223.
