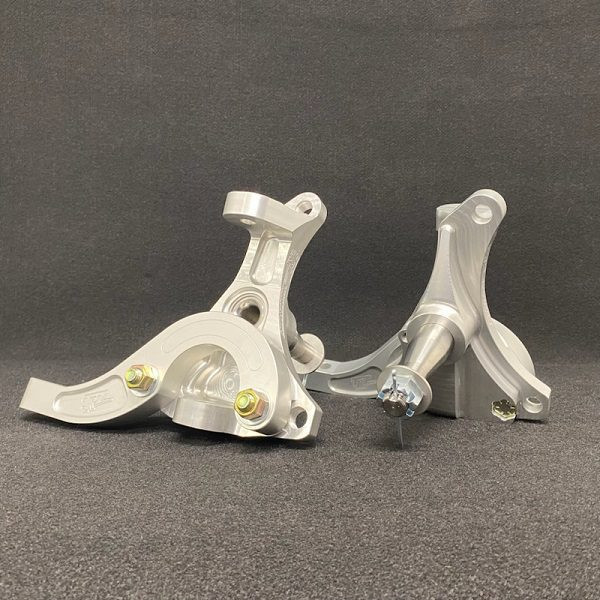

TRZ Motorsports 2" Drop Billet Spindles & Steering Arms - 7/16-14 Caliper Bracket Bolt Size - 1 Pair (1978 - 1988 Chevy Malibu - G-Body / 1982 - 2002 Chevy Blazer & S-10 - 2WD) - 328-63 & 303
High-Strength 2? Drop Billet Spindles for G-Body & S-10 Drag Racing
The TRZ Motorsports 2? Drop Billet Spindles & Steering Arms are engineered for racers looking to optimize front suspension geometry, reduce weight, and run stock-style drag race brake kits on G-Body and S-10/Blazer 2WD platforms. Built from 6061 billet aluminum and equipped with 17-4 heat-treated stainless steel spindle pins, these spindles deliver exceptional durability and precision under high-load drag race conditions.
This kit includes a pair of billet 2? drop spindles, matching TRZ 6061 billet steering arms, and all required hardware. Optional Quick Steer Arms (303-QS) can be selected for dramatically improved turning radius - up to a 30% increase for vehicles running rack-and-pinion systems.
Weighing only 11 pounds total (spindles + arms + hardware), these components offer a major unsprung weight savings compared to factory cast parts. The 2? drop design sharpens weight transfer, improves launch stability, and maintains correct geometry for drag racing setups.
This version features a 7/16-14 caliper bracket bolt thread, matching the current production Strange brake kits (post - September 2021). As brake manufacturers vary thread sizes by year, TRZ strongly recommends physically measuring your existing bracket hardware for proper compatibility.
A bump-steer kit is required, as TRZ steering arms use a 1/2? straight tie-rod hole and extend the tie rods to help achieve proper geometry.
Performance Features
- Precision-machined 6061 billet aluminum construction
- 2? drop spindle design improves suspension geometry and weight transfer
- Heat-treated 17-4 stainless steel spindle pins
- Includes billet 6061 steering arms and mounting hardware
- Optional Quick Steer Arms improve rack-and-pinion turning radius by up to 30%
- Compatible with stock-style drag race brake kits: Strange, TBM, Wilwood 140-1033-BD
- Total assembly weight: 11 lbs (pair)
- Straight 1/2? tie-rod hole simplifies bump-steer correction
- This version uses 7/16-14 caliper bracket bolts
Brake Kit / Thread Size Compatibility Notes
- Strange Brakes: Current kits (post - Sept 2021) ? 7/16-14 thread
- TBM Brakes: Post - Sept 2023 ? 3/8-24 thread
- Wilwood: Uses 3/8-24 thread; requires trimming bracket to use 2 of 3 bolts
- Aerospace: Uses 3/8-16 thread; replace with 3/8-24 bolts
- Aerospace brackets without spacers may need clearancing to mount flush
- Always measure your bolt size for accurate fitment
Quick Specs
- Drop: 2?
- Material: 6061 billet aluminum
- Spindle Pins: 17-4 heat-treated stainless steel
- Caliper Bolt Thread: 7/16-14
- Weight: 11 lbs per assembled pair
- Steering Arms: TRZ billet (303), Quick Steer optional
- Part Numbers: 328-63 & 303
Fitment
- 1978 - 1988 Chevy Malibu (G-Body)
- 1982 - 2002 Chevy S-10 / Blazer (2WD)
Frequently Asked Questions
Why do the 2? drop spindles require a bump-steer kit?
TRZ steering arms lengthen the tie rods and use a 1/2? straight hole, requiring bump-steer correction to maintain proper geometry after lowering.
How do I verify if 7/16-14 is the correct bolt size?
You must measure your current caliper bracket bolt threads; brake manufacturers changed sizes throughout production, so visual guessing is unreliable.
