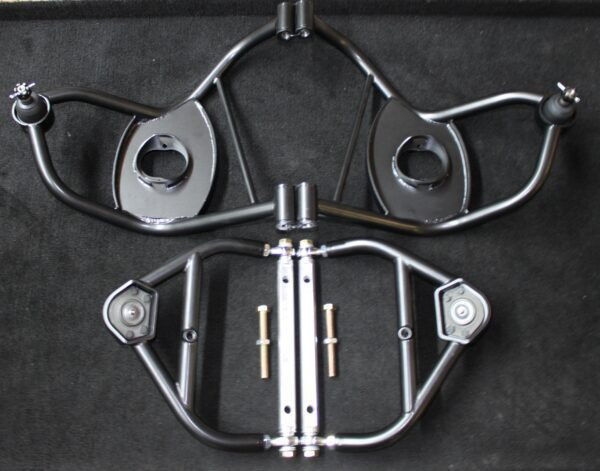

TRZ Motorsports Tubular Front Control Arms - Stock Spring Style Complete Kit (1977 - 1996 Impala / Caprice B-Body) - 322-PRO-STK
Complete Stock-Spring Front Control Arm Kit for 1977 - 1996 Impala & Caprice
The TRZ Motorsports 322-PRO-STK kit is a full front control arm system engineered for 1977 - 1996 Chevrolet Impala and Caprice B-Body platforms. Built from premium TIG-welded chrome-moly tubing, this kit replaces the heavy factory arms while dramatically improving strength, weight reduction, and suspension geometry for serious drag racing performance.
This complete kit includes PRO Series upper control arms with chrome-moly rod ends and billet cross-shafts, along with stock-spring lower control arms designed to accept OEM-style springs and shocks. The lowers feature dropped spring perches to accommodate taller aftermarket springs, and depending on spring selection, the front ride height may naturally drop between 1.5 and 1.75 inches.
When used together, the upper and lower arms allow the suspension to achieve 6 - 7 degrees of positive caster, providing outstanding straight-line stability and improved launch consistency. The uppers also include travel limiters to fine-tune front-end rise and weight transfer.
Note: TRZ A-arms are built exclusively for drag racing use. They do not include sway bar tabs and are not intended for street applications.
Performance Highlights
- Complete chrome-moly upper and lower control arm system
- Stock-spring lower control arms retain factory-style shock and spring fitment
- PRO Series uppers with billet cross-shafts and rod-end attachments
- Dropped lower spring perches support taller coil options
- 1.5 - 1.75 inch typical ride-height drop depending on springs
- Up to 15 lbs per side weight reduction when upgrading from OEM
- Achieves 6 - 7° positive caster with full kit installed
- Travel limiters included for launch and weight-transfer tuning
- Optimized for drag racing suspension geometry
Quick Specs
- Application: 1977 - 1996 Impala & Caprice (B-Body)
- Kit Type: Full stock-spring front control arm system
- Material: TIG-welded chrome-moly tubing
- Upper Control Arms: PRO Series with rod ends & billet cross-shafts
- Lower Control Arms: Dropped spring perches, stock-spring style
- Ride Height Drop: 1.5 - 1.75 inches depending on spring choice
- Caster Capability: 6 - 7° with full system
- Use Case: Drag racing only; no sway bar tabs
- Part Number: 322-PRO-STK
Fitment
- Chevrolet Impala
- 1977 Chevrolet Impala
- 1978 Chevrolet Impala
- 1979 Chevrolet Impala
- 1980 Chevrolet Impala
- 1981 Chevrolet Impala
- 1982 Chevrolet Impala
- 1983 Chevrolet Impala
- 1984 Chevrolet Impala
- 1985 Chevrolet Impala
- 1986 Chevrolet Impala
- 1987 Chevrolet Impala
- 1988 Chevrolet Impala
- 1989 Chevrolet Impala
- 1990 Chevrolet Impala
- 1991 Chevrolet Impala
- 1992 Chevrolet Impala
- 1993 Chevrolet Impala
- 1994 Chevrolet Impala
- 1995 Chevrolet Impala
- 1996 Chevrolet Impala
- Chevrolet Caprice
- 1977 Chevrolet Caprice
- 1978 Chevrolet Caprice
- 1979 Chevrolet Caprice
- 1980 Chevrolet Caprice
- 1981 Chevrolet Caprice
- 1982 Chevrolet Caprice
- 1983 Chevrolet Caprice
- 1984 Chevrolet Caprice
- 1985 Chevrolet Caprice
- 1986 Chevrolet Caprice
- 1987 Chevrolet Caprice
- 1988 Chevrolet Caprice
- 1989 Chevrolet Caprice
- 1990 Chevrolet Caprice
- 1991 Chevrolet Caprice
- 1992 Chevrolet Caprice
- 1993 Chevrolet Caprice
- 1994 Chevrolet Caprice
- 1995 Chevrolet Caprice
- 1996 Chevrolet Caprice
Frequently Asked Questions
Does this kit work with coilovers?
No. This is a stock-spring-only complete kit. For coilovers, use the 322-PRO-CO version.
Will I get the full 6 - 7° caster increase with just the uppers?
No. Achieving the intended caster range requires the complete upper and lower arm system installed together.
