TRZ Motorsports Tubular Front Control Arms - Stock Spring Style Complete Kit (1971 - 1976 Impala / Caprice B-Body) - 321-PRO-STK
Complete Stock-Spring Tubular Control Arm System for 1971 - 1976 B-Body
The TRZ Motorsports 321-PRO-STK Complete Kit is a full stock-spring tubular control arm upgrade engineered for 1971 - 1976 Chevrolet Impala and Caprice B-Body platforms. Designed for drag racing, this matched upper and lower arm system dramatically improves strength, geometry, and consistency over factory stamped control arms thanks to its TIG-welded chrome-moly construction.

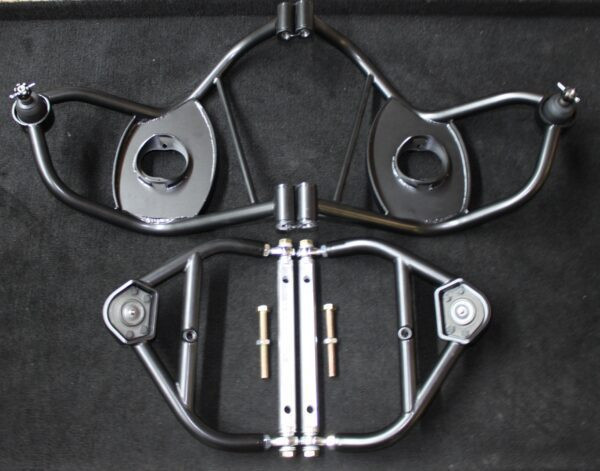

The kit includes PRO Series upper control arms equipped with chrome-moly rod-ends and billet cross-shafts, along with stock-spring lower control arms featuring ball joints and bushings. When installed together, the system is capable of achieving 6 - 7 degrees of positive caster, greatly improving straight-line stability and high-speed control. Uppers or lowers alone cannot achieve this caster adjustment.
The stock-spring lowers include dropped spring perches to accommodate taller aftermarket springs. Depending on coil spring selection, the front end can lower approximately 1.5 to 1.75 inches from factory height. For more dramatic drops, TRZ offers coilover-specific lowers (316 and 319/S10), which offer 2 - 3 inches of drop.
All TRZ PRO Series uppers include travel limiters to control front-end rise during launches, helping dial in weight transfer for repeatable drag strip performance.
Important: TRZ A-arms are intended for drag racing only and do not include sway bar tabs. They are not designed for street applications.
Performance Highlights
- Complete upper & lower matched kit for proper suspension geometry
- TIG-welded chrome-moly tubular construction
- 6 - 7° caster capability with full kit installed
- Up to 15 lbs per side weight reduction
- Dropped spring perches accommodate taller aftermarket coils
- 1.5 - 1.75-inch front-end drop depending on springs
- Travel limiters included on uppers for launch control
- Designed for drag racing where spindle caster may range from 0 - 10°
Quick Specs
- Application: 1971 - 1976 Chevrolet Impala & Caprice (B-Body)
- Kit Includes: Tubular upper and stock-spring lower control arms
- Material: TIG-welded chrome-moly tubing
- Spring Compatibility: Factory-style springs & shocks
- Front-End Drop: ~1.5 - 1.75 inches depending on coil choice
- Caster Capability: 6 - 7° with full TRZ matched system
- Use Case: Drag racing only (no sway bar tabs)
- Part Number: 321-PRO-STK
Fitment
- Chevrolet Impala
- 1971 Chevrolet Impala
- 1972 Chevrolet Impala
- 1973 Chevrolet Impala
- 1974 Chevrolet Impala
- 1975 Chevrolet Impala
- 1976 Chevrolet Impala
- Chevrolet Caprice
- 1971 Chevrolet Caprice
- 1972 Chevrolet Caprice
- 1973 Chevrolet Caprice
- 1974 Chevrolet Caprice
- 1975 Chevrolet Caprice
- 1976 Chevrolet Caprice
Frequently Asked Questions
Do the uppers or lowers alone provide the 6 - 7° caster adjustment?
No. The complete TRZ upper + lower matched kit is required to achieve the intended caster range.
Will these lowers work with a coilover setup?
No. These are stock-spring-style lowers. Coilover systems require TRZ's 321-CO-Lowers or similar coilover-specific lowers.
