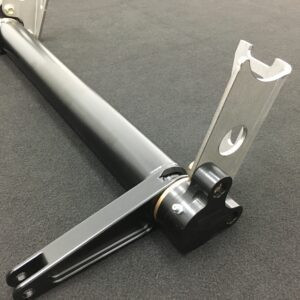

TRZ Motorsports Anti-Roll Bar - Under Housing Mount - Axle Tube Mounts Included - Twin Tube (1970 - 1981 Camaro / Firebird / 1975 - 1979 Nova) - 318-203-UHM-TT
Twin-Tube Under-Housing Anti-Roll Bar for 1970 - 1981 Camaro/Firebird & 1975 - 1979 Nova
The TRZ Motorsports 318-203-UHM-TT Anti-Roll Bar is the extreme-duty Twin Tube "Girth Brooks" version for second-gen F-Body and 1975 - 1979 X-Body racers. Engineered to keep the chassis perfectly square under hard launches, this ARB uses a 1.625" inner chrome-moly tube wrapped inside a 2.25" outer chrome-moly tube for unmatched torsional rigidity.
Designed for under-housing installation, the system includes weld-on axle tube brackets and unwelded heavy-duty ARB links that can be trimmed to the correct length for your Camaro, Firebird, or Nova. TRZ uses pre-determined link center-to-center distances matched to your platform and may contact you for verification if needed.
CNC-machined billet steel arms, billet end caps, and full mounting hardware ensure durability and smooth operation under extreme loads. This setup is ideal for high-horsepower drag cars, radial setups, and any build where keeping the chassis straight is essential for consistent traction.
Once installed, the Twin Tube under-housing ARB delivers exceptional stability, equal rear tire loading, and improved 60-foot consistency.
Performance Highlights
- Twin Tube "Girth Brooks" construction for extreme rigidity
- 1.625" inner + 2.25" outer chrome-moly tubes
- Under-housing mounted design with axle tube brackets included
- Unwelded HD ARB links for custom-length trimming
- Pre-set link spacing tuned for Camaro, Firebird & Nova geometry
- CNC-machined billet steel arms
- Includes billet end caps, hardware, and ARB links
- Eliminates chassis twist for straighter, more consistent launches
Quick Specs
- Vehicle Applications: 1970 - 1981 Camaro / 1970 - 1981 Firebird / 1975 - 1979 Nova
- ARB Style: Twin Tube "Girth Brooks"
- Main Tubes: 1.625" inner + 2.25" outer chrome-moly
- Mount Type: Under-housing (axle tube mounts included)
- Arms: CNC-machined billet steel
- Includes: Axle mounts, ARB links, billet end caps, hardware
- Part Number: 318-203-UHM-TT
Fitment
- 1970 Chevrolet Camaro
- 1971 Chevrolet Camaro
- 1972 Chevrolet Camaro
- 1973 Chevrolet Camaro
- 1974 Chevrolet Camaro
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
- 1975 Chevrolet Nova
- 1976 Chevrolet Nova
- 1977 Chevrolet Nova
- 1978 Chevrolet Nova
- 1979 Chevrolet Nova
Frequently Asked Questions
Who should choose the Twin Tube over the single-tube ARB?
The Twin Tube is ideal for extreme-horsepower F-Body and X-Body builds or radial applications where maximum torsional strength is required.
What are the benefits of an under-housing mount?
It offers clean packaging, keeps the ARB low, and avoids the need for a welded-in crossmember while still delivering exceptional performance.
