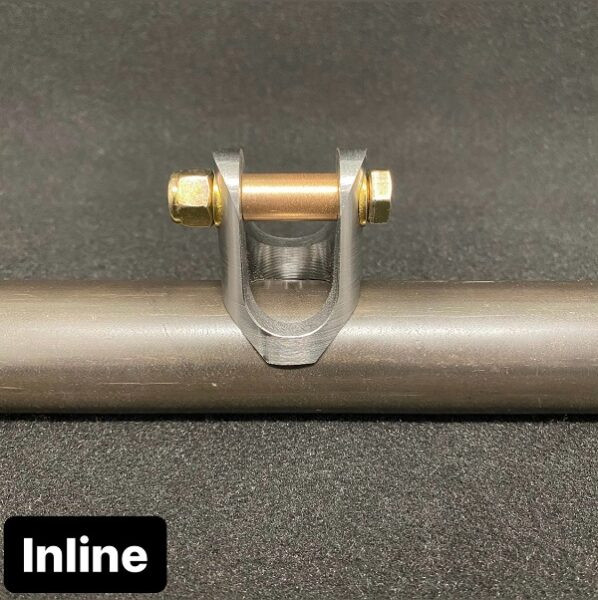

TRZ Motorsports Billet Rear Upper Shock Mounts - Pair - Inline - 20959
Lightweight Billet 4130 Inline Rear Upper Shock Mounts
The TRZ Motorsports Billet Rear Upper Shock Mounts (Inline style) are engineered for builders who need a compact, ultra-strong mounting solution for rear shocks or other chassis components. Machined from high-grade 4130 chromoly billet, these 1-piece clevis mounts are exceptionally lightweight yet significantly stronger than traditional fabricated chassis tabs.
Designed with a 1.625" (1-5/8") radius, these mounts fit perfectly on 1.625" tubing commonly used in cage structures and rear shock crossmembers. They are built for shocks using 1" wide à 0.500" ID upper bearings and include bronze bushings that reduce the shock's bearing ID to 3/8" for the included hardware.
The INLINE configuration positions the bolt hole in line with the mount radius - ideal for crossmembers that mount side-to-side between frame rails. TRZ also offers a CROSS configuration (not this product), where the bolt and radius are oriented 90° to each other.
Performance Features
- Billet 4130 chromoly construction for maximum strength
- 1-piece CNC'd design - lighter and stronger than chassis tabs
- 1.625" radius fits 1-5/8" tubing
- For 1" wide à 0.500" ID upper shock bearings
- Bronze bushings included - converts 0.500" ID to 3/8" ID
- Complete hardware kit: Grade 8 bolts, washers, and nylocks
- INLINE configuration - ideal for side-to-side shock crossmembers
- Can be used for additional chassis mounting purposes
Quick Specs
- Material: Billet 4130 chromoly
- Tubing Radius: 1.625" (1-5/8")
- Bearing Compatibility: 1" wide à 0.500" ID
- Bushing Reduction: Converts to 3/8" ID
- Configuration: INLINE
- Includes: (2) mounts, (2) bronze bushings, (2) bolts, (4) washers, (2) nylocks
- Part Number: 20959
Frequently Asked Questions
What is the difference between INLINE and CROSS style mounts?
INLINE mounts have the bolt hole aligned with the mount radius, ideal for crossmembers running side-to-side. CROSS mounts place the bolt hole 90° from the radius for vertical or front-to-back tubing.
Can these mounts be used for applications other than shocks?
Yes. They can serve as strong, lightweight mounting clevises for transmission crossmembers or other components that attach to 1-5/8" tubing.
