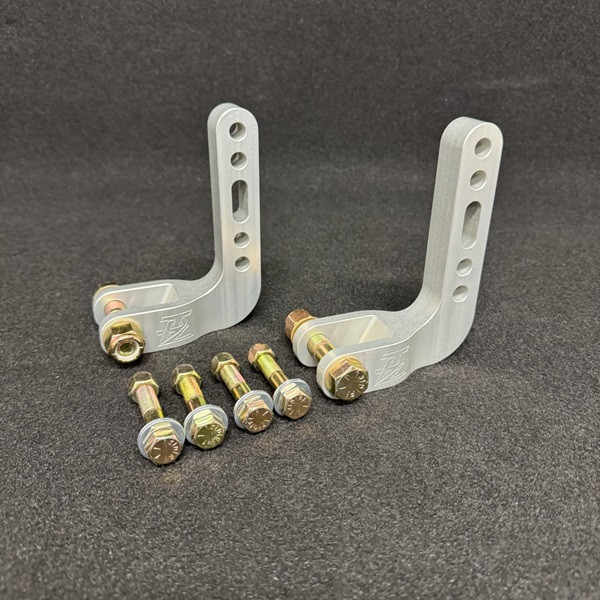

TRZ Motorsports Double Shear Billet Shock Mounts - 2.5" Dropped - Without Shock Mount Spacers - 20926-4
Precision 2.5? Dropped Double Shear Billet Shock Mounts for TRZ & 4-Link Applications
The TRZ Motorsports Double Shear Billet Shock Mounts with a built-in 2.5? drop are engineered for racers needing a stronger, lower, and more geometry-friendly shock mounting solution. CNC-machined from high-strength billet aluminum, these mounts offer improved shock angle options, increased suspension tuning flexibility, and enhanced durability compared to single shear designs.
Designed at 3/4? width, these mounts fit standard 4-link brackets right out of the box. When used with optional spacers (selectable in the dropdown), the width increases to 7/8? - ideal for TRZ ladder bar brackets and most ladder bar configurations.
The slotted mounting design allows compatibility with brackets using 5/8? or 3/4? adjustment holes, and each mount accepts a 1/2? ID x 1? wide shock bearing. Hardware is included for both the shock and chassis mounting points.
Performance Features
- Double shear billet aluminum construction for maximum strength
- Built-in 2.5? drop compared to standard TRZ mounts
- 3/4? wide body fits standard 4-link brackets
- Optional spacers increase width to 7/8? for ladder bar brackets
- Slotted to fit 5/8? or 3/4? adjustment brackets
- Compatible with 1/2? ID x 1? wide shock bearings
- Ideal upgrade from TRZ single shear billet mounts
Quick Specs
- Mount Style: Double shear
- Drop: 2.5?
- Material: CNC-machined billet aluminum
- Base Width: 3/4? (7/8? with optional spacers)
- Shock Bearing Size: 1/2? ID x 1? wide
- Adjustment Slot Fitment: 5/8? or 3/4?
- Part Number: 20926-4
Included Hardware
- Grade 8 shock-to-mount hardware
- 3/8? bracket hardware: 2? bolts, washers, and thick Nyloc nuts
- Fits:
- Existing TRZ coil-over brackets using single shear mounts (requires spacers)
- 1/4? thick 4-link brackets and TRZ 4-link brackets (no spacers required)
- TRZ ladder bar brackets replacing single shear mount (requires spacers)
Frequently Asked Questions
When do I need the optional shock mount spacers?
Use spacers when installing these mounts on ladder bar brackets or when replacing TRZ single shear mounts. Standard 4-link brackets do not require spacers.
What advantage does the 2.5? drop provide?
The built-in drop lowers the shock mounting point, improving suspension leverage, ride height tuning, and shock travel range - especially on drag race setups.
