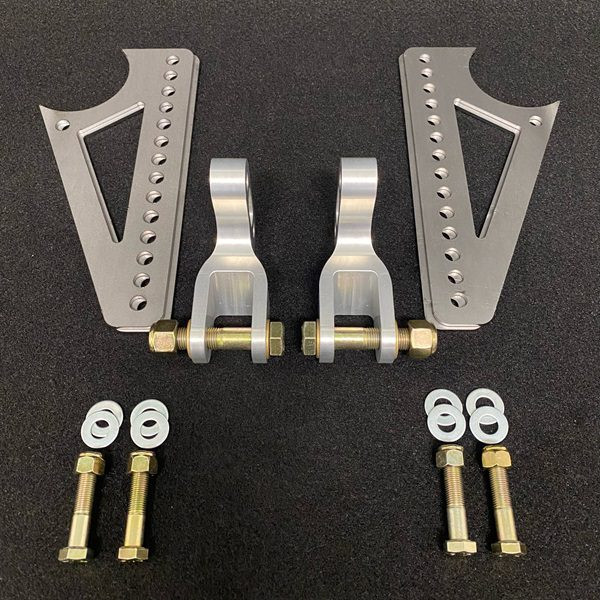

TRZ Motorsports Coil-Over Brackets for Non-Backbraced Housing - 2.5" Dropped Double Shear - 209-27D-4
2.5? Dropped Double-Shear Coil-Over Brackets for Non-Backbraced Housings
The TRZ Motorsports 209-27D-4 Coil-Over Brackets are engineered for non-backbraced rearend housings, offering a strong, race-ready mounting solution with a deeper 2.5? dropped design for improved shock geometry and clearance. These brackets use a robust double-shear configuration, providing excellent rigidity and stability under high horsepower loads.
Machined from premium CNC billet aluminum, the 209-27D-4 brackets are designed to fit 1/2? ID × 1? wide shock bearings and include Grade 8 hardware. The added drop provides more mounting flexibility, especially when pairing with 6? and 7? stroke coil-over shocks. Multiple adjustment points allow for precise fine-tuning of suspension angle and anti-squat characteristics.
With typical installations, 5? stroke shocks mount under the floor, while longer 6? and 7? shocks often mount through the floor based on vehicle layout and upper mount location. TRZ recommends using a lower crossbrace for extra support, especially on high-power drag applications.
Note: For backbraced housings, use Part #209-28S, #209-28D, or #209-28D-4.
Performance Highlights
- Designed for non-backbraced rear housings
- 2.5? dropped mounting design for added clearance
- Heavy-duty double-shear shock mounting
- CNC-machined billet aluminum construction
- Fits 1/2? ID × 1? wide shock bearings
- Multiple shock adjustment positions
- Includes Grade 8 hardware
- Supports 5?, 6?, and 7? coil-over shock stroke lengths
Quick Specs
- Application: Non-backbraced housings
- Bracket Style: 2.5? Dropped Double Shear
- Material: CNC billet aluminum
- Shock Bearing Fitment: 1/2? ID × 1? wide
- Shock Travel Compatibility: 5? - 7? coil-over shocks
- Hardware: Grade 8 included
- Part Number: 209-27D-4
Frequently Asked Questions
What advantages does the 2.5? drop provide?
The deeper drop provides increased clearance and improved shock angle options, especially when using longer 6? or 7? stroke shocks.
Do these brackets work with backbraced housings?
No. These are exclusive to non-backbraced housings. For backbraced setups, use the 209-28 series brackets.
