TRZ Motorsports Anti-Roll Bar - 5" Arms - Crossmember Mount - With Twin Tube / Girth Brooks - Builders Kit - Unwelded - 203-UW5-TT
Heavy-Duty Unwelded Twin Tube Anti-Roll Bar Builder's Kit
The TRZ Motorsports 203-UW5-TT Anti-Roll Bar Kit is a premium twin-tube / Girth Brooks - style drag racing ARB system designed for racers who want maximum chassis control, straighter launches, and repeatable 60-foot times. This unwelded builder's kit lets fabricators tailor the setup exactly to their chassis while retaining all the benefits of TRZ's proven anti-roll bar engineering.

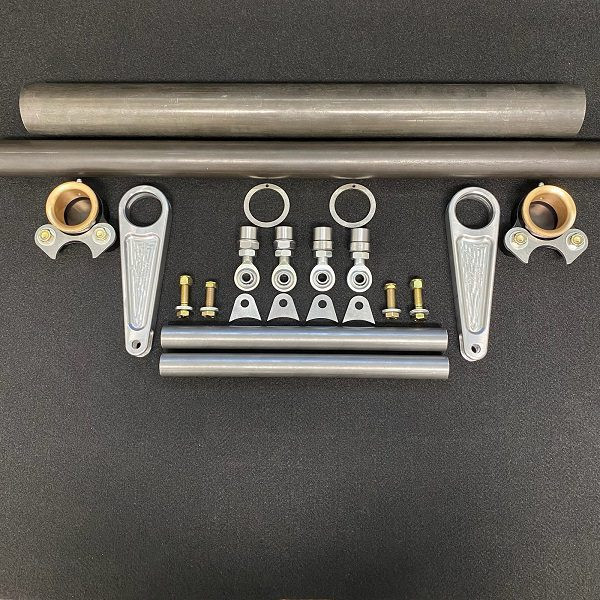

This kit includes the unwelded HD ARB link kit (1" chrome-moly tubes, rod ends, inserts, tabs, and Grade 8 hardware) plus the ultra-strong 1-5/8" inner tube paired with a 2-1/4" outer tube for the full twin-tube assembly. The result is an extremely rigid ARB with increased torsional resistance - ideal for high-horsepower drag applications.
You can build the bar up to 25" center-to-center between ARB links (shortening is allowed as needed). Choose from 5" or 6" CNC-machined billet one-piece arms, measured center of main tube to center of rod end, to suit your suspension geometry. Mounting brackets are included for crossmember installation on any 1.625" tube (crossmember not included). Twin-tube kits are not compatible with under-housing mounts due to clearance limitations.
The system also includes billet aluminum end caps with bronze bushings and grease fittings for smooth operation (bronze ID may require light sanding after welding). Once properly installed, this ARB design eliminates body roll, delivering straighter, more efficient, and more controlled launches.
Performance Highlights
- Twin-tube / Girth Brooks ultra HD anti-roll bar design for maximum rigidity
- Unwelded builder's kit for complete fabrication flexibility
- Includes chrome-moly 1" tubes, rod ends, housing tabs, and hardware
- 1-5/8" inner tube + 2-1/4" outer tube ARB construction
- Up to 25" center-to-center ARB link spacing
- Choose 5" or 6" billet CNC-machined ARB arms
- Crossmember mounting brackets included (1.625" OD tube)
- No body roll when installed correctly
- Improves launch stability and weight transfer efficiency
Quick Specs
- Kit Type: Unwelded HD Twin Tube Anti-Roll Bar (Builder's Kit)
- Main Tube: 1-5/8" chrome-moly (inner)
- Outer Tube: 2-1/4" chrome-moly (twin tube system)
- Arms: 5" or 6" billet CNC one-piece arms
- Max ARB Width: 25" center-to-center (shortenable)
- Mount Style: Crossmember mount (1.625" tube)
- Under-Housing Mount: Not compatible with twin-tube kits
- End Caps: Billet aluminum w/ bronze bushings
- Part Number: 203-UW5-TT
Frequently Asked Questions
Why choose the Twin Tube / Girth Brooks anti-roll bar over the standard version?
The twin-tube design offers significantly higher torsional strength and rigidity, making it ideal for high-horsepower drag cars needing maximum stability and zero body roll.
Does this kit require welding?
Yes. This is a full builder's kit designed to be welded during installation, including the arms, brackets, and final tube fitment.
