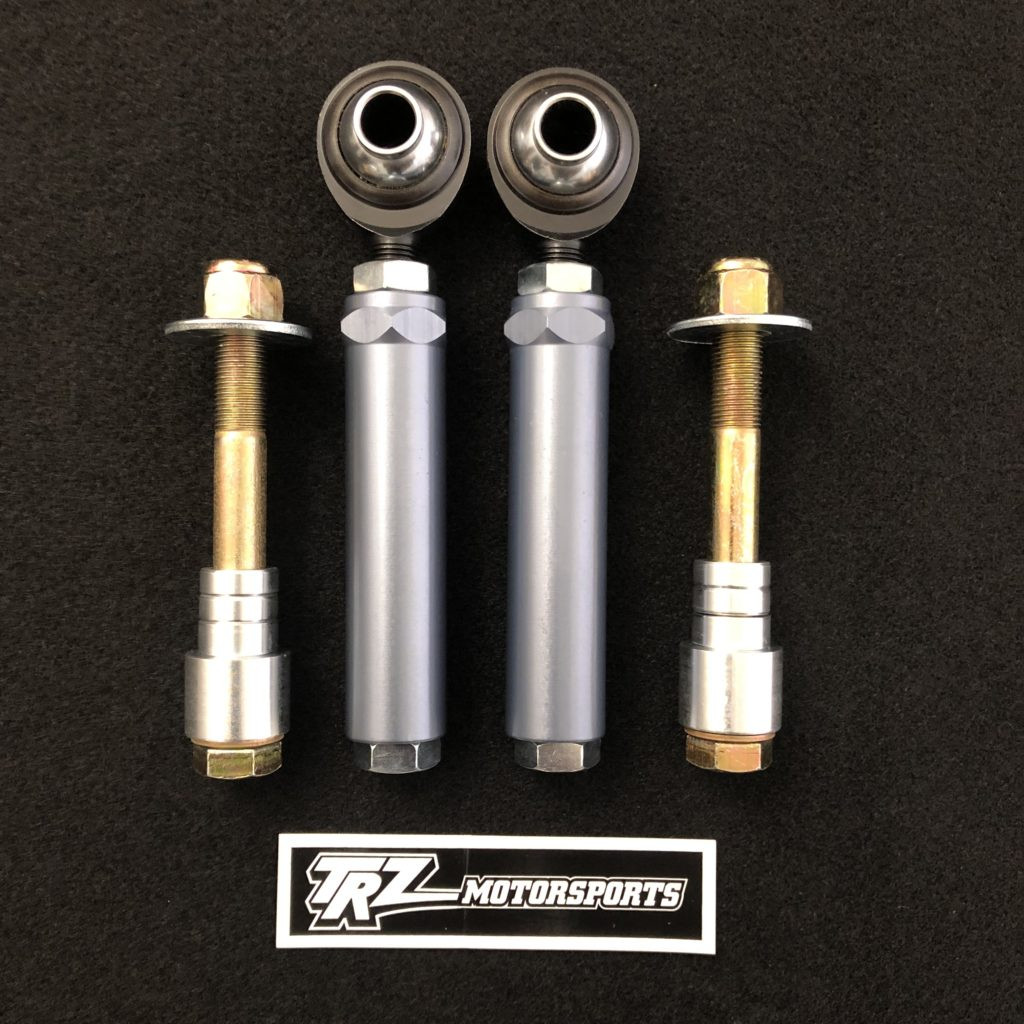

TRZ Motorsports Universal Tie-Rod / Bump Steer Kit for Rack and Pinion - Length: 4.250 (4.000 - 5.250) - 202-425
Adjustable Tie-Rod & Bump Steer Kit for Pinto Rack-and-Pinion Systems
The TRZ Motorsports Universal Tie-Rod / Bump Steer Kit in the 4.000? - 5.250? adjustable range is engineered to replace factory non-adjustable tie-rod ends and provide the precision needed to maintain proper steering geometry. Whether you're building a drag car or a custom chassis setup, this kit is designed to minimize bump steer when dialed in correctly.
Ideal for both standard and narrowed Pinto rack-and-pinion setups using 1/2-20 tie-rod threads, the kit includes durable chrome-moly rod ends, high-strength Grade 8 hardware, and lightweight 6061 aluminum spacers. Installation requires drilling the spindle or steering arm's tapered hole to 1/2?.
TRZ provides straightforward instructions for measuring your vehicle's A-Dimension, ensuring you choose the correct adjuster length. If your measurement exceeds 7?, TRZ recommends using the Universal Weld-Up Kit to build a custom-length adjuster.
Performance Features
- Replaces non-adjustable tie-rod ends for improved geometry
- Helps minimize bump steer when properly adjusted
- Adjustable from 4.000? to 5.250?
- Chrome-moly rod ends included
- 6061 aluminum spacers for lightweight strength
- Grade 8 hardware for maximum durability
- Requires drilling stock spindle/steering arm to 1/2?
- Compatible with standard and narrowed Pinto racks (1/2-20 thread)
How to Measure Your A-Dimension
- Point wheels straight forward
- Center rack-and-pinion assembly
- Align tie-rods toward steering arm hole
- Measure from rack thread end to hole center
- Both sides must match - unequal values indicate an off-center rack
Weld-Up Kit Includes (If Needed)
- (2) 12? pieces of 1? 4130 tubing
- (2) 1/2-20 RH tube inserts
- (2) 1/2-20 LH tube inserts
Quick Specs
- Application: Universal rack-and-pinion bump steer corrector
- Adjustable Length: 4.000? - 5.250?
- Thread Type: 1/2-20 (Pinto rack compatible)
- Rod Ends: Chrome-moly
- Spacers: 6061 aluminum
- Hardware: Grade 8
- Part Number: 202-425
Frequently Asked Questions
Do I need to drill my steering arm or spindle?
Yes. You must drill the tapered hole to 1/2? so the supplied hardware seats properly.
How do I know whether to choose the weld-up kit?
If your A-Dimension exceeds 7 inches, TRZ recommends the weld-up kit for a custom-length setup.
