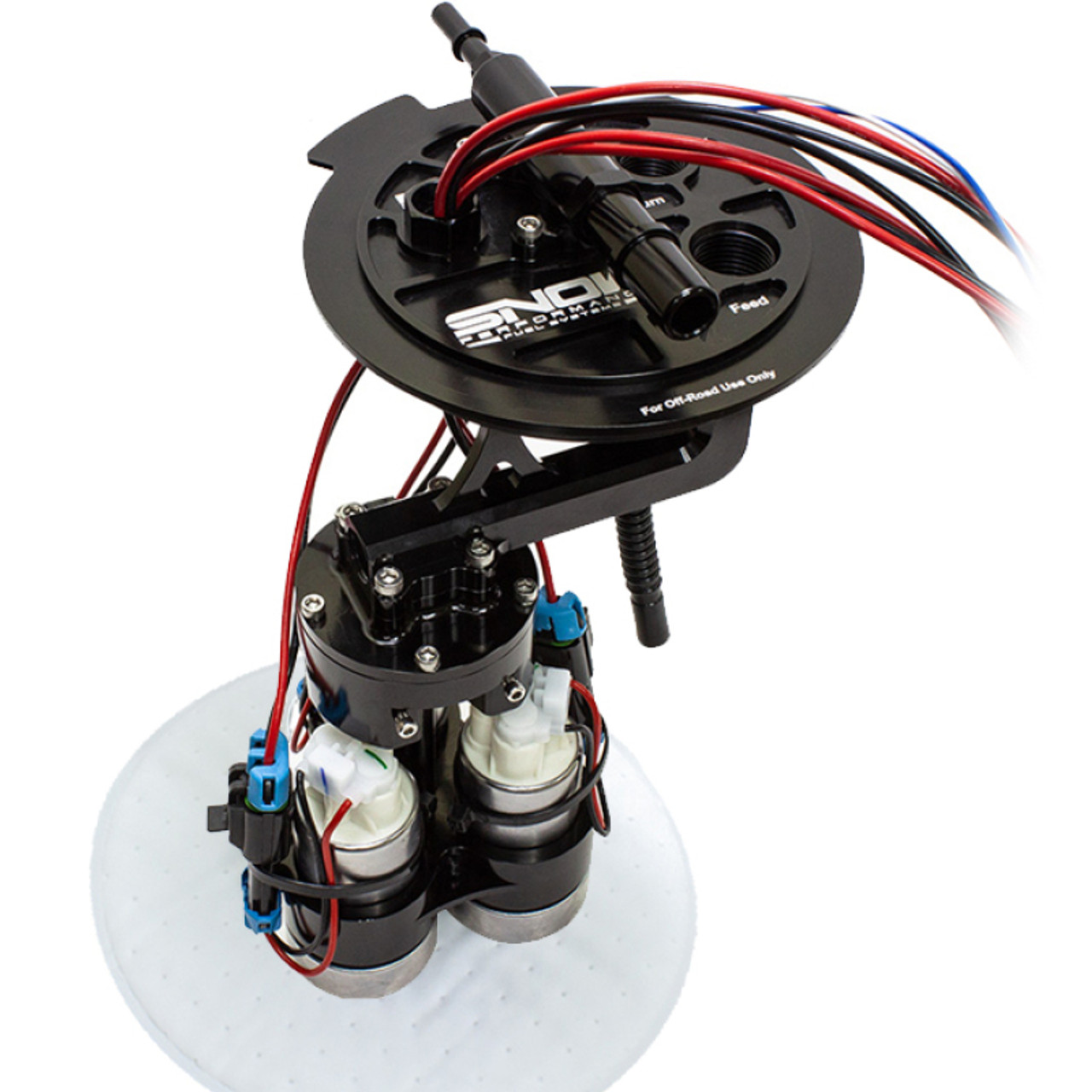

Truck Fuel Hat – Triple Pump Xtreme (SNF-52800X) - 2015+ Ford F-150
Chasing maximum flow for maximum power? Snow Performance’s Xtreme triple-pump hat is the no-compromise answer. A CNC-bored, black-anodized 6061 billet manifold replaces tees and hose clamps with clean, leak-free routing, while Viton seals and OE-grade TI Automotive pumps deliver the reliability serious builds demand.
This is a max-effort setup: three 490 LPH (535) pumps run together to support ~1900+ rwhp on E85 and up to ~2500 rwhp on gasoline (with proper supporting mods). Because all three pumps share a common path, they must be powered simultaneously—staging is not supported. If you need staged operation, choose a Streetable or Race configuration instead.
Key Features
- Triple 490 LPH (535) TI Automotive/Walbro pumps for extreme flow.
- Supports ~1900+ rwhp on E85 and up to ~2500 rwhp on gasoline (system dependent).
- Billet 6061 aluminum hat, black anodized for durability and corrosion resistance.
- CNC internal passages eliminate external tees and rubber lines for fewer failure points.
- Viton chemical-resistant O-rings for secure, leak-free sealing.
- Ports: 10AN ORB feed and 8AN ORB return; 90° swivel adapters sold separately (adapt to 10AN/8AN/6AN).
- Shared pickup sock merges all three pumps to one feed; integrated 10-micron pre-filter mounts to the pumps and doesn’t require full submersion.
- Return-style systems only; compatible with gasoline and ethanol blends (E10–E98); not compatible with methanol.
- Engineered, CNC-machined, and built in the USA.
What’s Included
- Snow Performance triple-pump billet fuel hat assembly
- 3× 490 LPH (535) TI Automotive/Walbro pumps
- Viton seals and hardware
- Integrated shared pickup sock and 10-micron pre-filter
Notes
- Vehicle: 2015+ Ford F-150
- Operation: all three pumps must run simultaneously; Xtreme configuration is not stageable.
- Installation: return-style only (not for returnless systems). Fittings/line adapters sold separately.
Fitment:
- 2015 Ford F-150
- 2016 Ford F-150
- 2017 Ford F-150
- 2018 Ford F-150
- 2019 Ford F-150
- 2020 Ford F-150
- 2021 Ford F-150
- 2022 Ford F-150
- 2023 Ford F-150
- 2024 Ford F-150
- 2025 Ford F-150
