Billet Fuel Hat – Triple Pump Xtreme (SNF-52601X) - 2011+ Ford Mustang
When “more” still isn’t enough, Snow Performance’s Xtreme triple-pump hat delivers max-effort, max-flow fueling for record-chasing builds. A CNC-bored 6061 billet manifold replaces tees and rubber lines with clean, leak-free routing, while black anodizing and Viton seals stand up to ethanol and hard use. It’s the no-compromise way to keep your Mustang fed when the boost gauge is buried.
This configuration is all business: three 490 LPH (535) TI Automotive pumps run together to support ~1900+ rwhp on E85 and up to ~2500 rwhp on gasoline (with proper supporting hardware). Because flow is shared, all three pumps must be powered simultaneously—this setup is not stageable. If you need staged control, choose the Streetable or Race configurations instead.
Key Features
- Triple 490 LPH (535) TI Automotive/Walbro pumps for extreme flow and headroom.
- Supports ~1900+ rwhp on E85 and up to ~2500 rwhp on gasoline, system dependent.
- 6061 billet aluminum hat with black anodize for durability and corrosion resistance.
- CNC internal passages eliminate external tees and fragile hoses for fewer failure points.
- Viton chemical-resistant O-rings for secure, leak-free sealing.
- Ports: 10AN ORB feed and 8AN ORB return; 90° swivel adapters sold separately (adapt to 10AN/8AN/6AN).
- Shared pickup sock merges all three pumps to one feed; integrated 10-micron pre-filter mounts to the pumps and doesn’t require full submersion.
- Return-style systems only; compatible with gasoline and ethanol blends (E10–E98); not compatible with methanol.
What’s Included

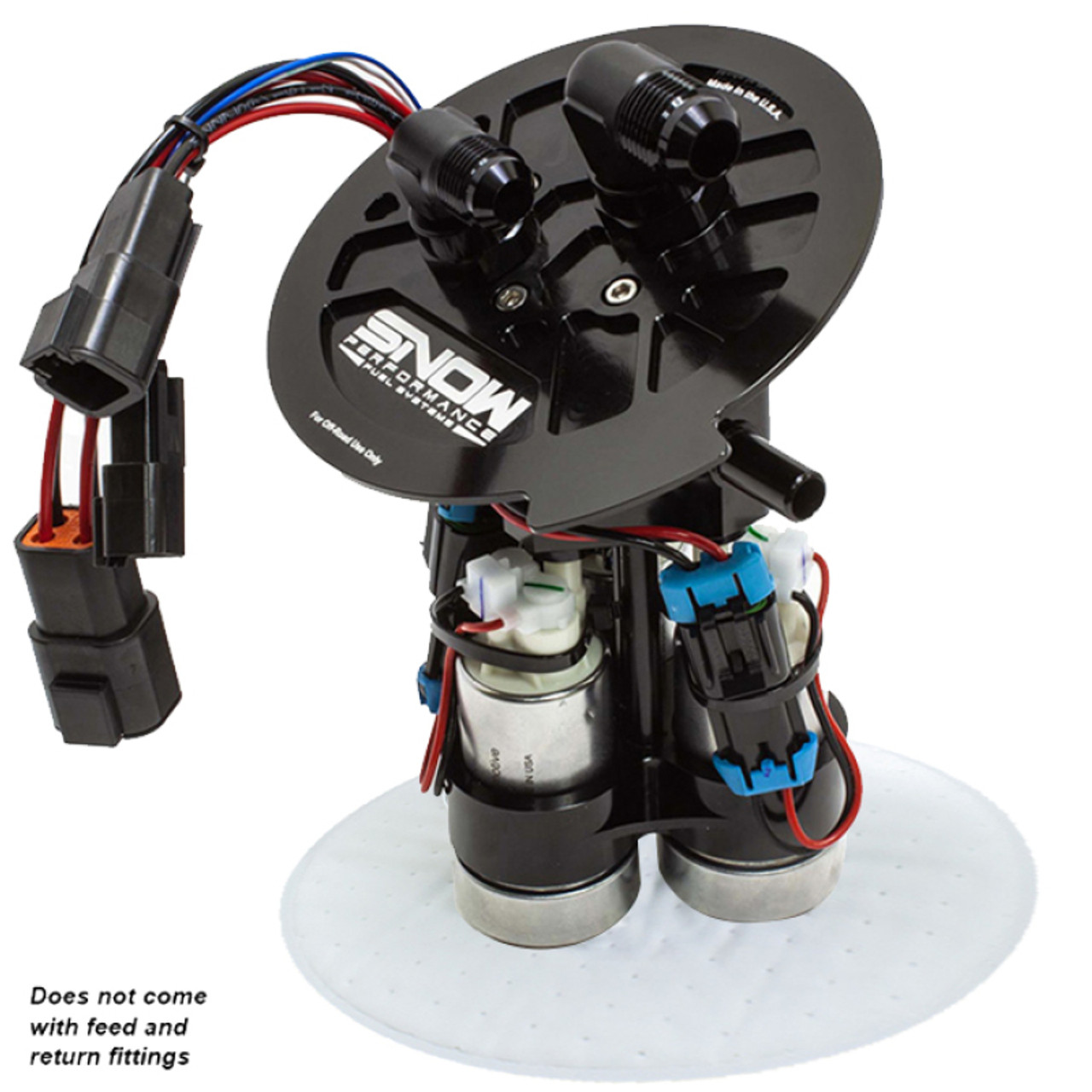

- Snow Performance triple-pump billet fuel hat assembly
- 3× 490 LPH (535) TI Automotive/Walbro pumps
- Viton seals and hardware
- Integrated shared pickup sock and 10-micron pre-filter
Notes
- Vehicle: 2011–current Ford Mustang
- Operation: all three pumps must run simultaneously; Xtreme configuration is not stageable.
- Installation: return-style only (not for returnless systems). Fittings/line adapters sold separately.
Fitment:
- 2011 Ford Mustang
- 2012 Ford Mustang
- 2013 Ford Mustang
- 2014 Ford Mustang
- 2015 Ford Mustang
- 2016 Ford Mustang
- 2017 Ford Mustang
- 2018 Ford Mustang
- 2019 Ford Mustang
- 2020 Ford Mustang
- 2021 Ford Mustang
- 2022 Ford Mustang
- 2023 Ford Mustang
- 2024 Ford Mustang
- 2025 Ford Mustang
