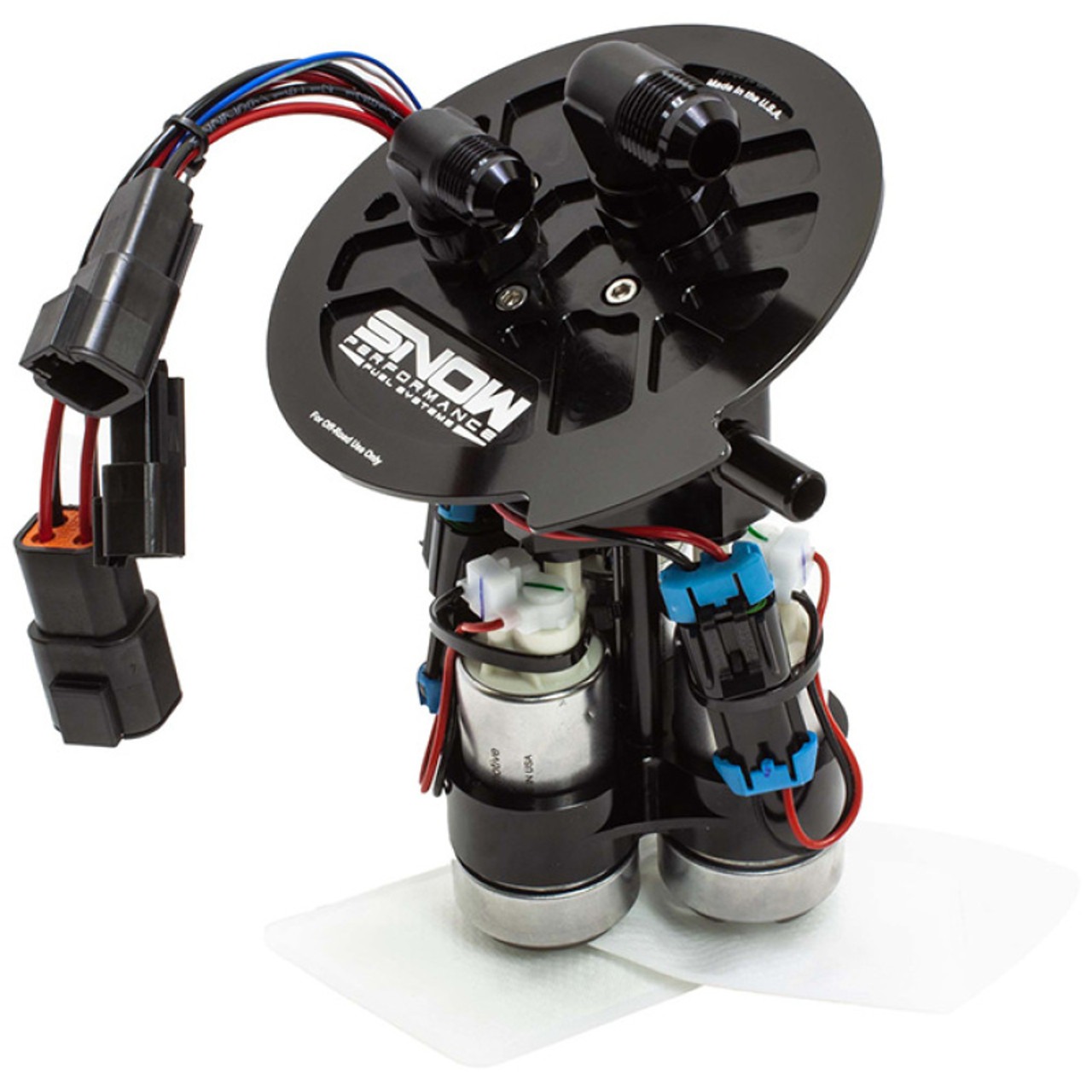

Billet Fuel Hat – Triple Pump Streetable (SNF-52601H) - 2011+ Ford Mustang
Make big power without a messy tank. Snow Performance’s triple-pump streetable hat replaces tees, clamps, and fragile hoses with a sleek, CNC-bored 6061 billet manifold that flows hard, seals tight, and looks OEM-clean. It’s the confident way to feed a high-horsepower Coyote or Godzilla swap without turning your fuel system into a science project.
Built for the street, ready for boost: cruise on the efficient 450 LPH pump, then bring two 470 LPH pumps online when the throttle goes down. This staged combo supports ~1500+ rwhp on E85 and up to ~2000 rwhp on gasoline (with proper supporting mods) while drawing 10–12% less current than the Race triple. Black anodizing resists corrosion, Viton O-rings handle harsh fuels, and the integrated 10-micron pre-filter plus shared pickup sock keep all pumps fed through launches and long sweepers.
Key Features
- Streetable triple: 1× 450 LPH + 2× 470 LPH (genuine TI Automotive/Walbro).
- Supports ~1500+ rwhp on E85 and up to ~2000 rwhp on gasoline, system dependent.
- Draws ~10–12% less current than the “Race” 3-pump configuration.
- 6061 billet aluminum hat, black anodized; CNC internal passages, no external tees or rubber lines.
- Viton chemical-resistant O-rings for a secure, leak-free seal.
- Ports: 10AN ORB feed and 8AN ORB return; 90° swivel adapters sold separately (adapt to 10AN/8AN/6AN).
- Shared pickup sock merges all three pumps to one feed; integrated 10-micron pre-filter mounts to the pumps.
- Return-style systems only; compatible with gasoline and ethanol blends (E10–E98); not for methanol.
- Staged control ready with Snow Boost Switch (SNO-81014) and Multi-Pump Relay Module (SNF-20003), sold separately.
What’s Included
- Snow Performance triple-pump billet fuel hat assembly
- 1× 450 LPH + 2× 470 LPH TI Automotive (Walbro) pumps
- Viton seals and hardware
- Integrated shared pickup sock and 10-micron pre-filter
Notes
- Vehicle: 2011–current Ford Mustang
- Installation: return-style only (not for returnless systems)
- Fittings/line adapters sold separately
Fitment:
- 2011 Ford Mustang
- 2012 Ford Mustang
- 2013 Ford Mustang
- 2014 Ford Mustang
- 2015 Ford Mustang
- 2016 Ford Mustang
- 2017 Ford Mustang
- 2018 Ford Mustang
- 2019 Ford Mustang
- 2020 Ford Mustang
- 2021 Ford Mustang
- 2022 Ford Mustang
- 2023 Ford Mustang
- 2024 Ford Mustang
- 2025 Ford Mustang
