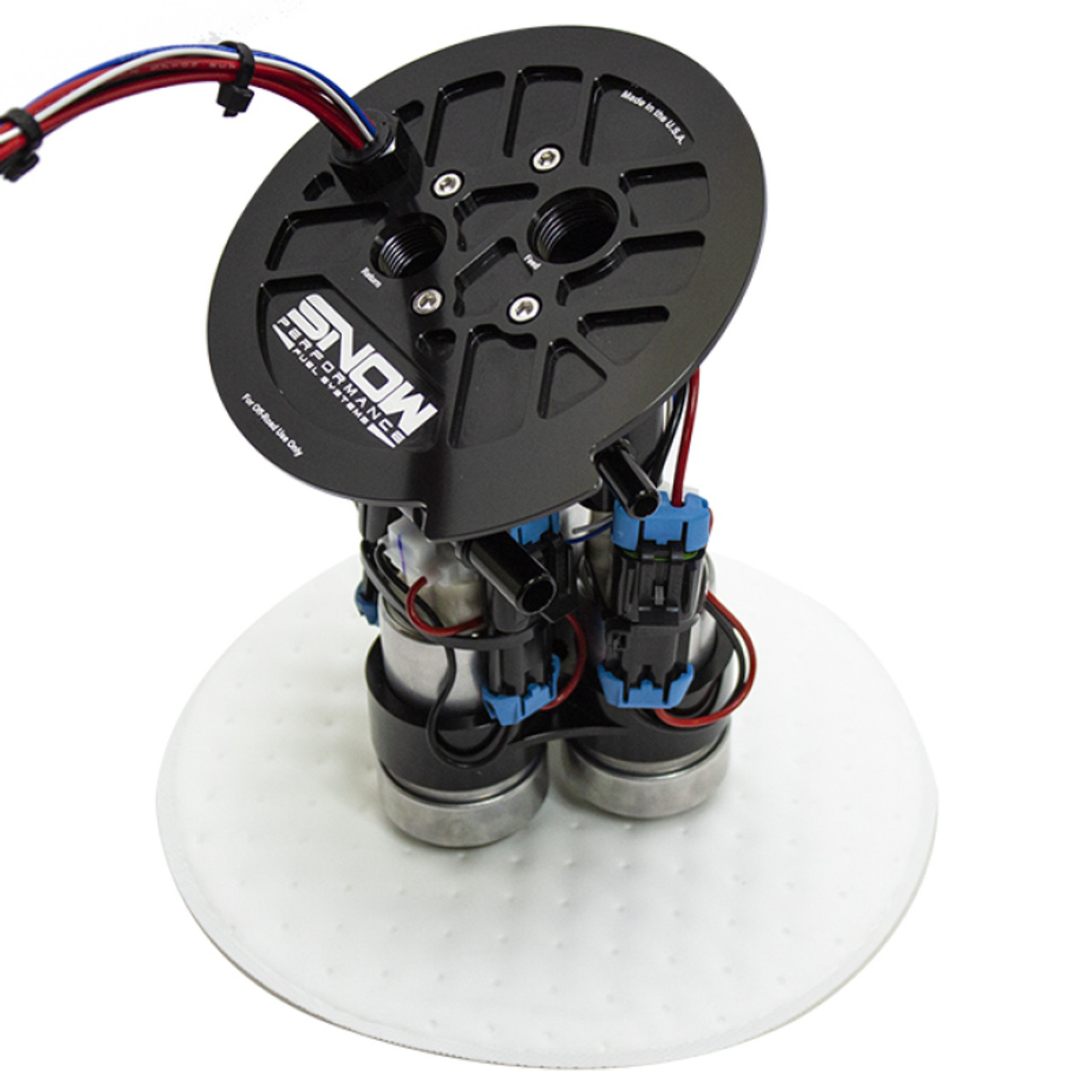

Snow Fuel Hat – Triple Pump Xtreme (2020–2022 Shelby GT500) – SNF-52300X
Done wrestling with multi-pump fuel setups that rely on T-fittings, fragile hoses, and clamp-heavy installs? Snow Performance offers a smarter, high-output solution built for serious horsepower.
Their Multi-Pump Fuel Hat system features a CNC-machined billet aluminum manifold with internal flow channels, eliminating the need for rubber lines and hose clamps that can degrade over time. Every detail is engineered for durability—from secure pump retention to Viton O-rings that deliver a leak-proof seal under pressure.
Manufactured in the USA from 6061 billet aluminum and finished in black anodizing, these hats are built to resist corrosion and handle aggressive fuels like E85 with confidence.
Fuel hats include female 10AN ORB feed and 8AN ORB return ports. Swivel adapter fittings (sold separately) allow easy integration with 10AN, 8AN, or 6AN lines. Pump assemblies are available in 2- or 3-pump configurations using genuine TI Automotive (Walbro) pumps—choose from 450 LPH, 470 LPH (HELLCAT 525), or 490 LPH (535) depending on your build.
These systems are designed for return-style fuel setups only. Not compatible with returnless configurations. Pumps support gasoline, ethanol blends (E10, E85, E98), and 100% ethanol. Methanol is not supported.
For street-driven builds, pairing a smaller pump with one or two larger units allows for efficient cruising and full power under boost. To stage pumps based on boost, use the Snow Performance Boost-Activated Pressure Switch (SNO-81014) and Multi-Pump Relay Module (SNF-20003).
A standout feature is the integrated pump sock that merges all three pumps into a single feed. This prevents fuel starvation during spirited driving—even if only one sock is submerged. The 10-micron pre-filter mounts directly to the pumps, eliminating bulkheads and excess hardware while maintaining consistent flow.
Pump Configuration Options:
- 2 Pump Streetable: One 450 LPH + One 470 LPH. Supports 1000+ RWHP on E85 / 1300+ RWHP on gasoline.
- 3 Pump Streetable: One 450 LPH + Two 470 LPH. Supports 1500+ RWHP on E85 / 2000+ RWHP on gasoline. Draws 10–12% less current than the Race setup.
- 3 Pump Race: Three 470 LPH (HELLCAT 525). Supports 1600+ RWHP on E85 / 2100+ RWHP on gasoline.
- 3 Pump Xtreme: Three 490 LPH (535). Supports 1900+ RWHP on E85 / 2500+ RWHP on gasoline. All three pumps must run simultaneously. This configuration is not compatible with staged activation. For staged setups, choose the Race, Street, or 2-Pump option.
Please allow 1–3 business days for assembly.
Fitment:
- 2020 Mustang Shelby GT500
- 2021 Mustang Shelby GT500
- 2022 Mustang Shelby GT500
