Snow Fuel Hat Triple Pump Race (2014 - 2019 C7 Corvette) SNF-52150R

Snow Fuel Hat Triple Pump Race (2014 - 2019 C7 Corvette) SNF-52150R

Image is a representation of this item.
Actual item may vary.

Item#:
SNOSNF-52150R
$1,697.85
Price: $1,212.75
(You save $485.10 )
(No reviews yet) Write a Review
UPC:
653374984218
Availability:
Regularly stocked product
CARB:
This product is not CARB Legal and not for sale in California
Category:
Fuel Delivery>Fuel Pumps
Clearance Item:
N
Core:
N
LTL:
N
MPN:
SNF-52150R
Product ID:
720975
Proposition 65:
Y

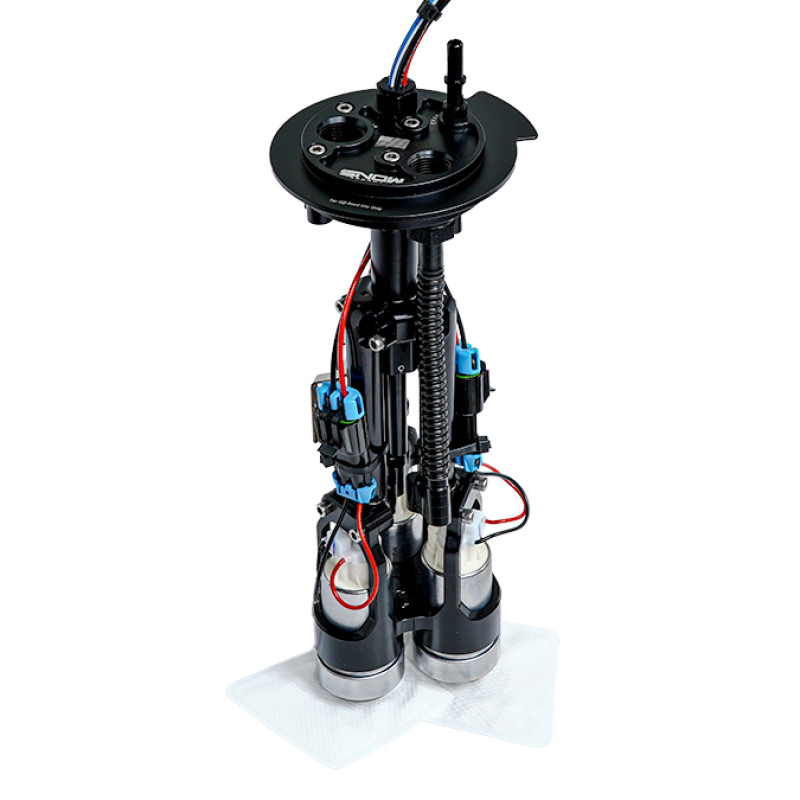

Snow Triple Pump Fuel Hat Race Configuration for 2014 - 2019 C7 Corvette - SNF-52150R

 The Snow Performance Multi-Pump Fuel Hat is the ultimate high-output fuel pump upgrade for your vehicle, eliminating the need for unreliable T-fittings, hoses, and clamps. This assembly features a billet aluminum manifold with CNC-machined passages for a clean, leak-free design. CNC-machined bodies securely hold the fuel pumps and feature Viton chemical-resistant O-rings. Engineered and built in the USA from 6061 billet aluminum, these fuel hats are finished with a black anodized coating for superior durability and corrosion resistance, making them compatible with E85 and other harsh fuels.

For street-driven applications, you can combine a smaller fuel pump with one or two larger pumps. This allows you to drive on the lower-amp-draw pump to reduce heat, and then activate the larger pumps when you get into boost. The unique pump sock merges all three pumps into a single feed, preventing fuel starvation during performance driving. The 10-micron pre-filter also mounts directly to the pumps, eliminating the need for extra bulkheads and hardware.

Key Features:

    • Billet 6061 aluminum construction with black anodized finish for E85 compatibility
    • Secure, leak-free design with CNC-machined passages and Viton O-rings
    • Female 10AN ORB feed and 8AN ORB return ports
    • Compatible with genuine TI Automotive (Walbro) fuel pumps (450 LPH, 470 LPH, 490 LPH)
    • Designed for a return-style installation
    • Includes a pump sock that merges all three pumps into one feed
    • 10-micron pre-filter mounts directly to the pumps
    • Available in multiple pump configurations to meet specific fuel demands
    • Compatible with 100% Gasoline, 100% Ethanol, and blends (E10, E85, E98)
    • NOT compatible with methanol

 What’s Included:

    • Triple Pump Race Fuel Hat
    • Wiring Harness for pumps and fuel level sending unit

Notes

    • Fittings are sold separately.
    • For street-able configurations, it's recommended to stage pumps using a Snow Performance Boost activated pressure switch (part #SNO-81014) and a Snow Performance Multi-Pump Relay Module (part #SNF-20003).
    • This Race configuration (Three 470LPH pumps) is capable of supporting 1600+ rwhp on E85 and up to 2100 rwhp on gasoline.
    • All three pumps MUST run at the same time in this "Race" configuration to avoid pressure issues.

Fitment:

- 2014 Chevrolet Corvette
- 2015 Chevrolet Corvette
- 2016 Chevrolet Corvette
- 2017 Chevrolet Corvette
- 2018 Chevrolet Corvette
- 2019 Chevrolet Corvette
