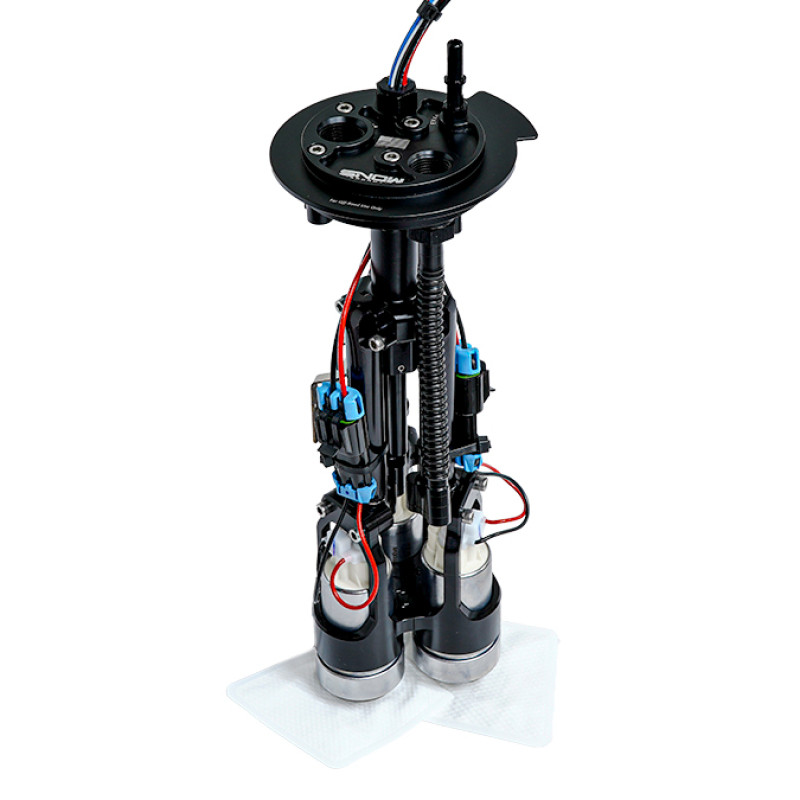

Snow Triple Pump Fuel Hat – Streetable Configuration for 2014–2019 C7 Corvette SNF-52150H
Tired of fuel system upgrades that rely on a mess of T-fittings, rubber hoses, and unreliable clamps? Snow Performance offers a cleaner, more efficient solution. Their Multi-Pump Fuel Hat features a billet aluminum manifold with CNC-machined internal passages—eliminating the need for deteriorating lines and leak-prone connections. Every detail is engineered for durability and high-output performance.
Crafted in the USA from 6061 billet aluminum, each fuel hat is finished in black anodizing for enhanced corrosion resistance and long-term compatibility with E85 and other aggressive fuels. Viton O-rings provide a secure, leak-free seal, while the pump bodies are precision-machined to hold fuel pumps firmly in place.
Fuel hats include female 10AN ORB feed and 8AN ORB return ports. Swivel adapter fittings (sold separately) allow easy integration with 10AN, 8AN, or 6AN fuel lines. Pump configurations are customizable using genuine TI Automotive (Walbro) units in 450 LPH, 470 LPH (Hellcat 525), or 490 LPH (535) flow rates—no knockoffs, just OE-grade reliability.
Compatibility Notes:
- Designed for return-style fuel systems only
- Not suitable for returnless setups
- Compatible with gasoline, ethanol blends (E10, E85, E98), but not methanol
Street-Driven Efficiency: For daily-driven builds, pairing a smaller pump with one or two larger units allows low-amp cruising and cooler operation. Under boost, the larger pumps activate to support high horsepower. For staged activation, use Snow’s Boost-Activated Pressure Switch (SNO-81014) and Multi-Pump Relay Module (SNF-20003).
Integrated Pump Sock & Pre-Filter: A shared pump sock merges all three pumps into a single feed, preventing fuel starvation during spirited driving. The 10-micron pre-filter mounts directly to the pumps—no bulkheads or extra hardware needed.
Available Configurations:
- 2 Pump Streetable: One 450 LPH + One 470 LPH
Supports 1000+ RWHP on E85 / 1300+ RWHP on gasoline - 3 Pump Streetable: One 450 LPH + Two 470 LPH
Supports 1500+ RWHP on E85 / 2000+ RWHP on gasoline
Draws 10–12% less current than Race version - 3 Pump Race: Three 470 LPH (Hellcat 525)
Supports 1600+ RWHP on E85 / 2100+ RWHP on gasoline - 3 Pump Xtreme: Three 490 LPH (535)
Supports 1900+ RWHP on E85 / 2500+ RWHP on gasoline
All pumps must run simultaneously—staging not supported
Includes:
- Wiring harness for fuel pumps and fuel level sending unit
- Fuel hat assembly (fittings sold separately)
Build Time: Please allow 1–3 business days for assembly and prep.
Fitment:
- 2014 Chevrolet Corvette
- 2015 Chevrolet Corvette
- 2016 Chevrolet Corvette
- 2017 Chevrolet Corvette
- 2018 Chevrolet Corvette
- 2019 Chevrolet Corvette
