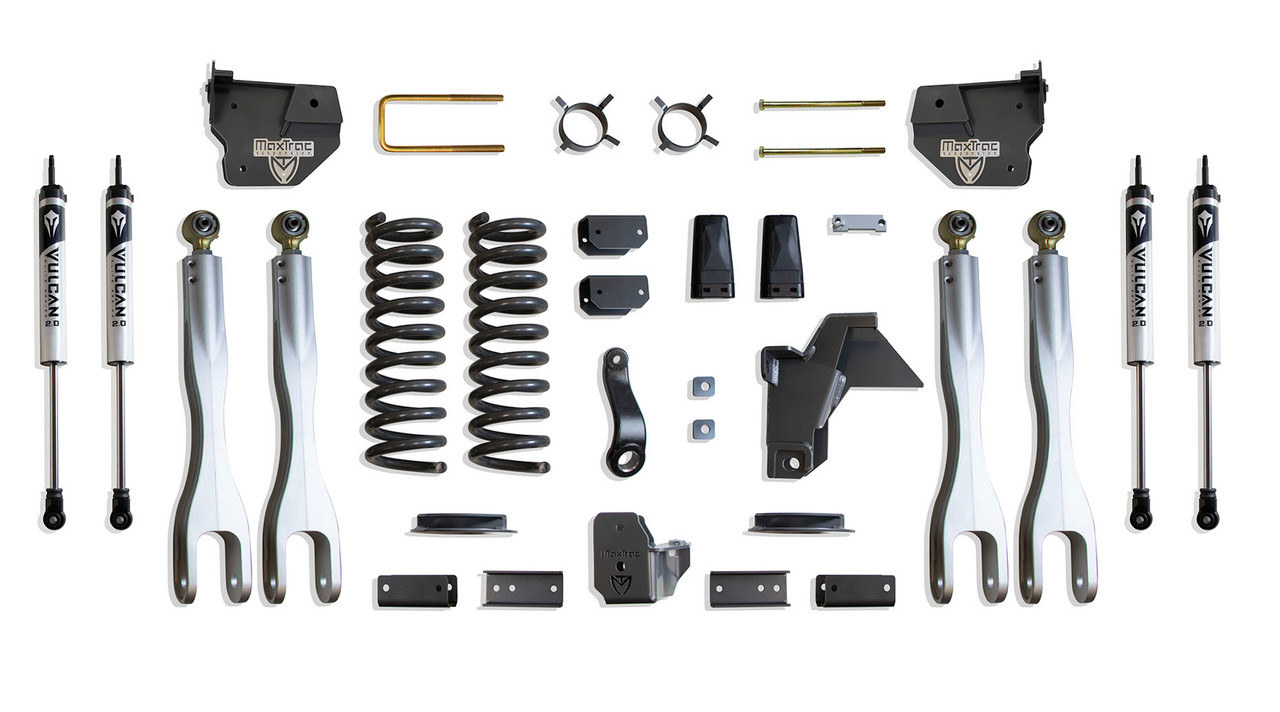

MAX TRAC SUSPENSION’S KIT# K947441VLA IS A COMPLETE 4″ LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, TRAC BAR BRACKETS, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, REAR AIR BAG SPACERS & FRONT/REAR VULCAN SERIES SHOCKS
Product Specs
Engine Types: Diesel
UPC: N/A
Tariff: N/A
Kit Type: LIFT/LEVEL
Lift (Front): 4
Lift (Rear): 1.5
Weight: 325 lbs
Shock Details: F: 2400SLV-4 (X2), R: 2400LSV-4 (X2)
Country Of Origin: N/A
Sold As Each Pair Kit Set Case Combo: KIT
Color: GREY
Finish: GREY POWDERCOAT
Material: STEEL
Multiple Box Item: Y
Origin Criterion: N/A
Unit Of Measure: IN
California Residents : WARNING, Proposition 65 Notice
KIT OR COMPONENT BOX BREAKDOWN
752840 - 2014-2024 RAM 2500/3500 4WD DIESEL 4″ FRONT LIFT COILS
947400-1 - 2019-2024 RAM 2500/3500 4WD BRACKETS & HARDWARE – 4″-6″ LIFT HEIGHT (BOX 1)
947200-3 - 2014-2024 RAM 2500/3500 4WD DRIVER SIDE 4-LINKS & BRACKET – 4″, 6″, & 8″ LIFT HEIGHT (BOX 3)
947200-4 - 2014-2024 RAM 2500/3500 4WD PASSENGER SIDE 4-LINKS & BRACKET – 4″, 6″, & 8″ LIFT HEIGHT (BOX 4)
907215A - 2014-2024 RAM 2500 4WD 1.5″ REAR LIFT BOX KIT (FACTORY REAR AIR RIDE)
947240VA - 2014-2024 RAM 2500 4WD F&R VULCAN SERIES IFP SHOCKS – 4″ LIFT HEIGHT (FACTORY REAR AIR RIDE)
IMPORTANT FOOTNOTES ! PLEASE READ !
- REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
- CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
- FENDER TRIMMING MAY BE REQUIRED
- DOES NOT FIT 2WD MODELS
- NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
- DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
- DOES NOT FIT POWER WAGON MODELS
- MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES`
