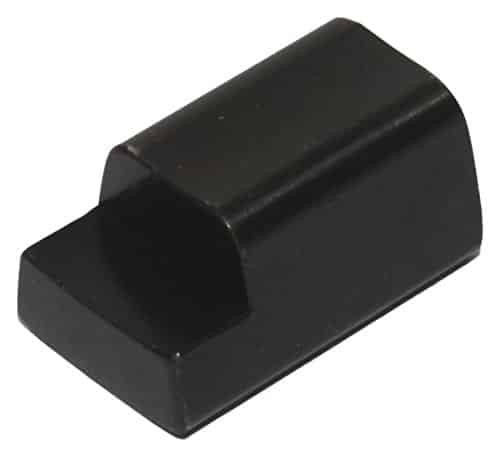

GPI Gen 5 LT VVT Phaser Limiter Plug Only - 0 Degree Lockout (2022 LT1 / L86 / L83 | 2020 - 2024 Corvette C8) - SLUG0-2022
0° Lockout Phaser Limiter Plug for 2022+ LT Engines & C8 Corvette
The GPI Gen 5 LT 0° Phaser Limiter Plug is engineered specifically for 2022+ LT1, L86, L83 applications and the 2020 - 2024 Corvette C8. This plug-only option is ideal for builders and shops who already own the GPI phaser tool and spring lock tool but require an additional or replacement limiter plug. Designed to fully eliminate VVT movement, this 0-degree lockout provides maximum camshaft stability for high-lift camshaft installations.
As with all GPI-exclusive phaser solutions, the SLUG0-2022 plug directly addresses the well-known cam timing instability issues that plague Gen 5 LT engines under high RPM and elevated oil temperatures.
The Gen 5 LT Cam Timing Problem
After extensive real-world testing and countless cam installs, GPI discovered that Gen 5 LT engines suffer from uncontrolled camshaft timing behavior during high-RPM operation. When retarding cam timing near the top of the RPM range, GPI regularly observed:
- Severe discrepancies between commanded and actual timing
- Uncommanded timing retard - even when the ECM requested none
- Timing drift worsening with increased oil temperature
- As much as 8 - 10 degrees of unintended retard
- Falling top-end power after several wide-open pulls
These issues create dangerous piston-to-valve clearance scenarios, inconsistent dyno results, and degraded performance - especially noticeable in high-output applications like the C8 Corvette.
The Solution: GPI 0° Phaser Lockout Plug
The 0-degree limiter plug eliminates the factory VVT system's full range of motion, providing a fixed cam position for maximum timing stability. This lockout prevents:
- Runaway timing behavior
- Heat-induced cam timing drift
- Unpredictable high-RPM power loss
The result is consistent, safe operation with large camshafts and aggressive valve events - perfect for high-performance LT builds and C8 applications requiring precise timing control.
How the Gen V VVT System Works
Gen V LT engines use computer-controlled cam phasers with solenoid-regulated oil flow to advance or retard camshaft timing. While excellent for factory efficiency, this system becomes problematic when installing aftermarket cams due to:
- A wide phaser travel range
- Minimal piston-to-valve clearance
- Sensitivity to oil pressure and temperature
A limiter plug is essential to achieve stable, predictable timing for performance builds.
Performance Benefits
- Full 0-degree VVT lockout for maximum timing stability
- Prevents cam timing drift under heat and RPM
- Ideal for aggressive camshaft builds in LT1, L86, L83, and C8 LT2
- Improves top-end power consistency
- Plug-only version for shops with existing GPI tools
Fitment
Chevrolet Corvette C8 - LT2
- 2020 Chevrolet Corvette C8
- 2021 Chevrolet Corvette C8
- 2022 Chevrolet Corvette C8
- 2023 Chevrolet Corvette C8
- 2024 Chevrolet Corvette C8
Quick Specs
- Application: 2022+ LT1 / L86 / L83 & 2020 - 2024 C8 Corvette
- Limiter Type: 0-degree cam phaser lockout plug
- Includes: Plug only (phaser tools not included)
- Purpose: Eliminates VVT travel for full cam timing control
- Part Number: SLUG0-2022
FAQs
Why choose a 0° lockout for LT engines?
A full lockout is recommended for large camshaft profiles where even limited VVT movement can compromise piston-to-valve clearance and tuning stability - especially crucial in high-RPM builds.
Is this compatible with the phaser and spring lock tools I already own?
Yes. This is a plug-only option intended for builders who already have the complete GPI tool set.
