GPI Gen 5 LT VVT Cam Phaser Limiter Kits - 0 Degree (LT1 / L86 / L83 | 2020 - 2024 C8 Corvette) - LT1LMTR0-2022
High-Performance Phaser Limiter Kit for Gen 5 LT Engines & C8 Corvette
The GPI Gen 5 LT VVT Cam Phaser Limiter Kit is a GPI-exclusive solution engineered to correct the well-documented cam control issues found in LT1, L86, and L83 engines - including their application in the 2020 - 2024 C8 Corvette. After performing countless cam installs and extensive real-world testing, GPI diagnosed the root cause of inconsistent cam timing and built a complete, proven fix.

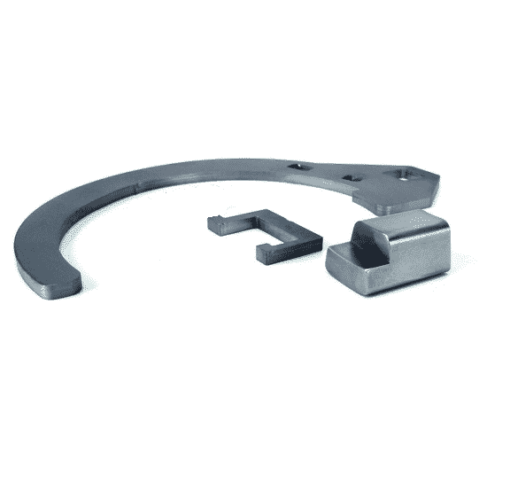

This 0° phaser limiter kit includes everything needed for proper VVT control on performance cam setups:
- GPI Cam Phaser Tool
- GPI Cam Phaser Spring Lock Tool
- 0° Cam Phaser Limiter Plug
The Gen 5 LT Cam Control Issue
During high-RPM operation - especially when retarding cam timing - GPI discovered significant variation between commanded and actual cam position. In some cases, timing would retard even when not commanded. As oil temperature increased, the problem worsened, often resulting in:
- Unwanted timing retard between 8° - 10°
- Loss of top-end power after multiple pulls
- Run-to-run inconsistency on the dyno and at the track
These issues directly impact performance, especially in vehicles like the C8 Corvette where maintaining repeatable power is crucial.
The GPI Solution: Limit VVT Travel, Stabilize Camshaft Control
The GPI Phaser Limiter Kit restricts cam phaser movement to a controlled 4° maximum range, eliminating the runaway timing behavior that plagues Gen 5 LT engines. By stabilizing the timing system, performance becomes dramatically more consistent under all conditions - including high heat and repeated wide-open-throttle operation.
This ensures strong, predictable power at the top of the RPM range while maintaining excellent street manners, low-RPM torque, and drivability.
How the Factory VVT System Works
GM Gen V engines use computer-controlled cam gears (phasers) to continually adjust valve timing. Engine oil is routed through the cylinder heads and camshaft to feed the phaser chambers, and the ECM controls solenoids that regulate timing advance or retard.
While great for efficiency and stock performance, the *wide VVT range* severely limits aggressive camshaft profiles due to reduced piston-to-valve clearance. A phaser limiter becomes essential when stepping up to performance camshafts.
Performance Benefits
- Eliminates runaway cam timing at high RPM
- Allows safe use of larger, performance-oriented camshafts
- Improves high-RPM stability and top-end horsepower
- Maintains excellent bottom-end and mid-range performance
- Ensures consistent performance pull after pull
Fitment
Chevrolet Corvette C8 - LT2
- 2020 Chevrolet Corvette C8
- 2021 Chevrolet Corvette C8
- 2022 Chevrolet Corvette C8
- 2023 Chevrolet Corvette C8
- 2024 Chevrolet Corvette C8
Quick Specs
- Application: Gen 5 LT1 / L86 / L83 & C8 Corvette
- Limiter Type: 0° cam phaser limiter plug
- VVT Travel Restriction: 4° max
- Includes: Phaser tool, spring lock tool, limiter plug
- Primary Benefit: Resolves cam timing drift at high RPM
- Part Number: LT1LMTR0-2022
FAQs
Why is a phaser limiter required for performance cams on LT engines?
Gen V LT engines experience unstable cam timing at high RPM. A limiter stabilizes the VVT system, allowing safe use of performance cams with improved repeatability and power.
Will this affect daily drivability on a C8 Corvette?
No. GPI's limiter kit maintains excellent drivability while dramatically improving upper-RPM consistency and power.
Why Buy from Beefcake Racing?
Beefcake Racing provides proven cam and valvetrain solutions for Gen V LT engines and the C8 Corvette. Whether upgrading street performance or building a track-focused setup, our team delivers the parts and expertise needed for flawless results.
