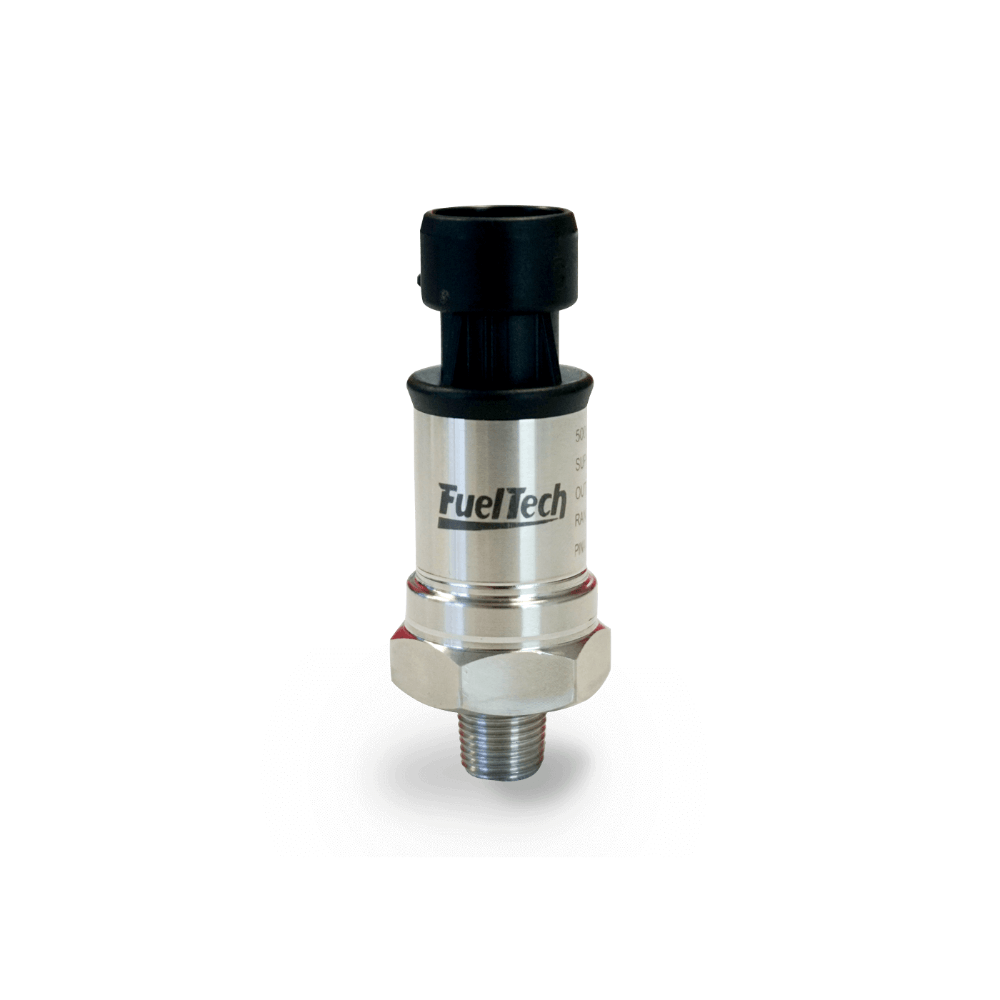

FuelTech External MAP Sensor - 10 BAR - Stainless Steel - 5005100190
10 Bar External MAP Sensor for High-Boost and Extreme Performance Applications
The FuelTech External MAP Sensor - 10 BAR is designed for high-performance engines that exceed the limits of standard internal MAP sensors. Capable of measuring up to 135.3 PSI of boost pressure, this sensor delivers the critical intake manifold data needed for accurate fueling and engine control in extreme conditions.
Whether you're running a turbocharged or supercharged setup, this sensor provides precise manifold air pressure readings, allowing your ECU to maintain the optimal air to fuel ratio for efficient combustion and maximum power output.
Upgrade Beyond Internal MAP Sensor Limits
All FuelTech PowerFT ECUs include a 7 BAR internal MAP sensor, but high-boost builds often require additional range. The 10 BAR external MAP sensor provides the headroom needed to accurately monitor elevated boost levels.
- Extends MAP measurement beyond internal ECU limits
- Ideal for high-boost turbo and supercharger applications
- Ensures accurate fueling at elevated pressure levels
- Supports advanced tuning and performance optimization
Accurate Signal Output for ECU Integration and Data Logging
Featuring a 0.5-4.5V linear analog output, this sensor integrates seamlessly with FuelTech ECUs and most aftermarket standalone engine management systems. The stable signal ensures reliable data logging and precise calibration.
- Consistent signal for accurate ECU input
- Supports real-time boost monitoring and tuning
- Enables precise air to fuel ratio control
- Improves engine safety and performance under boost
Stainless Steel Construction for Maximum Durability
This version features a stainless steel housing, providing superior strength and durability for harsh environments. It is designed to withstand extreme pressure conditions while maintaining consistent performance.
- Stainless steel construction for durability and strength
- Designed for high-pressure intake system monitoring
- Reliable performance in motorsports environments
- 1/8 inch NPT thread for easy installation
Features
- 10 BAR external MAP sensor for high-boost applications
- Measures up to 135.3 PSI of boost pressure
- 0.5-4.5V linear analog output
- Compatible with FuelTech and aftermarket ECUs
- Extends beyond 7 BAR internal MAP sensor limits
- Stainless steel housing for durability
- 1/8 inch NPT thread for universal installation
Quick Specs
- Brand: FuelTech
- Product Type: External MAP Sensor
- Pressure Range: -14.7 psi to +135.3 psi (0-150 psi absolute)
- Output Signal: 0.5-4.5V
- Supply Voltage: 5V
- Thread Size: 1/8 inch NPT
- Material: Stainless Steel
- Applications: Intake manifold pressure and boost monitoring
- Connector Pinout: A - Ground / B - 5V / C - Signal
- Part Number: 5005100190
FAQs
When do I need a 10 BAR MAP sensor?
You need a 10 BAR MAP sensor when your boost levels exceed the range of your ECUs internal MAP sensor, such as in high-boost turbo or supercharged setups.
What does this MAP sensor measure?
It measures intake manifold pressure, allowing your ECU to maintain proper fueling and engine control under boost conditions.
