Calvert Racing CalTracs Traction Bar – 1962–1967 Ford F-100 2WD – Part #7600-300
Built specifically for classic Ford trucks, the Calvert Racing CalTracs Traction Bar is designed for 1962–1967 F-100 2WD models with 3" diameter axle tubes and spring-over-axle setups. This bolt-on traction system features Berlin-style pivot plates and full preload adjustability to eliminate spring wrap-up, reduce axle rotation, and improve 60-foot launch times. Ideal for drag racing, sled pulling, or towing, this kit helps eliminate wheel hop and keeps your rear suspension locked in under load.
If your axle tube measures 3.25", please see CalTracs Part #7600-325.

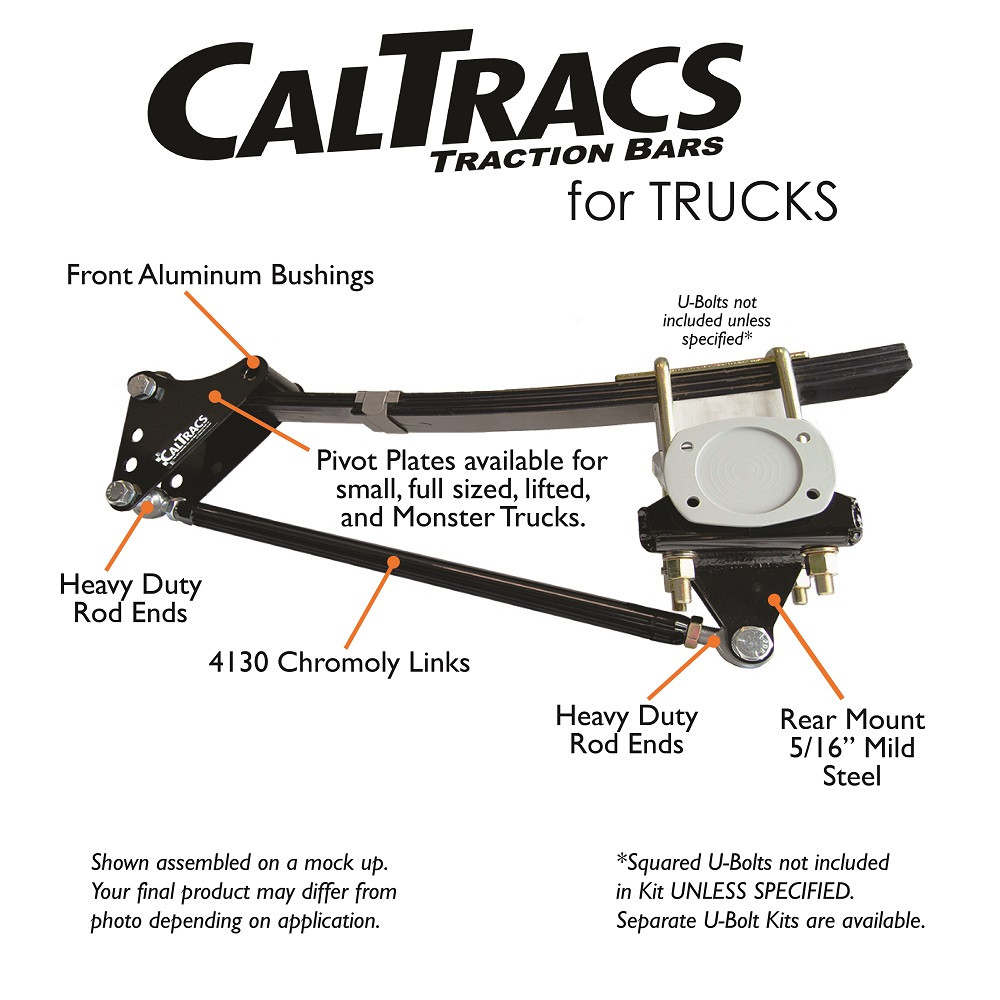

Key Features
- Berlin-style pivot plates for most truck applications
- Axle-under-spring configuration for bolt-on installation
- Chromoly preload link for maximum leverage and minimal flex
- HD Rod Ends rated for over 14,000 lbs radial static load
- Rod ends include grease zerks to reduce chatter and extend service life
- Two-piece aluminum front spring eye bushings for rigid pivot alignment
- Rear mounts made from 5/16” mild steel for secure torque retention
- Black powder coated finish for corrosion resistance
What’s Included
- 2 Rear Mounts (may vary by application)
- 4 Pivot Plates
- 4 Heim Joints / Rod Ends
- 2 Force Transfer Links
- 4 Square U-Bolts (9/16" diameter)
- All required mounting hardware
Installation Notes
- Includes full-color installation guide
- Torque square U-bolts to 90–100 ft-lbs
- Recheck torque after initial track runs
- Product photo may vary depending on application
Why Choose CalTracs?
Since 1995, Calvert Racing has specialized in leaf spring traction systems that deliver unmatched performance and durability. Whether you're launching off the line or hauling heavy loads, CalTracs keeps your truck stable, responsive, and ready for action.
Vehicle Compatibility
- 1962 Ford F-100 2WD w/ 3" axle tube
- 1963 Ford F-100 2WD w/ 3" axle tube
- 1964 Ford F-100 2WD w/ 3" axle tube
- 1965 Ford F-100 2WD w/ 3" axle tube
- 1966 Ford F-100 2WD w/ 3" axle tube
- 1967 Ford F-100 2WD w/ 3" axle tube
