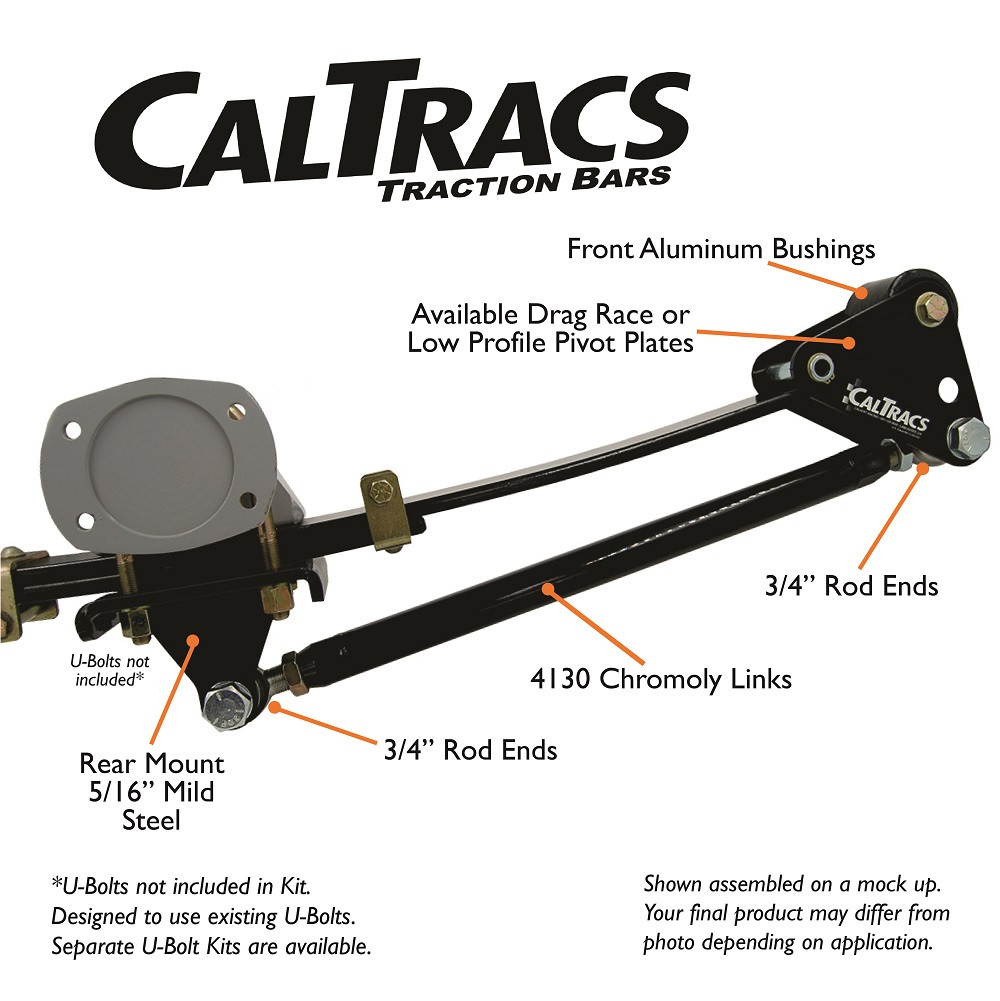

Calvert Racing CalTracs Low Profile Traction Bar – GM F-Body (1970–1981) – Part #2401
Improve street clearance and rear grip with the Calvert Racing CalTracs Low Profile Traction Bar, designed for second-gen GM F-body platforms including 1970–1981 Chevrolet Camaro, Pontiac Firebird, and Trans Am. This bolt-on traction system includes 1-hole low profile pivot plates, offering approximately 1.5" of added ground clearance—ideal for daily drivers and lowered setups. Engineered by racing legend John Calvert, this system helps eliminate axle wrap, maintain pinion angle, and reduce 60-foot times.
Key Features
- Fits Ford 9" rear ends with GM, Ford, or universal spring perches
- Rod ends now include grease zerks to minimize noise and extend service life
- Chromoly preload link offers high strength with minimal flex
- ¾” Heim joints rated for over 14,000 lbs radial static load
- Two-piece aluminum front spring eye bushings maintain pivot alignment
- Rear mounts made from 5/16” mild steel for secure torque retention
- Black powder coated finish for long-lasting durability
What’s Included
- 2 Rear Mounts (may vary by application)
- 4 Low Profile Pivot Plates
- 4 Heim Joints / Rod Ends
- 2 Force Transfer Links
- All required mounting hardware
Additional Notes
- U-bolts are not included but available separately
- Kit is designed to work with your existing leaf springs and U-bolts
- Some applications may require additional hardware
- Includes full-color installation guide
Why Choose CalTracs?
Since 1995, Calvert Racing has led the industry in leaf spring traction systems. The Low Profile series was developed for street-driven builds that need extra clearance without sacrificing performance. Built by racers for racers, CalTracs delivers unmatched adjustability, strength, and launch control.
Vehicle Compatibility:
- 1970 Chevrolet Camaro
- 1971 Chevrolet Camaro
- 1972 Chevrolet Camaro
- 1973 Chevrolet Camaro
- 1974 Chevrolet Camaro
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
- 1970 Pontiac Trans Am
- 1971 Pontiac Trans Am
- 1972 Pontiac Trans Am
- 1973 Pontiac Trans Am
- 1974 Pontiac Trans Am
- 1975 Pontiac Trans Am
- 1976 Pontiac Trans Am
- 1977 Pontiac Trans Am
- 1978 Pontiac Trans Am
- 1979 Pontiac Trans Am
- 1980 Pontiac Trans Am
- 1981 Pontiac Trans Am
