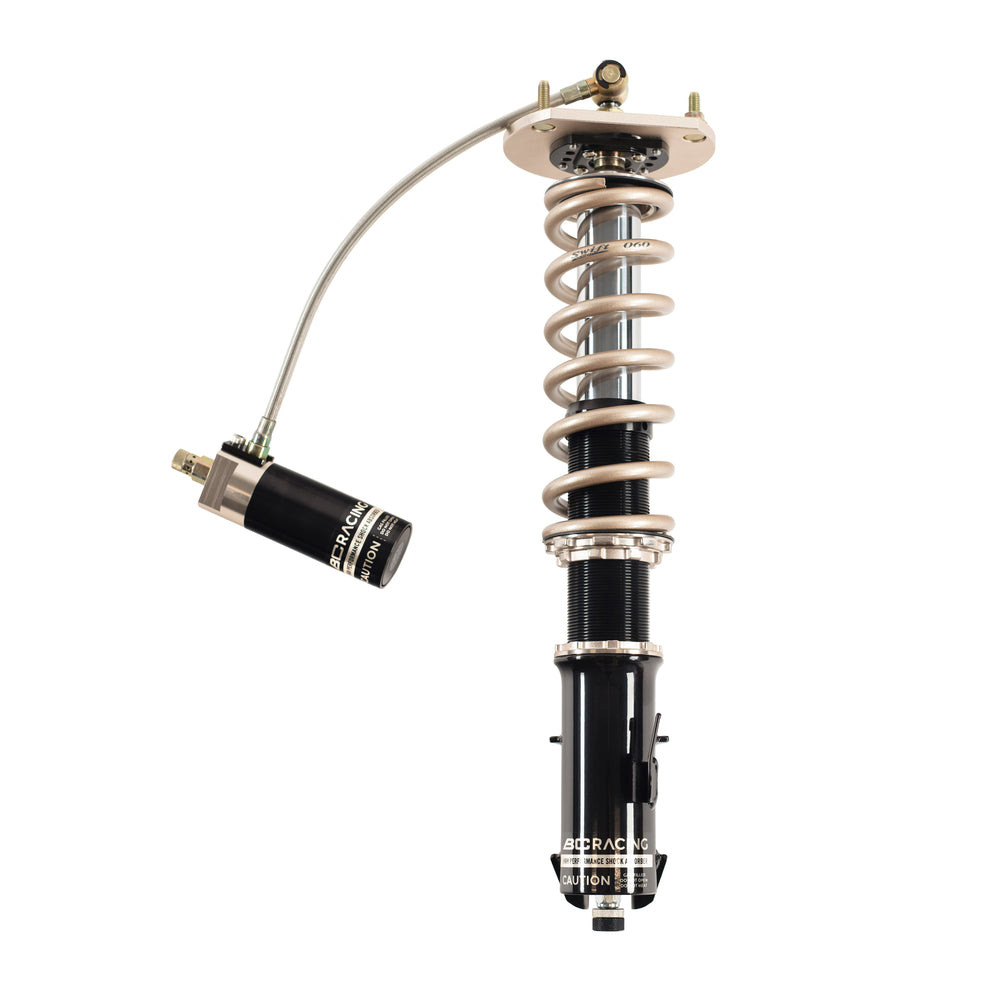

BC Racing HM Series Coilover System (2022 - 2025 Subaru WRX - VB) - F-38-HM
Inverted, Track-Ready Coilovers for the 2022 - 2025 Subaru WRX VB
Unlock exceptional chassis control for your 2022 - 2025 Subaru WRX (VB) with the BC Racing HM Series Coilover System. Developed by blending the top features of BC's RM and ER Series, the HM Series delivers inverted mono-tube dampers for superior rigidity and reduced unsprung weight, while incorporating independent 30-way compression and rebound adjustment for elite-level tuning. Purpose-built for McPherson-strut Subarus that see aggressive canyon driving or heavy track time, the HM Series includes external reservoirs, steel-braided reservoir lines, and Swift Springs standard, giving VB WRX owners a highly capable, highly durable suspension system designed for serious performance.
Performance Highlights
- Fully inverted mono-tube damper design increases strength and reduces strut flex during high-load cornering.
- 30-way independent compression and rebound adjustability for precise suspension tuning.
- External reservoirs expand oil capacity and maximize thermal dissipation under extreme use.
- Steel-braided reservoir lines ensure long-term durability and consistent fluid transfer.
- Swift Springs included standard for reduced sag, improved linearity, and sharper response.
- Independent height adjustment maintains full damper stroke at any ride height.
- Front and rear camber plates included where applicable for exacting alignment control.
- Pillowball mounts included where camber plates do not apply for enhanced steering feedback.
- Custom valving available to match your preferred spring rates or driving needs.
- Fully rebuildable and backed by a 2-year manufacturer warranty.
Quick Specs
- Brand: BC Racing
- Series: HM Series
- Part Number: F-38-HM
- Vehicle Fitment: 2022 - 2025 Subaru WRX (VB)
- Damper Design: Fully inverted mono-tube with external reservoirs
- Compression Adjustment: 30-way via external reservoir
- Rebound Adjustment: 30-way via bottom of damper
- Height Adjustment: Independent of spring preload
- Default Spring Rates: Front 6.5kg/mm | Rear 6kg/mm
- Springs Included: Swift Springs (standard)
- Camber Plates: Front and rear included where applicable
- Mount Type: Pillowball mounts when camber plates do not apply
- Warranty: 2 Years (Manufacturer Defect)
- Rebuildable: Yes
Why Choose BC Racing HM Series Coilovers?
If you want your VB-chassis WRX to handle with sharper response, greater stability, and superior consistency under hard driving, the HM Series is the upgrade to choose. With inverted dampers, independent damping control, and Swift Springs, this setup improves feedback and reduces fade - whether you're carving back roads, daily driving, or pushing hard at the track. Built for the demands of McPherson-strut Subarus, the HM Series offers elite performance and long-term reliability.
FAQs
What makes the HM Series different from the ER Series?
The HM Series adds a fully inverted mono-tube damper for increased rigidity and reduced unsprung weight, while still providing independent compression and rebound tuning like the ER Series.
Do HM Series coilovers come with Swift Springs?
Yes. Swift Springs are included standard for better consistency, quicker response, and reduced spring fatigue.
Is this setup good for street driving as well as track use?
Absolutely. The HM Series can be softened for comfortable daily driving or firmed up for intense track use thanks to its wide damping range.
Can BC Racing custom-valve these for different spring rates?
Yes. BC Racing offers custom valving to match your chosen spring rates or performance goals.
Fitment
- 2022 Subaru WRX (VB)
- 2023 Subaru WRX (VB)
- 2024 Subaru WRX (VB)
- 2025 Subaru WRX (VB)
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized BC Racing dealer offering expert technical support, fast shipping, and competitive pricing. Whether your VB WRX is built for back-road fun, daily comfort, or full track performance, our team will help you choose the ideal HM Series configuration. Contact us at sales@beefcakeracing.com or call 1-855-827-7223. Beefcake Racing - Performance Starts Here.
