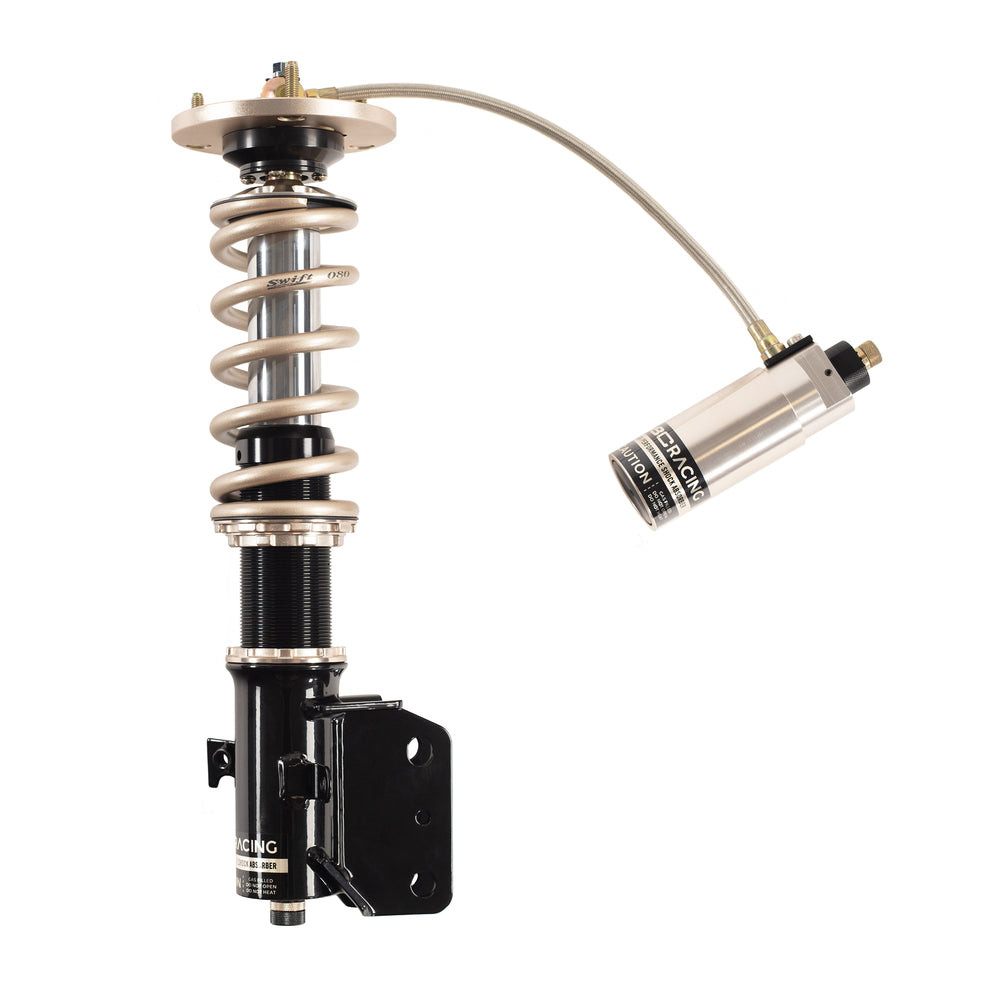

BC Racing ZR Series Coilover System (2013 - 2025 BRZ / FRS / 86 - ZC6 / ZD8 / ZN6 / ZN8) - F-20-ZR
The Highest Level of Coilover Adjustability for the BRZ, FRS & GR86
Transform the handling of your 2013 - 2025 Subaru BRZ, Scion FRS, or Toyota 86 with the BC Racing ZR Series Coilover System - BC's most advanced, most adjustable suspension platform. Designed specifically for racers and serious canyon/track enthusiasts, the ZR Series delivers three-way damping control with 15-click low-speed compression, 12-click high-speed compression, and 30-click rebound adjustment. Unlike ER or HM Series coilovers, the ZR Series provides the fine-grained control needed to perfect chassis behavior under every condition. Double-wishbone and strut-equipped variants are both supported, with inverted mono-tube dampers supplied where the chassis allows. Swift Springs come standard, and full ride-height adjustment is independent of spring preload to preserve shock stroke and geometry.
Performance Highlights
- Inverted mono-tube dampers included where applicable for maximum rigidity and reduced unsprung weight.
- 15-click low-speed compression adjustment optimizes corner entry, roll control, and chassis balance.
- 12-click high-speed compression tuning fine-tunes bump/impact response and curb-strike compliance.
- 30-click rebound adjustment allows precise control over damper recovery.
- External remote reservoirs increase oil capacity for superior heat dissipation during hard lapping sessions.
- Steel-braided reservoir lines or solid stems depending on strut or A-arm configuration.
- Swift Springs included standard for lightweight, consistent rate control and improved responsiveness.
- Independent height adjustment preserves full shock travel at any lowered stance.
- Front and rear camber plates included on applicable kits for alignment-focused builds.
- Pillowball mounts included on models where camber plates are not applicable.
- Custom spring rates & custom valving available for time-attack, drift, or competitive track setups.
- Fully rebuildable and protected by a 2-year manufacturer defect warranty.
Quick Specs
- Brand: BC Racing
- Series: ZR Series
- Part Number: F-20-ZR
- Vehicle Fitment: 2013 - 2025 BRZ / FRS / Toyota 86 (ZC6 / ZD8 / ZN6 / ZN8)
- Damper Design: Mono-tube (inverted where applicable), linear twin-piston
- Rebound Adjustment: 30-clicks
- Low-Speed Compression: 15-clicks
- High-Speed Compression: 12-clicks
- Height Adjustment: Independent of spring preload
- Springs: Swift Springs included
- Default Spring Rates: Front 8kg/mm | Rear 8kg/mm
- Camber Plates: Front & rear included where applicable
- Mount Type: Pillowball mounts when camber plates do not apply
- Warranty: 2 Years (Manufacturer Defect)
- Rebuildable: Yes
Why Choose BC Racing ZR Series Coilovers?
Whether you're building a time-attack BRZ, a drift-prepped FRS, or a track-tuned GR86, the ZR Series provides the most complete damping control BC Racing has ever offered. With independent high- and low-speed compression, expansive rebound tuning, Swift Springs, remote reservoirs, and competition-ready construction, the ZR Series delivers superior heat resistance, sharp chassis response, and race-level adjustability. For drivers who want total command over their ZC6/ZD8/ZN6/ZN8 chassis, this is the ultimate coilover upgrade.
FAQs
How does the ZR Series differ from the ER or HM Series?
The ZR Series adds three-way adjustable damping - high-speed compression, low-speed compression, and rebound - offering significantly more tuning capability than the ER or HM Series.
Do these include inverted dampers for the BRZ/FRS/86?
Where the chassis allows, the kit includes inverted mono-tube dampers; double A-arm configurations receive upright dampers with remote reservoirs.
Are Swift Springs included?
Yes. Swift Springs come standard on every ZR Series coilover system.
Can I request custom spring rates or valving?
Absolutely. BC Racing offers custom valving and custom spring rates tailored for drift, grip, or competition builds.
Fitment
- 2013 Subaru BRZ (ZC6)
- 2014 Subaru BRZ (ZC6)
- 2015 Subaru BRZ (ZC6)
- 2016 Subaru BRZ (ZC6)
- 2017 Subaru BRZ (ZC6)
- 2018 Subaru BRZ (ZC6)
- 2019 Subaru BRZ (ZC6)
- 2020 Subaru BRZ (ZC6)
- 2021 Subaru BRZ (ZC6)
- 2022 Subaru BRZ (ZD8)
- 2023 Subaru BRZ (ZD8)
- 2024 Subaru BRZ (ZD8)
- 2025 Subaru BRZ (ZD8)
- 2013 Scion FRS (ZN6)
- 2014 Scion FRS (ZN6)
- 2015 Scion FRS (ZN6)
- 2016 Scion FRS (ZN6)
- 2017 Toyota 86 (ZN6)
- 2018 Toyota 86 (ZN6)
- 2019 Toyota 86 (ZN6)
- 2020 Toyota 86 (ZN6)
- 2021 Toyota 86 (ZN6)
- 2022 Toyota GR86 (ZN8)
- 2023 Toyota GR86 (ZN8)
- 2024 Toyota GR86 (ZN8)
- 2025 Toyota GR86 (ZN8)
