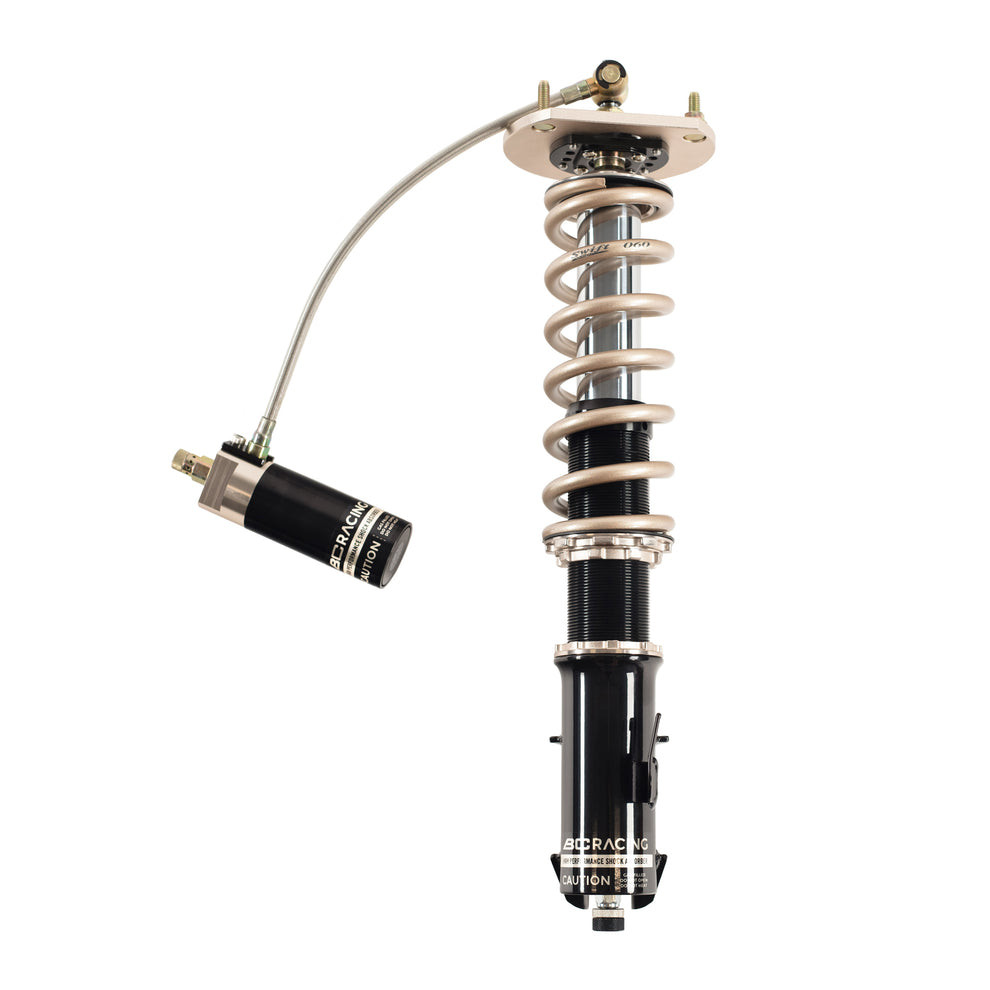

BC Racing HM Series Coilover System (2002 - 2007 Subaru Impreza WRX - GDA / GDB) - F-02-HM
Hybrid Performance for Track-Focused Subaru WRX Builds
Unlock serious suspension performance for your 2002 - 2007 Subaru Impreza WRX (GDA / GDB) with the BC Racing HM Series Coilover System - a hybrid design that blends the best attributes of the RM and ER Series. The HM Series uses a fully inverted mono-tube damper for superior rigidity and reduced unsprung weight, while incorporating the independent compression and rebound adjustability found in the ER Series. With external reservoirs, steel-braided lines, and Swift Springs included as standard equipment, the HM Series is engineered specifically for high-performance Subaru applications and heavy track use.
Performance Highlights
- Inverted mono-tube damper design reduces unsprung weight and increases structural rigidity.
- Independent 30-way compression and rebound adjustment for maximum suspension tuning flexibility.
- External reservoirs offer increased oil capacity and improved thermal dissipation under extended use.
- Steel-braided reservoir lines provide durability and consistent fluid transfer.
- Swift Springs included as standard for enhanced linearity, consistency, and performance.
- Independent height adjustment maintains full damper stroke regardless of ride height settings.
- Front and rear camber plates included where applicable for precise alignment adjustment.
- Pillowball mounts used on non-camber-plate kits for sharper steering response and improved feedback.
- Custom valving available to optimize performance with chosen spring rates.
- Fully rebuildable and protected by a 2-year manufacturer warranty.
Quick Specs
- Brand: BC Racing
- Series: HM Series
- Part Number: F-02-HM
- Vehicle Fitment: 2002 - 2007 Subaru Impreza WRX (GDA / GDB)
- Damper Design: Inverted mono-tube with external reservoirs
- Compression Adjustment: 30-way via external reservoirs
- Rebound Adjustment: 30-way via bottom of damper
- Height Adjustment: Independent of spring preload
- Default Spring Rates: Front 6kg/mm | Rear 4kg/mm
- Springs Included: Swift Springs (standard)
- Camber Plates: Front and rear included where applicable
- Mount Type: Pillowball mounts when camber plates do not apply
- Warranty: 2 Years (Manufacturer Defect)
- Rebuildable: Yes
Why Choose BC Racing HM Series Coilovers?
The HM Series combines the rugged strength of inverted dampers with the high-level adjustability of remote-reservoir coilovers. This makes it an exceptional option for track enthusiasts, autocross drivers, and high-performance Subaru builds that demand both rigidity and tuning precision. With Swift Springs included and a system engineered specifically for McPherson-strut vehicles, the HM Series delivers superior heat control, sharp driver feedback, and elite damping consistency.
FAQs
What makes the HM Series different from the ER Series?
The HM Series uses inverted mono-tube dampers for greater rigidity and reduced unsprung weight, while still offering the independent compression and rebound adjustability found in the ER Series.
Are Swift Springs really included?
Yes. Unlike other BC Racing lines, the HM Series comes standard with Swift Springs for superior performance and durability.
Is the HM Series good for daily driving?
While track-focused, the HM Series can be dialed in for comfortable street use thanks to its wide damping adjustment range.
Can I request custom valving?
Absolutely. BC Racing offers custom valving tailored to your requested spring rates or specific driving needs.
Fitment
- 2002 Subaru Impreza WRX (GDA / GDB)
- 2003 Subaru Impreza WRX (GDA / GDB)
- 2004 Subaru Impreza WRX (GDA / GDB)
- 2005 Subaru Impreza WRX (GDA / GDB)
- 2006 Subaru Impreza WRX (GDA / GDB)
- 2007 Subaru Impreza WRX (GDA / GDB)
