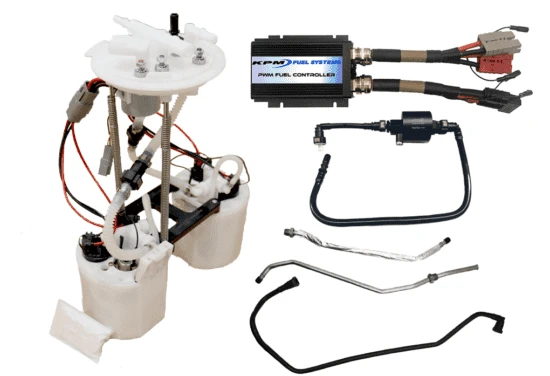

KPM 2200 HP Fuel System w/ PWM Control Module
2018–2026 Ford F-150 | AUP-KPMF150-2200PWM-P
Extreme Fuel Supply for High-Powered F-150 Builds
The KPM 2200 HP Fuel System with PWM Control Module is one of the most advanced direct-fit fuel system upgrades available for the 2018–2026 Ford F-150. Designed to support everything from mildly modified trucks to extreme high-horsepower builds, this complete system delivers the fuel volume, efficiency, and reliability needed to safely support up to 2200 horsepower at the crankshaft on gasoline.
As modern F-150 platforms are pushed to incredible power levels with forced induction and aggressive tuning, the factory fuel system quickly becomes a limiting factor. KPM solves this problem with a fully engineered, OEM-style solution that delivers massive fuel supply while maintaining proper fuel temperature and reliability for both street and race applications.
Dual In-Tank Fuel Modules with Bosch Racing Pumps
At the heart of the system are two high-flow in-tank fuel modules utilizing three Bosch Racing fuel pumps. The primary KPM1500 module houses two pumps, while the secondary KPM1000 module contains a single pump. Both modules mount directly inside the fuel tank in an OEM-style configuration, allowing the pumps to remain submerged for improved cooling and long-term reliability.
This configuration delivers the massive fuel flow required to support 2200 HP builds, while maintaining factory-style installation and ease of fitment.
Advanced Venturi System Prevents Fuel Starvation
To ensure reliable fuel supply under extreme conditions, KPM engineered a six Venturi pump and refill valve system that continuously scavenges fuel within the tank and keeps both fuel canisters full. This prevents fuel starvation or surge during aggressive acceleration, track use, or high-load racing environments.
The result is a constant supply of cool, dense fuel that supports consistent engine performance under both daily driving and racing conditions.
Intelligent PWM Fuel Pump Control
The included KPM PWM Fuel Module Controller electronically manages fuel pump operation based on engine demand. By monitoring fuel pressure across all engine loads, the controller adjusts electrical current to the pumps and delivers exactly the amount of fuel required.
System operation is designed to maximize efficiency:
-
Primary Module (KPM1500) runs continuously
-
Secondary Module (KPM1000) activates only when additional fuel demand is required
By reducing unnecessary pump current, the system generates less heat in the fuel tank. Less pump current means cooler fuel, and cooler fuel means better performance and reliability.
Direct-Fit Stainless Steel Fuel Line Upgrade
Supporting extreme horsepower requires significantly more fuel flow than factory fuel lines can provide. KPM includes a complete direct-fit stainless steel fuel line upgrade kit using ½-inch pre-formed stainless steel lines that replace the restrictive OEM lines.
These lines install using OEM-style EFI click-fit connectors, eliminating the need for cutting, custom fittings, or complicated fabrication.
High-Performance Serviceable Fuel Filter
Included in the system is the KPM 2200 HP fuel filter, featuring an anodized aluminum housing and a 10-micron stainless steel lifetime filter element. The filter is fully serviceable and designed for long-term use without needing replacement.
The fuel lines, filter housing, and stainless filter element are fully compatible with gasoline, ethanol, methanol, and race fuels.
What’s Included
-
KPM1500 in-tank fuel module (Primary – dual pumps)
-
KPM1000 in-tank fuel module (Secondary – single pump)
-
KPM PWM Fuel Module Controller
-
Stainless steel fuel line upgrade kit
-
KPM 2200 HP fuel filter assembly
-
High-amperage relay and wiring kit
-
Installation and calibration instructions
Key Features
-
Supports up to 2200 HP at the crankshaft
-
Direct-fit system for 2018–2026 Ford F-150
-
Dual in-tank fuel modules with 3 Bosch Racing fuel pumps
-
Advanced PWM fuel pump controller
-
Six Venturi pump system prevents fuel starvation
-
½" stainless steel fuel line upgrade kit
-
Serviceable 10-micron lifetime stainless steel fuel filter
-
Compatible with gasoline, ethanol, methanol, and race fuels
-
OEM-style installation with EFI click-fit connections
Vehicle Fitment
-
2018 Ford F-150
-
2019 Ford F-150
-
2020 Ford F-150
-
2021 Ford F-150
-
2022 Ford F-150
-
2023 Ford F-150
-
2024 Ford F-150
-
2025 Ford F-150
-
2026 Ford F-150
Important Notes
-
Horsepower ratings are measured at the crankshaft on gasoline, following industry standards that remove drivetrain loss variables.
-
Maintaining adequate fuel levels during racing is recommended to further minimize the risk of fuel surge or starvation.
-
Professional installation and calibration are recommended for high-performance applications.
If you’re building a serious high-horsepower F-150 and need a fuel system capable of delivering massive fuel volume with OEM-level reliability, the KPM 2200 HP Fuel System with PWM Control Module provides the fuel delivery and precision control required for extreme power levels.
