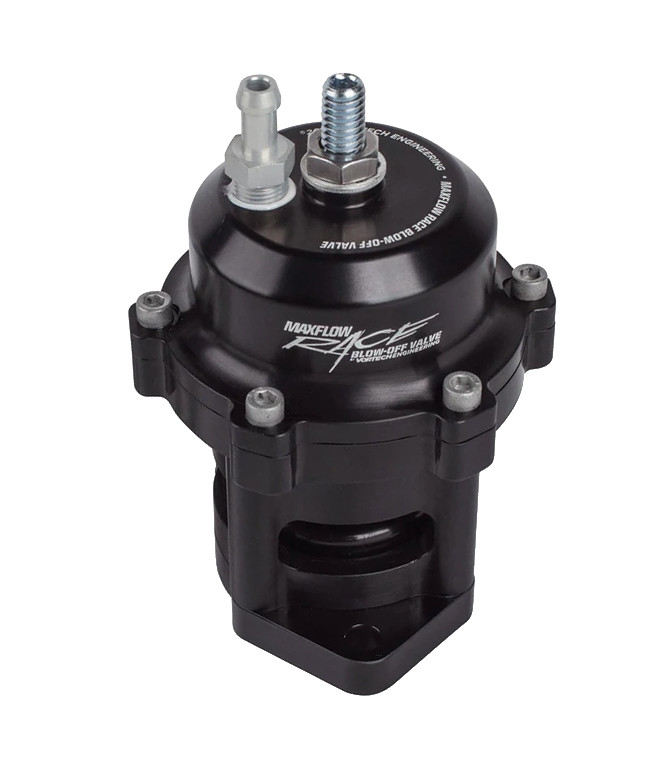

Vortech Maxflow Race Blow-Off Valve - Black Anodized 8D204-111
Black Anodized Maxflow Race Blow-Off Valve for High-Performance Builds
The Vortech Maxflow Race Blow-Off Valve (PN 8D204-111) is engineered for high-performance forced induction applications that demand fast response, compact packaging, and a distinctive blow-off sound. Flowing 320 CFM at 8 PSIG, this Race BOV delivers excellent pressure relief in a compact form factor, making it ideal for vehicles with tight engine compartments.
While equally capable in performance to Vortech's Race Bypass Valve, the Race Blow-Off Valve features a 360-degree discharge design that produces a noticeably louder and more aggressive blow-off sound during throttle lift. This makes it a popular choice for enthusiasts who want both function and audible feedback from their boost system.
Maxflow Race Valve Design
The Maxflow Race Blow-Off Valve is preset to open at three to four inches of vacuum, ensuring rapid pressure relief and stable boost control during throttle transitions. Its compact, high-flow internal design allows it to outperform other valves of similar size while maintaining consistent operation under repeated boost events.
Performance & Capability
- Flow Rating: 320 CFM at 8 PSIG
- Discharge Style: 360-degree vent-to-atmosphere blow-off
- Sound Profile: Loud, aggressive blow-off sound
- Vacuum Setting: Preset to open at 3-4 inches of vacuum
Installation Compatibility
This Race Blow-Off Valve is designed to retrofit standard HKS / Greddy-style mounting pads, making it an easy upgrade for many existing turbocharged and supercharged setups. An installation gasket is included. Some applications may require a weld-on flange, which is sold separately.
Finish Options
This version features a durable black anodized finish for a stealthy, race-inspired appearance. Vortech also offers this valve in a clear anodized finish to suit different engine bay styles.
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 8D204-111
- Product Type: Maxflow Race Blow-Off Valve
- Flow Capacity: 320 CFM @ 8 PSIG
- Discharge Style: Vent-to-atmosphere, 360-degree
- Vacuum Opening Point: 3-4 inches of vacuum (preset)
- Finish: Black Anodized
- Mounting Style: HKS / Greddy-style flange
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
FAQs
- What makes this a blow-off valve instead of a bypass valve?
This valve vents boost pressure to atmosphere through a 360-degree discharge, producing a louder blow-off sound compared to recirculating bypass valves. - Will this fit HKS or Greddy-style flanges?
Yes. It is designed to retrofit standard HKS / Greddy-style mounting pads. Some setups may require a weld-on flange sold separately.
