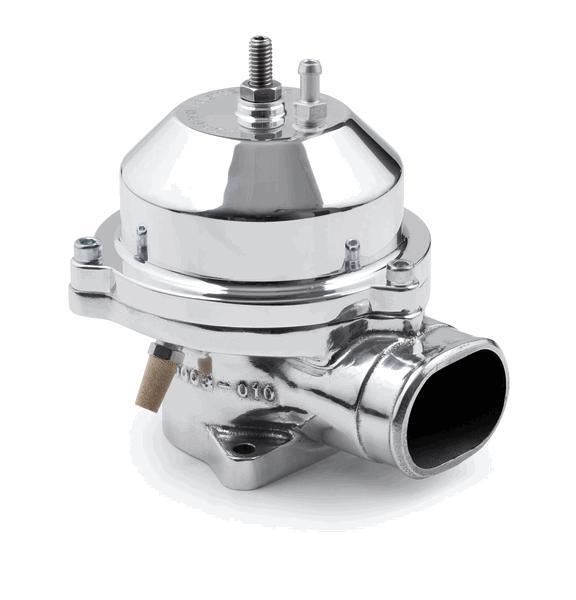

Vortech Maxflow Mondo Bypass Valve - Polished 8D103-008
Polished Maxflow Mondo High-Flow Bypass Valve for High-Boost Builds
The Vortech Maxflow Mondo Bypass Valve (PN 8D103-008) is engineered for high-boost forced induction applications where airflow demand exceeds the limits of standard bypass valves. With an impressive 550+ CFM flow rating at 10 PSIG, the Mondo valve is recommended for systems producing more than 12 PSIG and is mandatory for any supercharger system using a cog drive belt.
This version features a durable, high-visibility polished finish for a clean, performance-focused engine bay while delivering the same proven pressure-relief performance relied on in aggressive street, strip, and race applications.
High-Flow Bypass Valve Technology
Designed to handle extreme airflow without restriction, the Maxflow Mondo Bypass Valve efficiently vents excess boost during throttle lift. This reduces compressor surge, stabilizes boost control, and helps protect supercharger or turbocharger components under rapid throttle transitions and sustained high-load operation.
Performance & Capability
- Flow Rating: 550+ CFM at 10 PSIG
- Recommended Boost: Applications exceeding 12 PSIG
- Required Use: Mandatory for cog belt drive supercharger systems
- Pressure Relief: Smooth, consistent venting during throttle lift
Universal Installation Flexibility
The Maxflow Mondo Bypass Valve is adaptable to supercharged and turbocharged installations and can be mounted at virtually any angle, making it ideal for custom plumbing layouts on high-horsepower builds.
Connection Details
- Inlet Diameter: 2.0" (51 mm)
- Outlet Connection: 2.0" hose
- Mounting Orientation: Universal
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 8D103-008
- Product Type: Maxflow Mondo Bypass Valve
- Flow Capacity: 550+ CFM @ 10 PSIG
- Recommended Boost Level: Over 12 PSIG
- Finish: Polished
- Inlet Size: 2.0" (51 mm)
- Outlet Size: 2.0"
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
FAQs
- When is the Mondo Bypass Valve required?
It is required for any supercharger system using a cog drive belt and recommended for applications exceeding 12 PSIG. - Can this valve be used on turbocharged systems?
Yes. The Maxflow Mondo valve is compatible with both supercharged and turbocharged setups and supports custom mounting angles.
