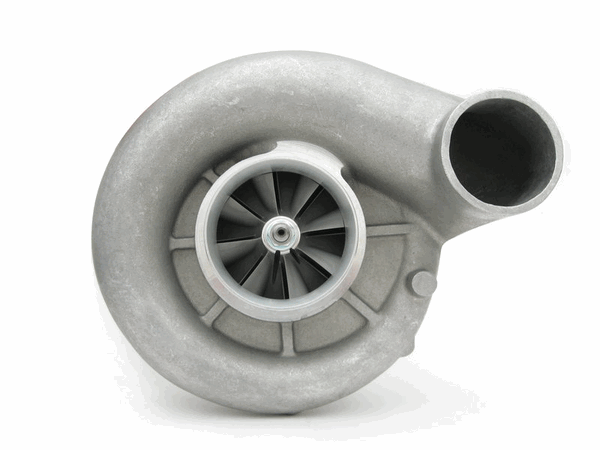

Paxton Superchargers NOVI-2000 Race - Straight Discharge - Satin 8001405
Satin NOVI-2000 Race Centrifugal Supercharger Head Unit
The Paxton Superchargers NOVI-2000 Race Head Unit (PN 8001405) is a purpose-built centrifugal supercharger engineered specifically for competition and dedicated race applications where maximum airflow, sustained boost capability, and mechanical durability are critical. Featuring a straight discharge configuration and a durable satin finish, the NOVI-2000 Race builds on Paxton's legendary NOVI platform with hardware intended for extreme operating conditions.
At its core, the NOVI-2000 Race utilizes Paxton's race-proven gear case with billet steel, helical-cut gears and aerospace-quality high-speed bearings. A direct-to-gear, constant-circulation oiling system provides consistent lubrication and cooling, even during extended high-RPM, high-boost operation common in drag racing, standing mile, and other motorsports environments.
NOVI-2000 Race Technology
Derived from the original NOVI-2000 that revolutionized the performance industry in 1995, the NOVI-2000 Race is optimized for builders pushing the limits of centrifugal supercharging. Its advanced impeller design and compact scroll housing allow the unit to generate up to 26 PSI of boost while supporting up to 1,000 horsepower in properly engineered race combinations.
The use of helical-cut gears - a hallmark of the NOVI series - helps reduce gear noise while maintaining the strength required for sustained high-load operation.
Performance & Capability
- Maximum Boost: Up to 26 PSI
- Maximum Power: Up to 950 HP
- Maximum Airflow: 1,400 CFM
- Peak Efficiency: 71%
- Maximum Impeller Speed: 55,000 RPM
Unlike street-oriented NOVI systems typically configured for 8-10 PSI, the NOVI-2000 Race is intended for high-output, competition-focused setups where engine internals, fuel system, and tuning are designed to support aggressive boost levels.
Straight Discharge Race Configuration
This version features a straight discharge outlet, making it ideal for custom race plumbing and charge pipe fabrication. The straight discharge layout simplifies packaging in tube-chassis cars and custom engine bays, allowing for efficient airflow routing with minimal restriction.
Key Features
- NOVI-2000 Race centrifugal supercharger design
- Billet steel, helical-cut gear drive for durability under extreme load
- Aerospace-quality high-speed bearings
- Direct-to-gear constant circulation oiling system
- Supports up to 950 horsepower
- Straight discharge outlet for custom race piping
- Satin finish for durability in motorsports environments
Quick Specs
- Manufacturer: Paxton Superchargers
- Part Number: 8001405
- Supercharger Model: NOVI-2000 Race
- Discharge Style: Straight
- Finish: Satin
- Internal Step-Up Ratio: 3.5:1
- Max Speed: 55,000 RPM
- Max Boost: 26 PSI
- Max Flow: 1,400 CFM
- Max Power: 950 HP
- Peak Efficiency: 71%
- Inlet OD: 4.0 inches
- Discharge OD: 3.0 inches
- Inducer Diameter: 3.534 inches
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Not legal for use on emissions-controlled vehicles operated on public roads
